SPECIALIZED

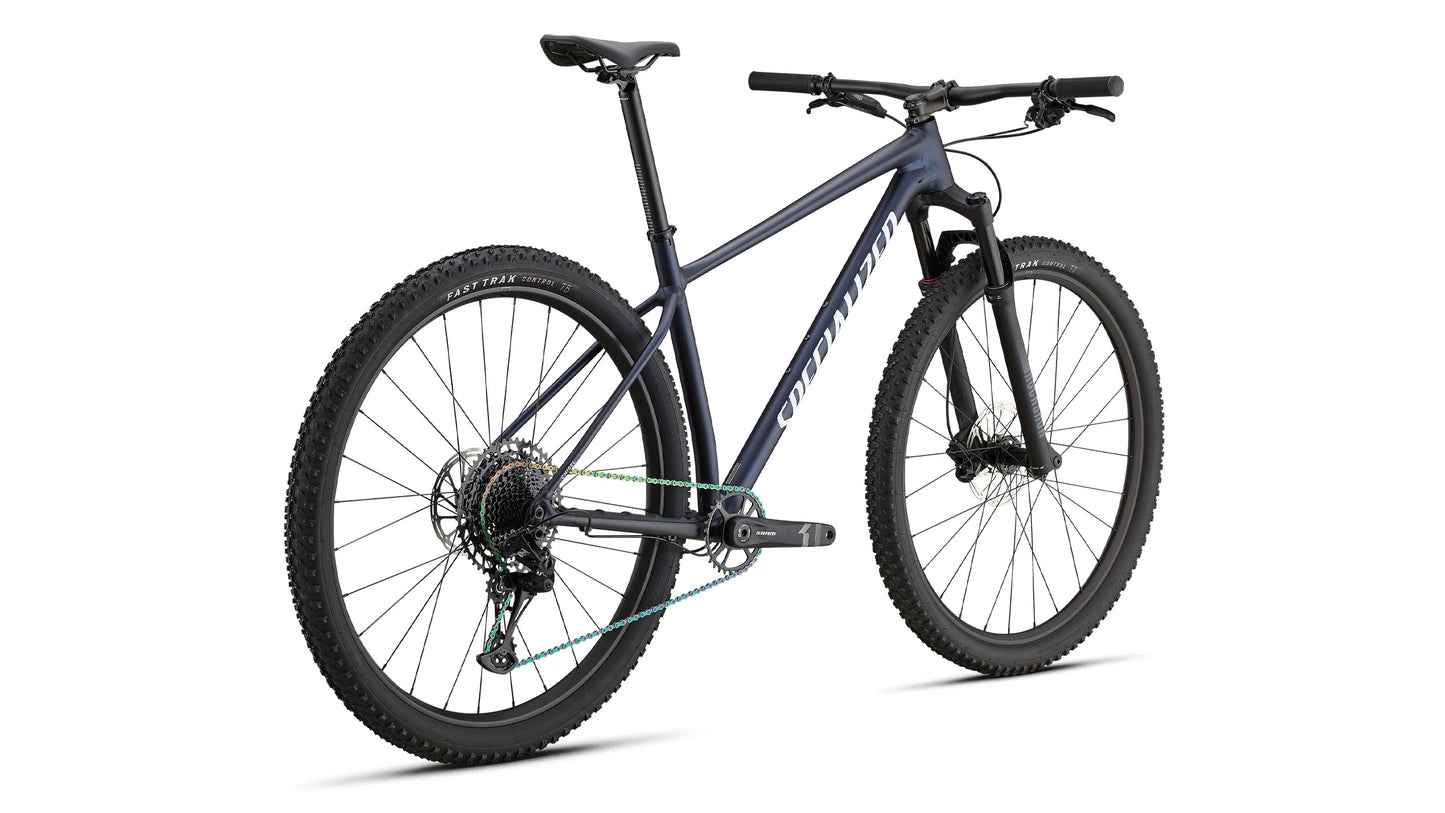

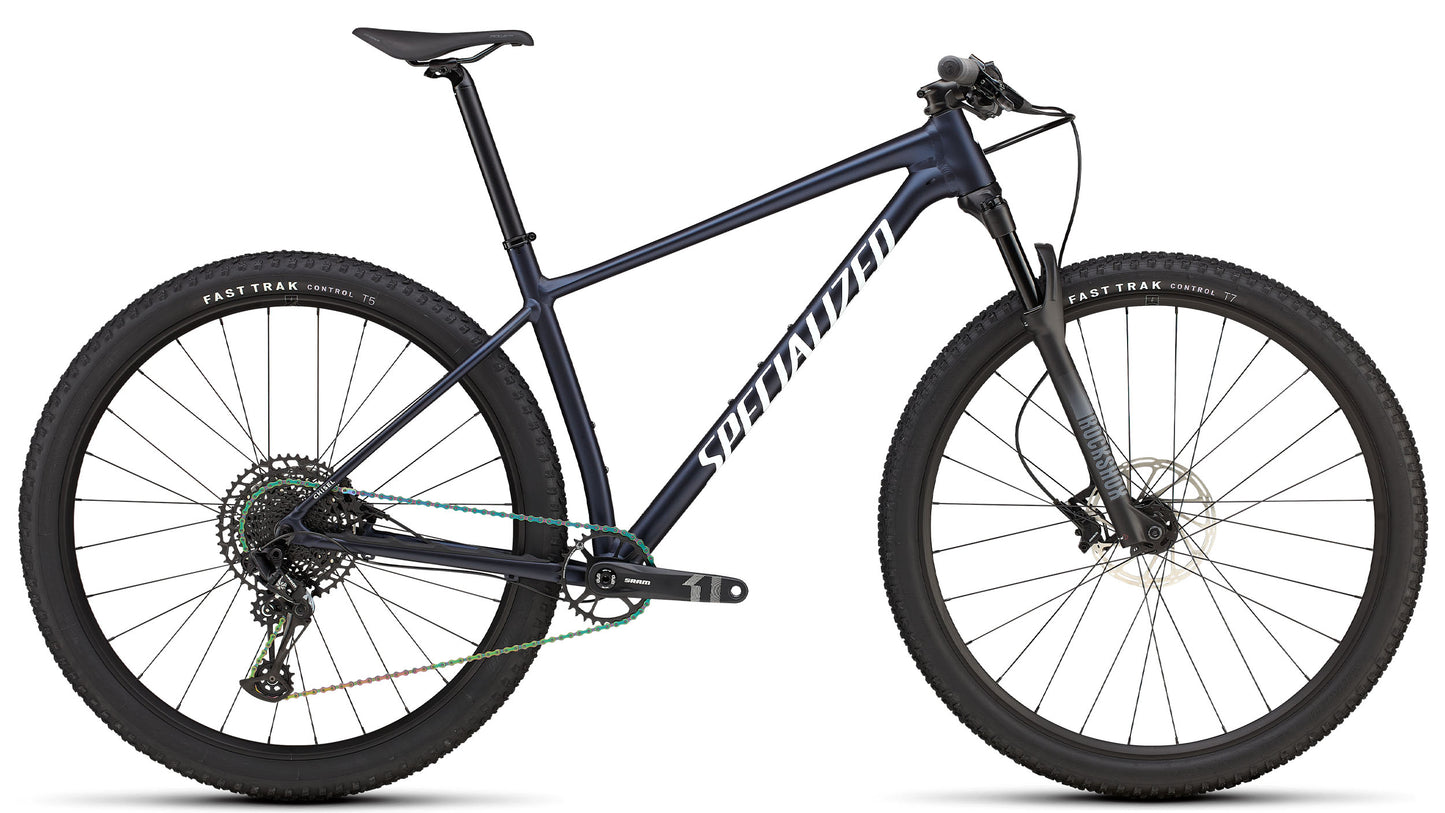

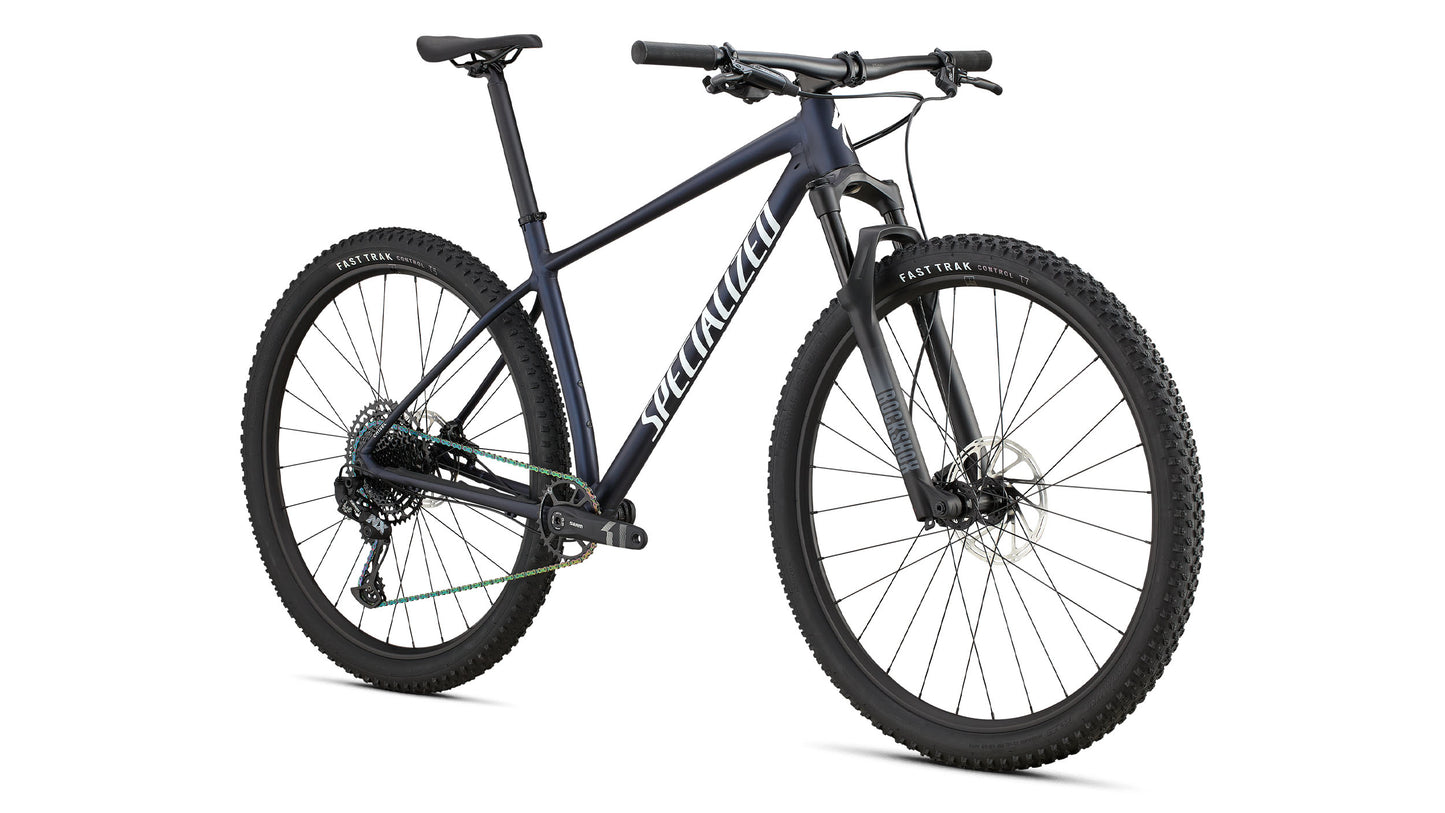

Chisel Hardtail Comp

SKU:91725-5004

R 34,000.00

~~R 34,000.00~~ R 34,000.00

Sale Sold out

Taxes included.

Color: Gloss Metallic Deep Marine / White

Size S M L XL

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and Level T hydraulic disc brakes, a RockShox Judy Gold fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.

We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.

View full details

Technical Specifications

Frameset

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

Specialized Alloy, 34.9mm

Cockpit

Handlebars

Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

Stem

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

Grips

Specialized Trail Grips

Saddle

Body Geometry Power Sport, steel rails

SeatPost

Specialized Alloy, Single Bolt, 30.9mm

Suspension

Fork

RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)

Brakes

Front Brake

SRAM Level T hydraulic disc, 2-Piston Caliper

Rear Brake

SRAM Level T hydraulic disc, 2-Piston Caliper

Drivetrain

Shift Levers

SRAM NX Eagle, trigger, 12-speed

Rear Derailleur

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Chain

SRAM XX1 Eagle, 12-speed

Crankset

SRAM FC X1 1000 EAGLE B148 DUB 32ST

Chainrings

32t

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Wheels & Tires

Rims

Specialized 29, 27mm inner width, 28h, tubeless ready

Front Hub

Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear Hub

Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h

Spokes

Stainless, 14g

Front Tire

Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35

Rear Tire

Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35

Inner Tubes

Standard 40mm PV 29x1.75-2.4

Product Details

Product ID

221772

Weight

Weight

11.76 kg (25 lb, 14.8 oz)

Weight Size

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Crank Length	165mmm	170mm	175mm	175mm	175mm
Handlebar Width	750mm	750mm	750mm	750mm	750mm
Stem Length	60mm	60mm	70mm	70mm	70mm
Saddle Width	155mm	155mm	143mm	143mm	143mm
Seatpost Length	350mm	400mm	400mm	400mm	400mm
Stack	591mm	605mm	605mm	619mm	633mm
Reach	385mm	405mm	430mm	455mm	480mm
Head Tube Length	95mm	95mm	95mm	110mm	125mm
Head Tube Angle	68°	68°	68°	68°	68°
BB Height	304mm	309mm	309mm	309mm	309mm
BB Drop	68mm	63mm	63mm	63mm	63mm
Trail	103mm	103mm	103mm	103mm	103mm
Fork Length, Full	486mm	506mm	506mm	506mm	506mm
Fork Rake/Offset	44mm	44mm	44mm	44mm	44mm
Front Center	647mm	674mm	699mm	730mm	760mm
Chainstay Length	432mm	432mm	432mm	432mm	432mm
Wheelbase	1070mm	1099mm	1124mm	1154mm	1185mm
Top Tube Length, Horizontal	555mm	578mm	603mm	632mm	661mm
Bike Standover Height	732mm	762mm	792mm	816mm	847mm
Seat Tube Length	367mm	400mm	430mm	470mm	520mm
Seat Tube Angle	74°	74°	74°	74°	74°

Sizing chart
