S-Works Epic Evo Custom Build Medium
S-Works Epic Evo Custom Build Medium
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
Bell's Cycling
Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200
Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed
You know what they say—when the grams go away, speed comes out to play. Benefitting from the lightest EVO frame we’ve ever created and the most aggressive iteration of our Progressive XC Geometry to date, the S-Works Epic EVO RS made a few calls and assembled a dream team supporting cast to offer a ‘capability-to-weight’ ratio that skips impressive and jumps straight to flat-out mindblowing.
While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.
Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.
With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.
For the S-Works Epic EVO RS we also made sure that every last component to have the honor of gracing its FACT 12m carbon frame was just as dedicated to finding the ultimate balance of lightness, efficiency and hard-charging capability. For proof, just take a look at the seemingly logic-defying, stiffer-lighter-stronger masterpiece that is the new Roval Control wheelset, and SRAM’s XC-light yet trail-tough electronic XX1 Eagle AXS group.
- Flip It To Rip It: Tune the ride of the S-Works Epic EVO’s FACT 12m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
- Pairing the stiff yet lightweight SID Ultimate chassis with RockShox's lightest-ever Charger Race Day damper makes for quite the package, impressively cutting weight while still managing to pack in truly impressive levels of performance, precsion and control.
- The pinnacle of drivetrain performance, SRAM's XX1 Eagle AXS combines next-gen wireless technology, incredibly accurate shift performance and game-changing versatility to drastically redefine the riding experience.
- Created specifically to match both the weight savings and increased capability of the S-Works Epic and S-Works Epic EVO, the Roval Control rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.
Share
Technical Specifications
FRAMESET
Frame
S-Works FACT 12m Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
SUSPENSION
Rear Shock
RockShox SID LUXE ULTIMATE, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm, Remote lock out.

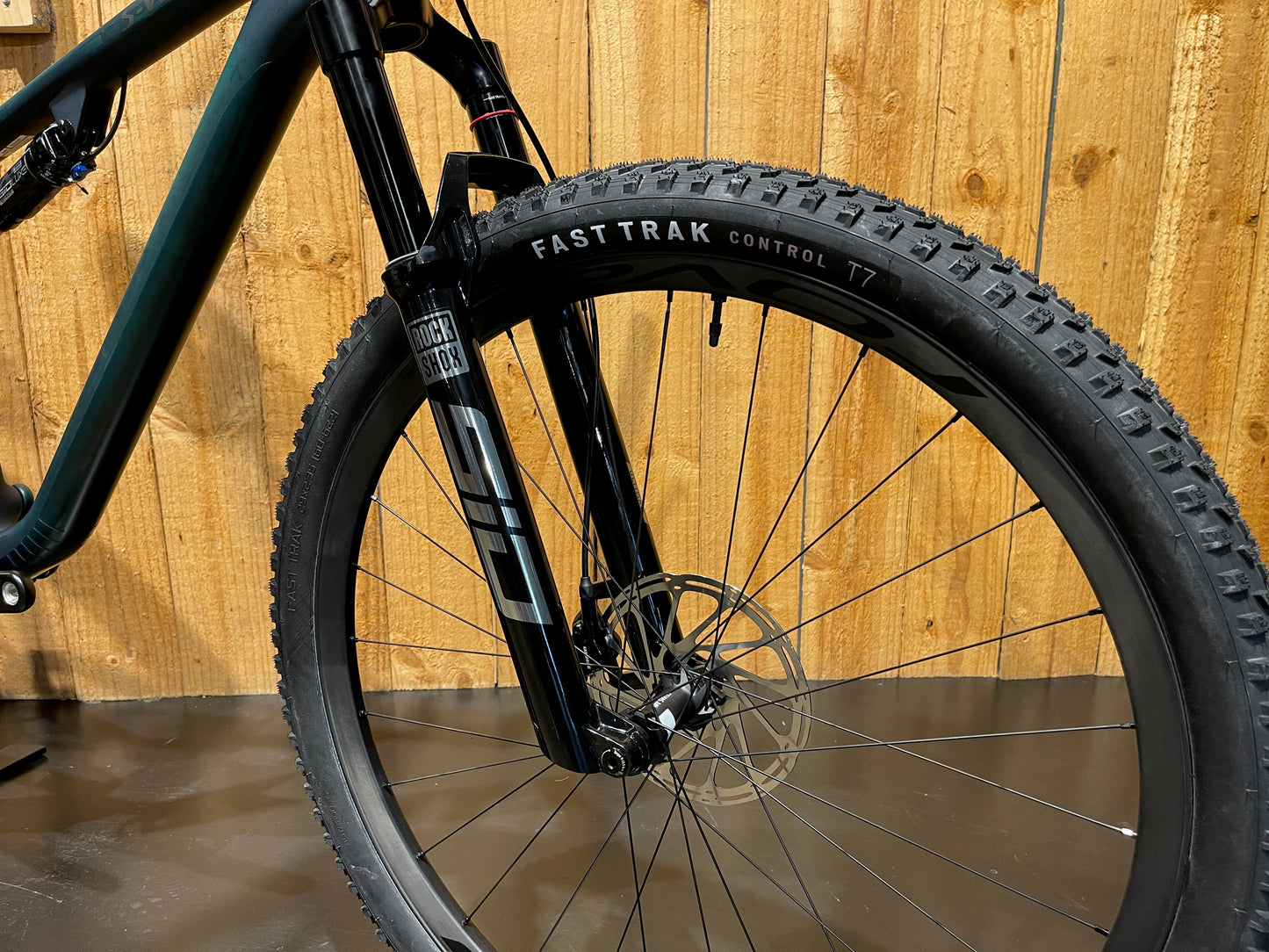

Fork
Rockshox SID ULTIMATE, Charger Race Day Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel. Remote lockout
COCKPIT
Stem
Specialized SL Stem, 35mm clamp, 60mm

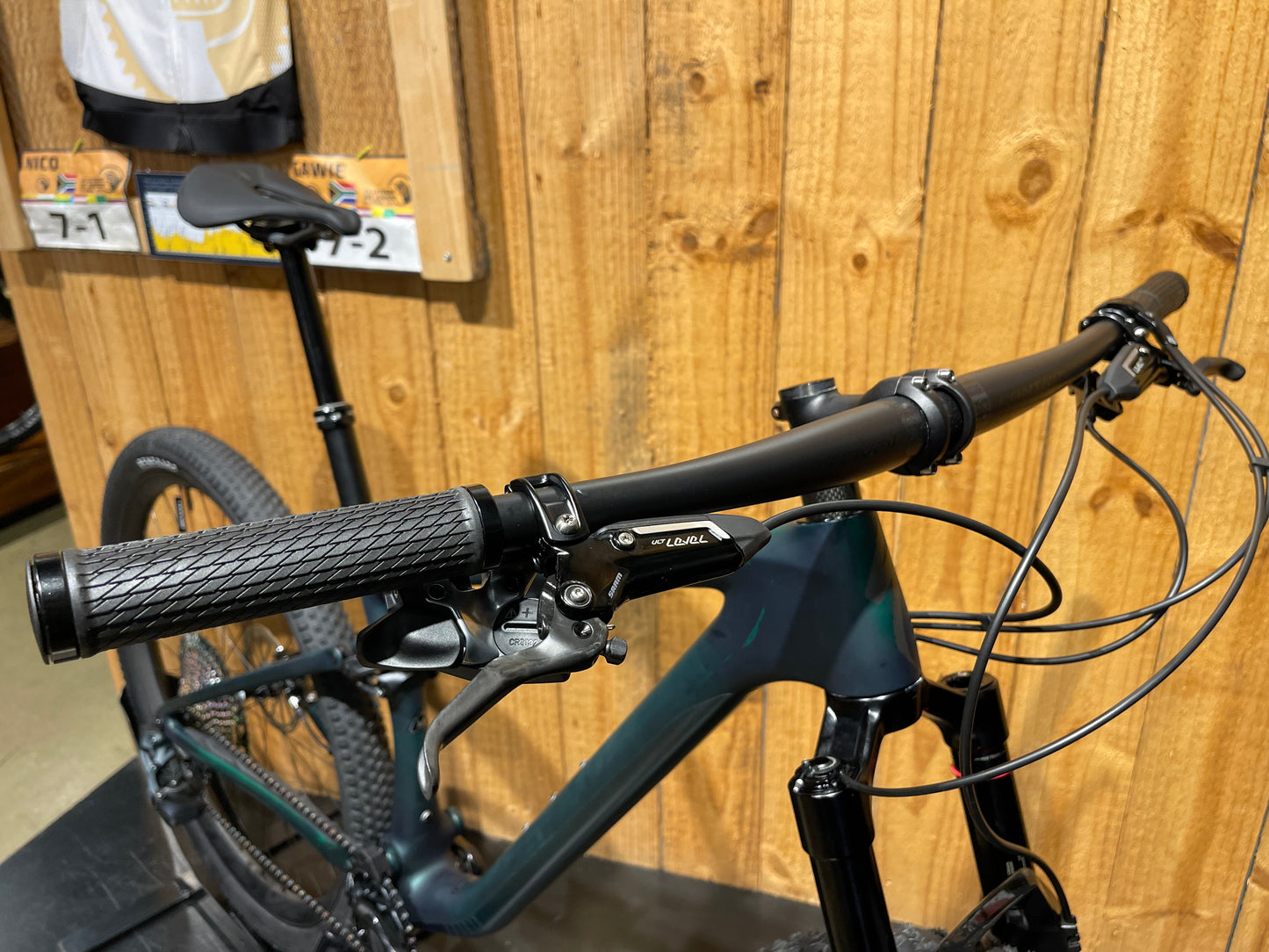

Handlebars
Roval Control SL, 780mm x 35mm, Carbon
Tape
Specialized Trail Grips

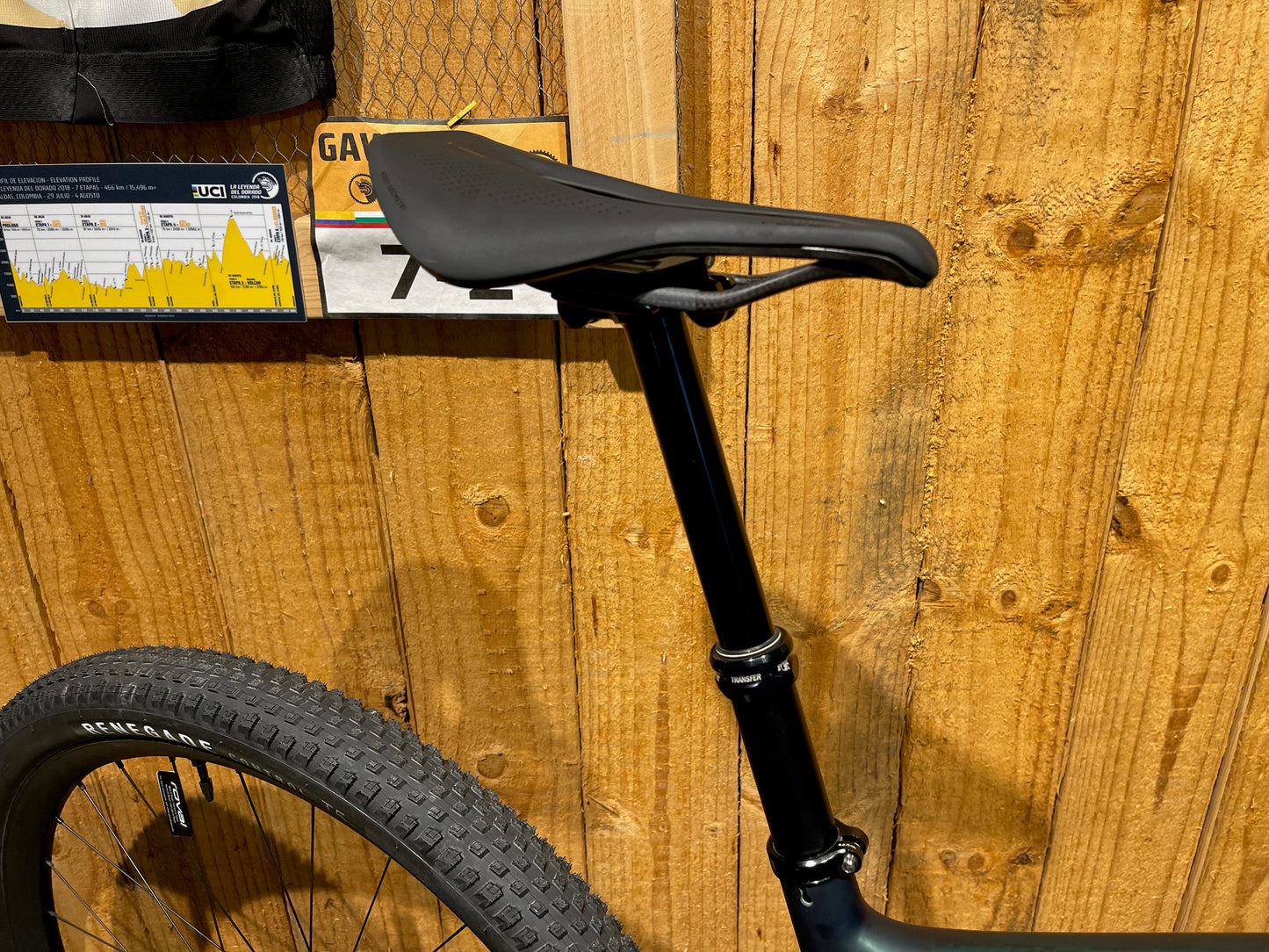

Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
SeatPost
Fox Transfer Performance, 30.9mm,M:150,
BRAKES
Front Brake
Sram Level Ultimate Stealth
SRear Brake
Sram Level Ultimate Stealth
DRIVETRAIN

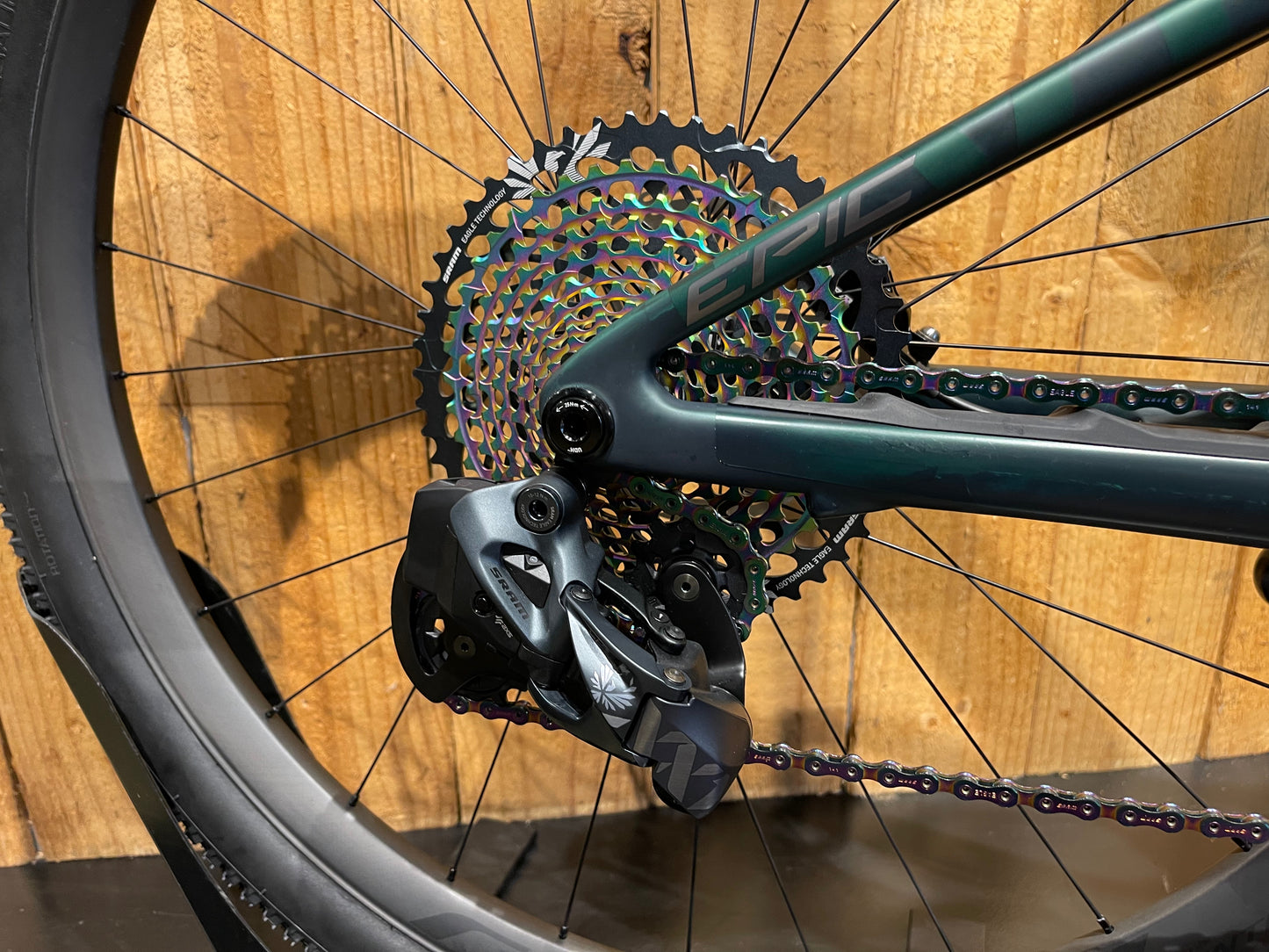

Rear Derailleur
Sram XX1 Eagle AXS
Shift Levers
SRAM AXS Rocker Paddle
Cassette
SRAM XG-1299 10-50T Rainbow
Chain
SRAM XX1 Eagle

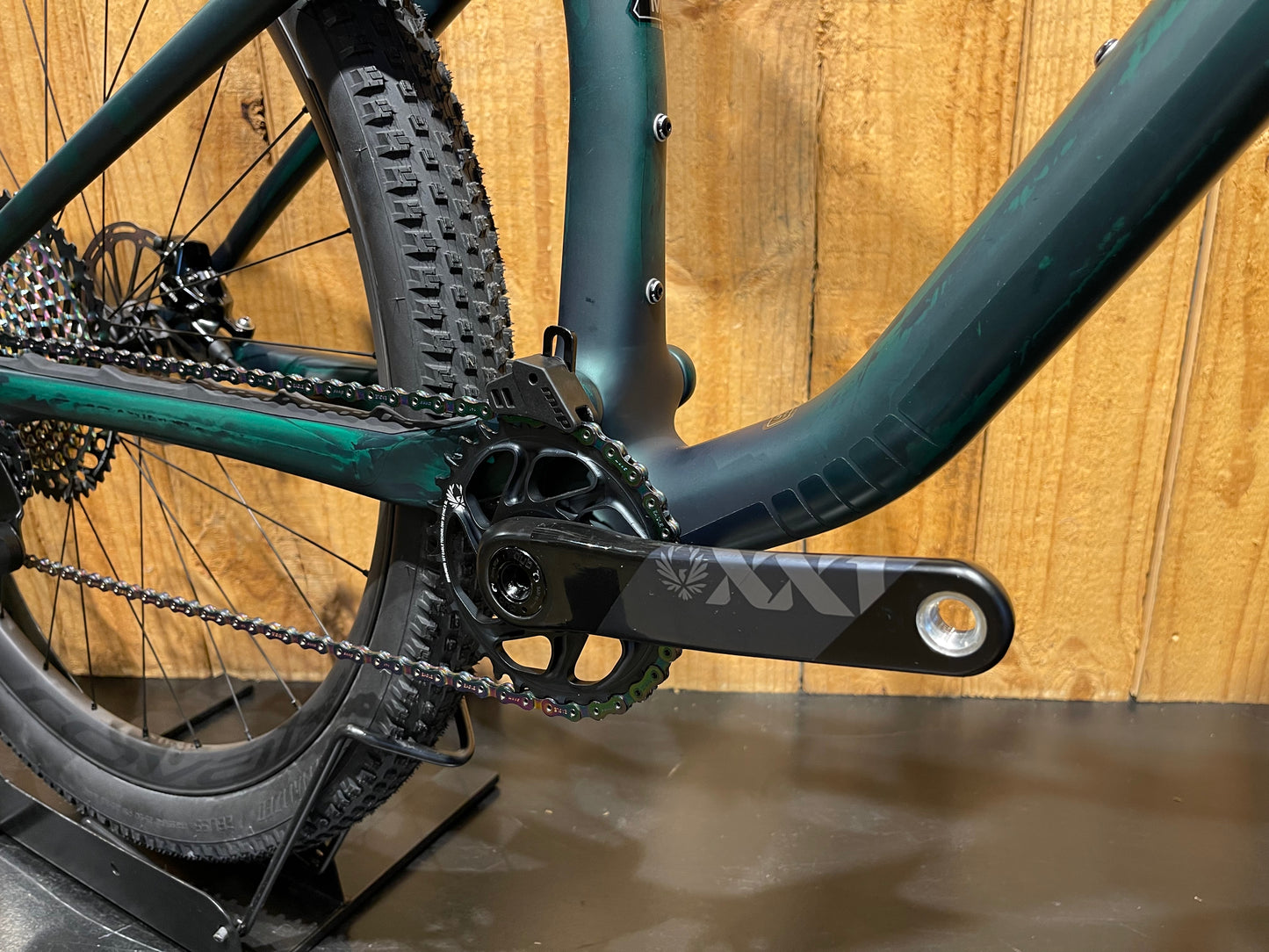

Crankset
SRAM XX1 Eagle Carbon, DUB, 175mm, 32T
Chainrings
Alloy, 32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
WHEELS
Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Front Hub
Roval Control, DT Swiss 350 Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head
Rear Hub
Roval Control , DT Swiss 350 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Spokes
DT Swiss Comp Race
Front Tire
Specialized Fast Track 2.35
SpeciaRear Tire
Specialized Fast Track 2.35
* Specifications are subject to change without notice
