SPECIALIZED

Turbo Levo Expert

Turbo Levo Expert

96421-3001

R 169,000.00
R 169,000.00 R 169,000.00
Sale Sold out
Taxes included.
Size
Color

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

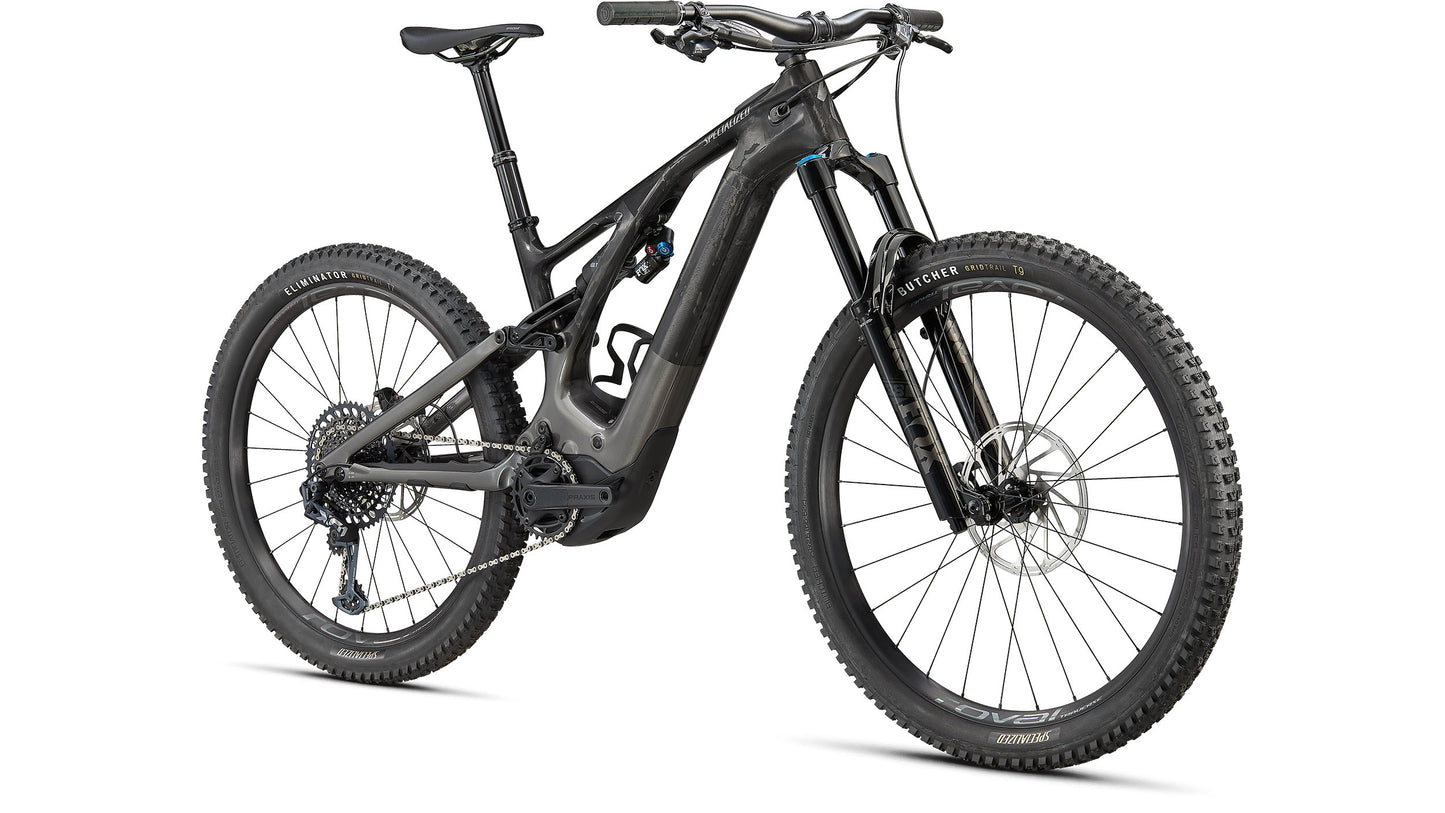

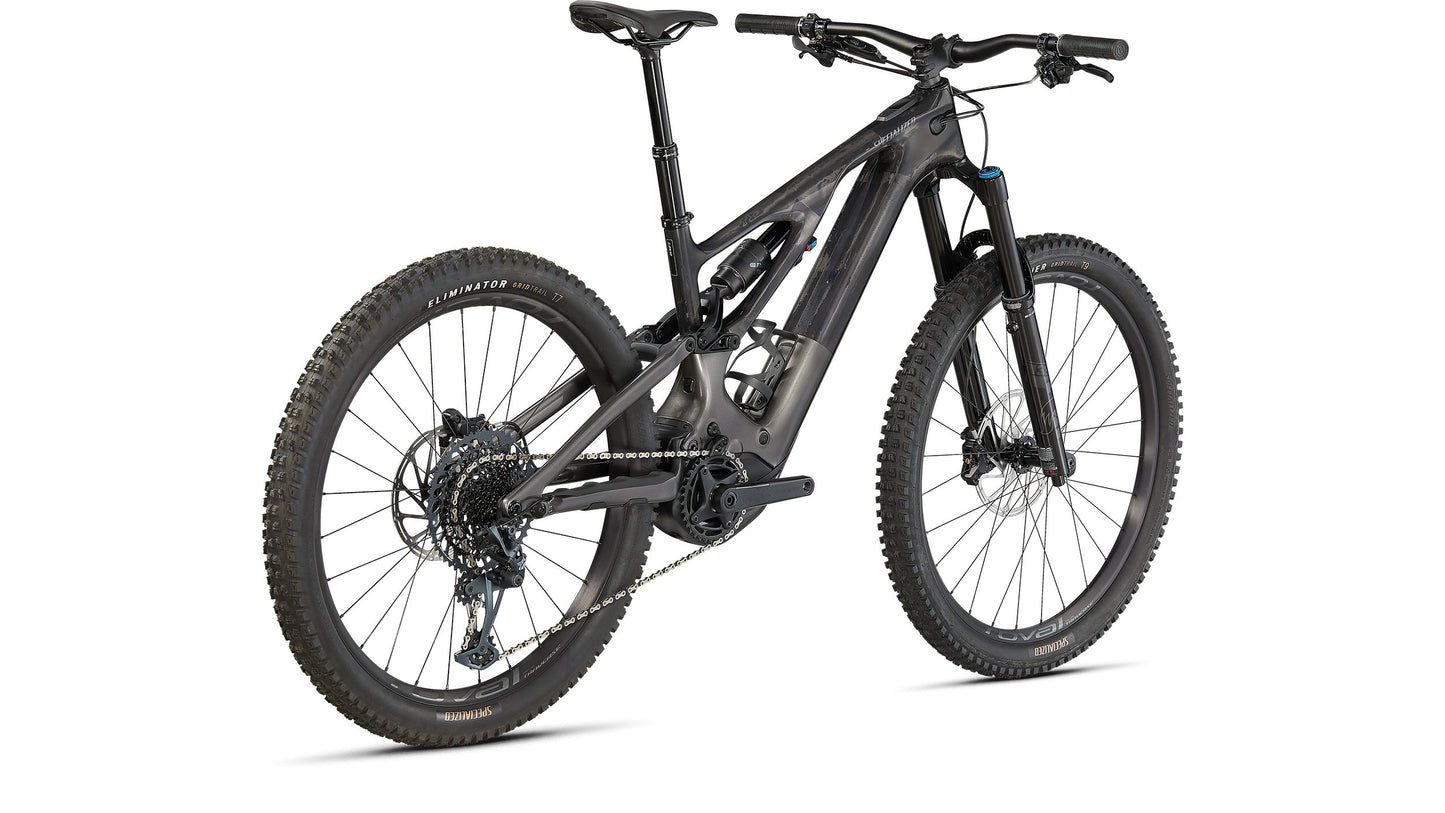

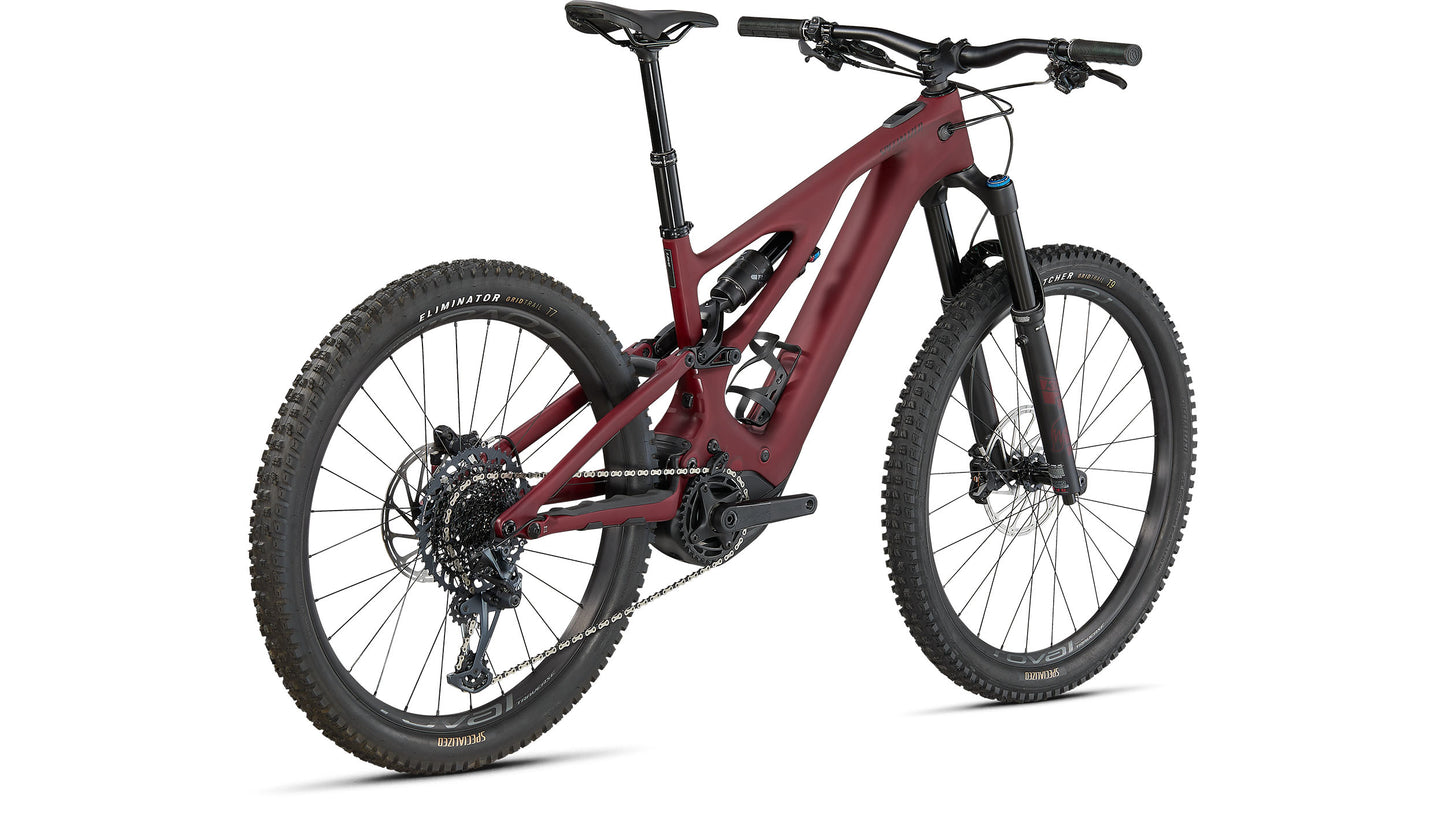

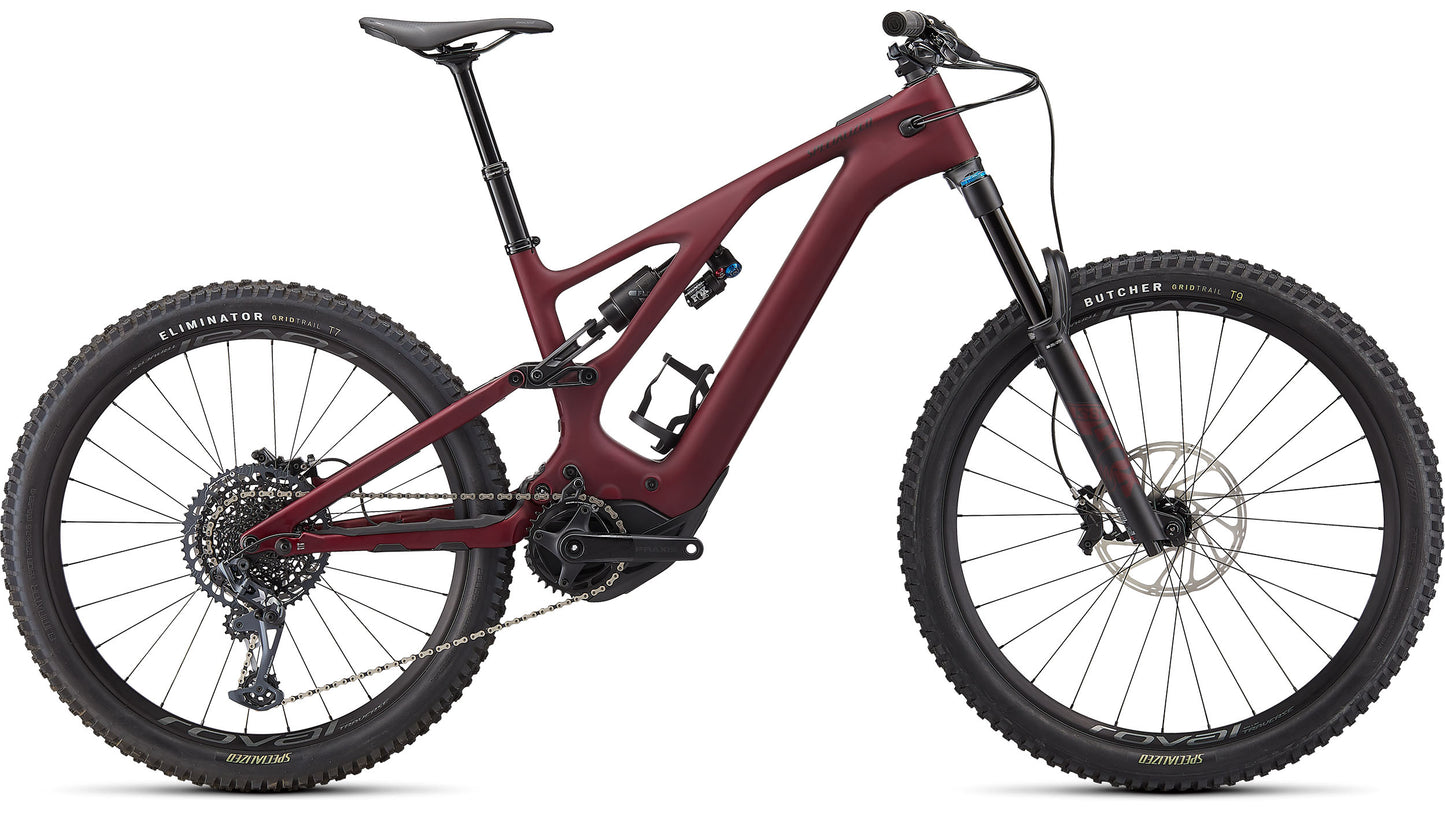

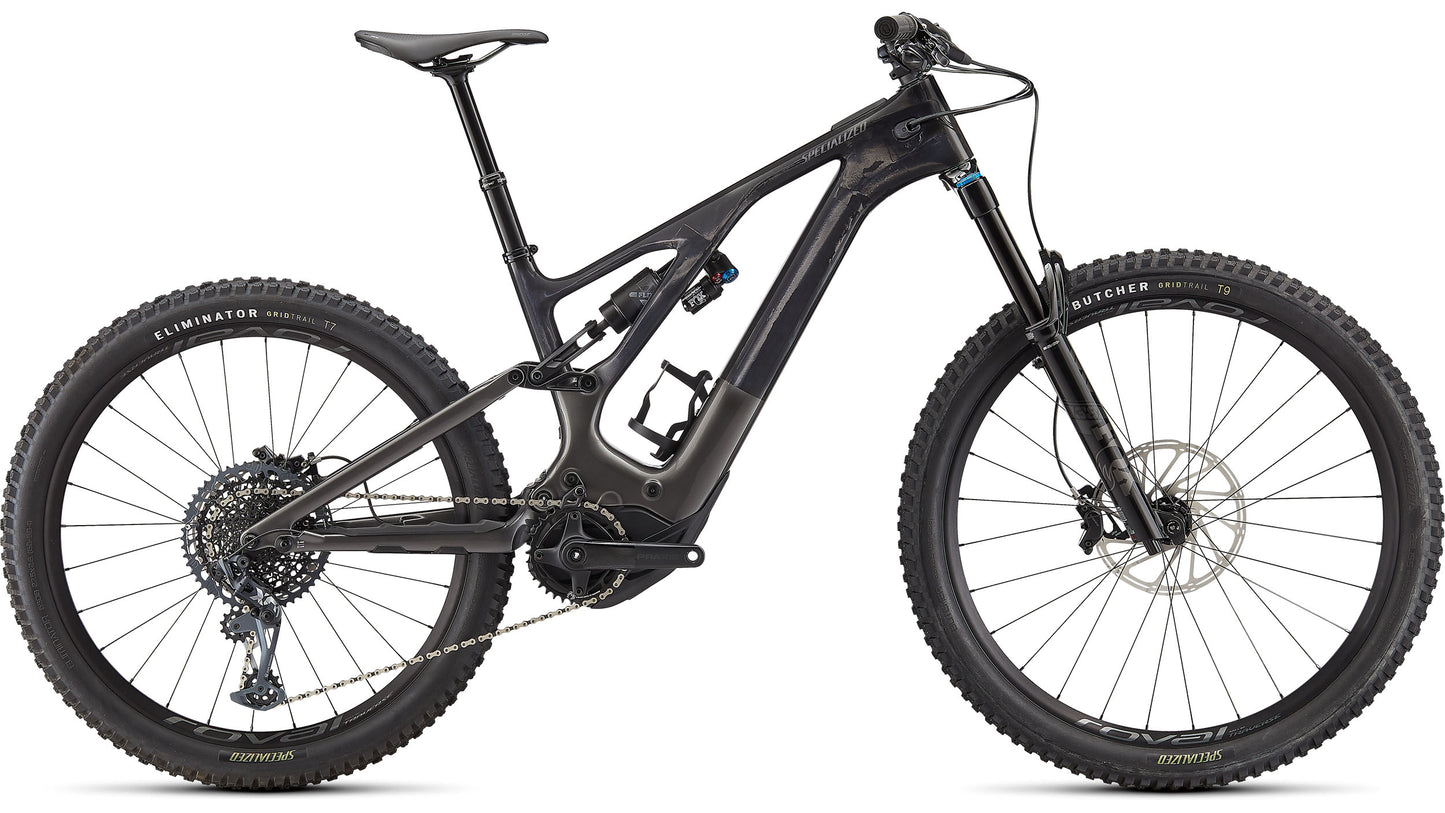

Turbo Levo Expert

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’s where the gloves come off—the Levo Expert brings it with SRAM’s robust X01 Eagle 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
    View full details

    Technical Specifications

    COCKPIT

    Stem

    Alloy Trail Stem, 35mm bar bore

    Saddle

    Bridge Comp, Hollow Cr-mo rails, 155/143mm

    Grips

    Deity Grips

    SeatPost

    OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

    Handlebars

    Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp



    FRAMESET

    Seat Binder

    Alloy, 38.6mm

    Frame

    FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot



    WHEELS

    Front Tire

    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

    Rear Tire

    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

    Inner Tubes

    Standard, Presta Valve

    Rear Wheel

    Traverse 27.5

    Front Wheel

    Traverse 29



    E-BIKE

    Wiring Harness

    Custom Specialized wiring harness

    Charger

    Custom charger, 42V4A w/ Rosenberger plug, 100-240V

    Motor

    Specialized 2.2 Custom Rx Trail Tuned Motor

    Battery

    Specialized M3-700, Integrated battery, 700Wh

    UI/Remote

    Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

    Fork

    Fox 38 Performance Elite, Grip 2 damper, 29", 160mm travel, 44mm offset

    Rear Shock

    S2-S6: Fox Float X2 Performance Elite series, 210x55mm, S1: Fox Float DPS Performance Elite series, 210x52.5mm



    DRIVETRAIN

    Crankset

    Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

    Shift Levers

    SRAM GX Eagle AXS Controller

    Rear Derailleur

    SRAM GX Eagle AXS, w/ battery cover

    Chain

    SRAM GX Eagle, 12-speed

    Chainrings

    SRAM X-Sync Eagle, 104 BCD, 34t, steel

    Cassette

    Sram XG-1275, 12-speed, 10-52t



    BRAKES

    Rear Brake

    SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

    Front Brake

    SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm



    ACCESSORIES

    SWAT

    SWAT CC steerer tube integrated tool with chain tool and link

    * Specifications are subject to change without notice

    Geometry

     S1S2S3S4S5S6
    Crank Length160mm160mm160mm160mm160mm160mm
    Handlebar Width780mm780mm780mm780mm780mm780mm
    Stem Length40mm40mm40mm40mm50mm50mm
    Saddle Width155mm155mm143mm143mm143mm143mm
    Seatpost Length120mm150mm150mm180mm210mm210mm
    Stack605mm617mm626mm635mm644mm653mm
    Reach412mm432mm452mm477mm502mm532mm
    Headtube Length105mm105mm115mm125mm135mm145mm
    Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
    BB Height352mm350mm350mm350mm350mm350mm
    BB Drop25mm27mm27mm27mm27mm27mm
    Trail130mm130mm130mm130mm130mm130mm
    Fork Length (full)557mm567mm567mm567mm567mm567mm
    Fork Rake/Offset44mm44mm44mm44mm44mm44mm
    Front Center738mm760mm784mm814mm843mm878mm
    Chainstay Length442mm442mm442mm442mm442mm442mm
    Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
    Bike Standover Height752mm776mm783mm787mm788mm790mm
    Seat Tube Length380mm390mm405mm425mm445mm465mm
    Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
    Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
    Min Seatpost Insertion80mm80mm80mm80mm80mm80mm

    Size Chart
