SPECIALIZED

Crux 5 Expert SRAM Force XPLR

SKU:91427-3149

R 140,000.00

~~R 140,000.00~~ R 140,000.00

Sale Sold out

Taxes included.

Color Burnt Gold/dolomite Metallic/obsidian Metallic Shadow Silver/obsidian Metallic

Size 49 52 54 56 58 61

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

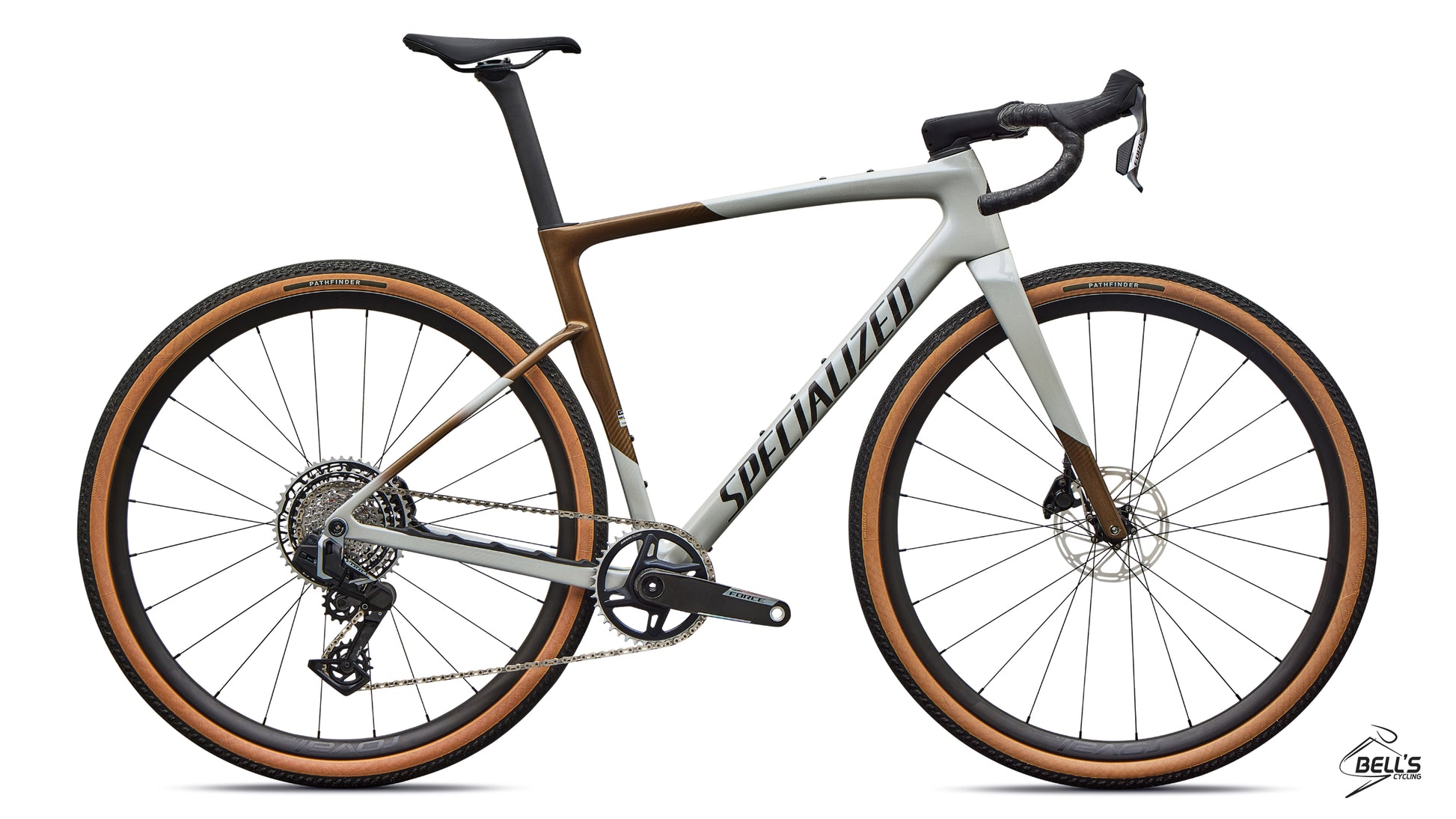

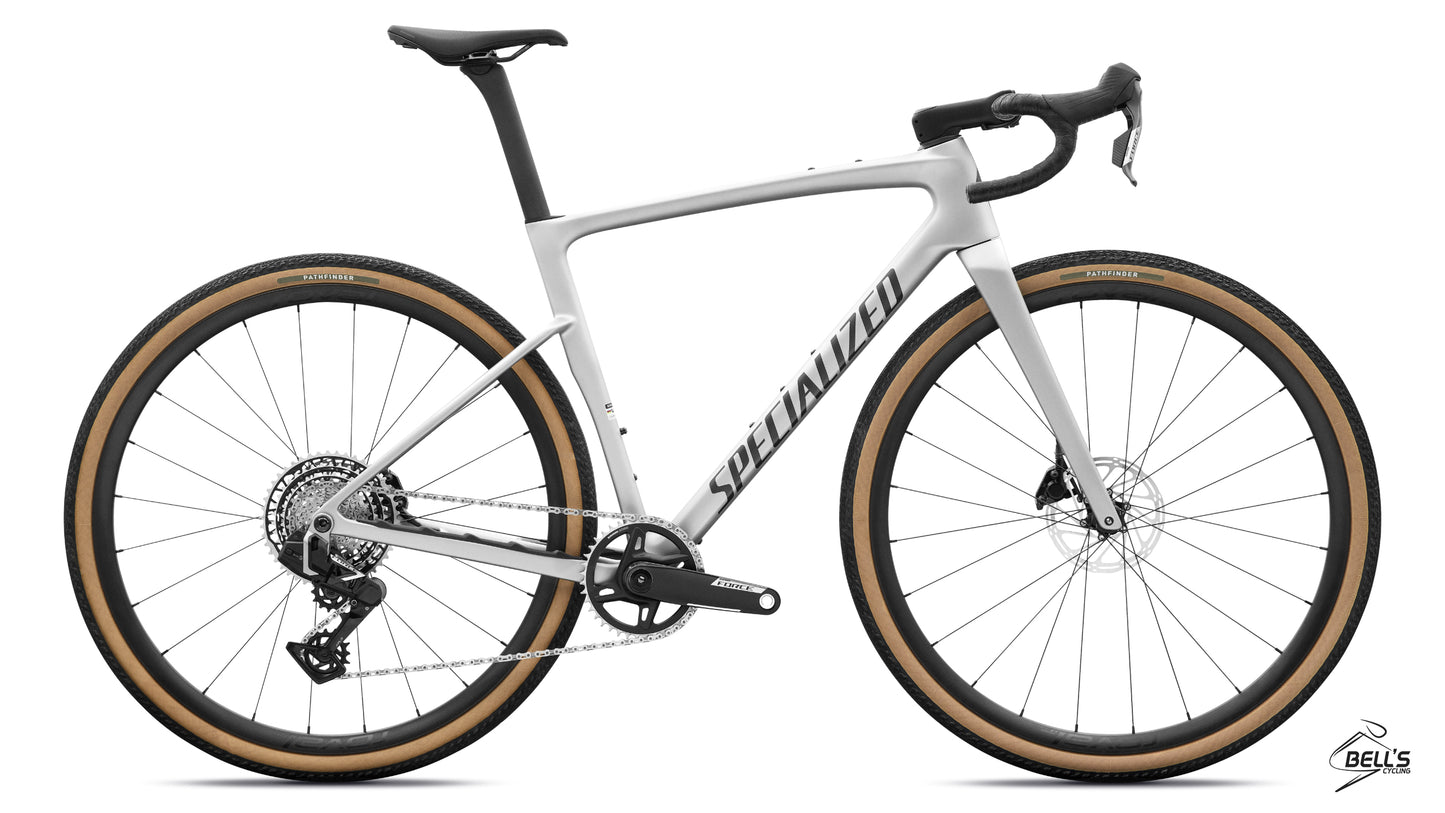

Crux 5 Expert

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

At a Glance

Use

Gravel Racing

Frame

FACT 10r Carbon: 897 grams

Wheels

Roval Terra C III

Bar and Stem

Roval Terra Handlebar and Rapide Stem

Drivetrain

SRAM Force AXS XPLR

Weight

8.22 kg

View full details

Technical Specifications

Frameset

Frame

Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM Force E1, hydraulic disc

Rear Brake

SRAM Force E1, hydraulic disc

Drivetrain

Bottom Bracket

SRAM DUB BSA 68 Wide

Rear Derailleur

SRAM Force AXS E1 XPLR, 13-speed

Shift Levers

SRAM Force AXS E1, hydraulic disc

Chain

SRAM Force E1

Cassette

SRAM Force E1 XPLR, 13-speed, 10-46t

Crankset

SRAM Force E1 XPLR, DUB Wide, 40t

Wheels & Tires

Inner Tubes

700x32-50mm, 40mm Presta valve

Front Wheel

Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Rear Wheel

Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Front Tire

Pathfinder 700x45, Tubeless Ready

Rear Tire

Pathfinder 700x45, Tubeless Ready

Cockpit

Saddle

Body Geometry Power Expert

SeatPost

S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Stem

Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Tape

Supacaz Super Sticky Kush

Seat Binder

Integrated Wedge

Product Details

Product ID

294830

Weight

Weight Size

Weight

8.22 kg (18 lb, 2.0 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	165	170	170	172.5	172.5
Handlebar Width	380	380	400	400	420	420
Stem Length	75	90	90	100	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	380	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	400	412	425
Head Tube Length	95	110	125	142	163	188
Head Tube Angle	70.5	70.75	71	71.5	71.5	71.5
BB Height	278	278	280	280	280	280
BB Drop	80	80	78	78	78	78
Trail	72	71	69	66	66	66
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	51	51	51	51	51	51
Front Center	594	604	613	626	644	665
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1016	1026	1039	1057	1078
Top Tube Length, Horizontal	512	534	543	566	583	603
Bike Standover Height	753	766	781	803	823	849
Seat Tube Length	445	456	473	497	515	545
Seat Tube Angle	75.5	74.5	74.5	74	74	74
