SPECIALIZED

Demo Race

SKU:94525-7202

R 155,000.00

~~R 155,000.00~~ R 155,000.00

Sale Sold out

Taxes included.

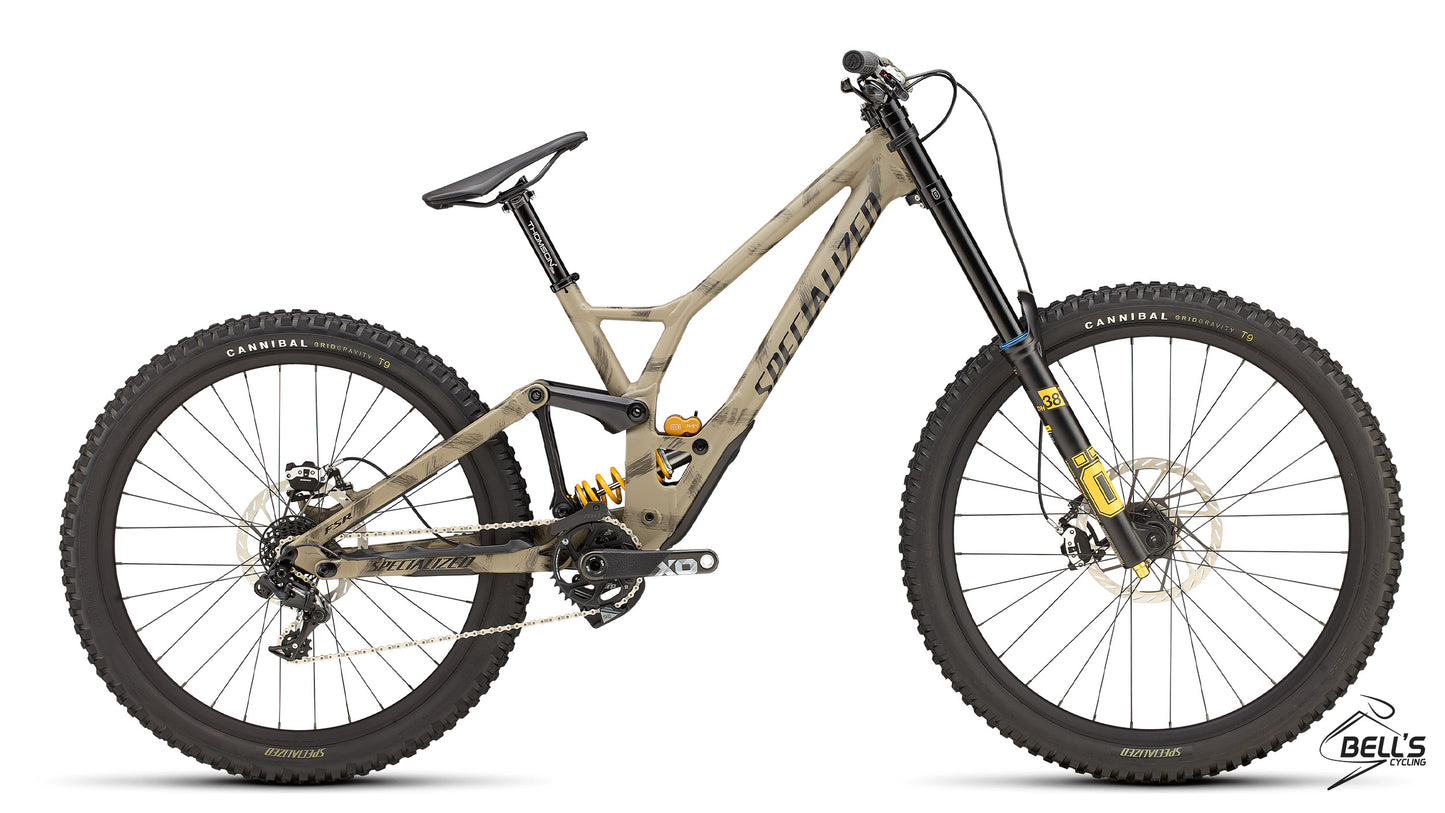

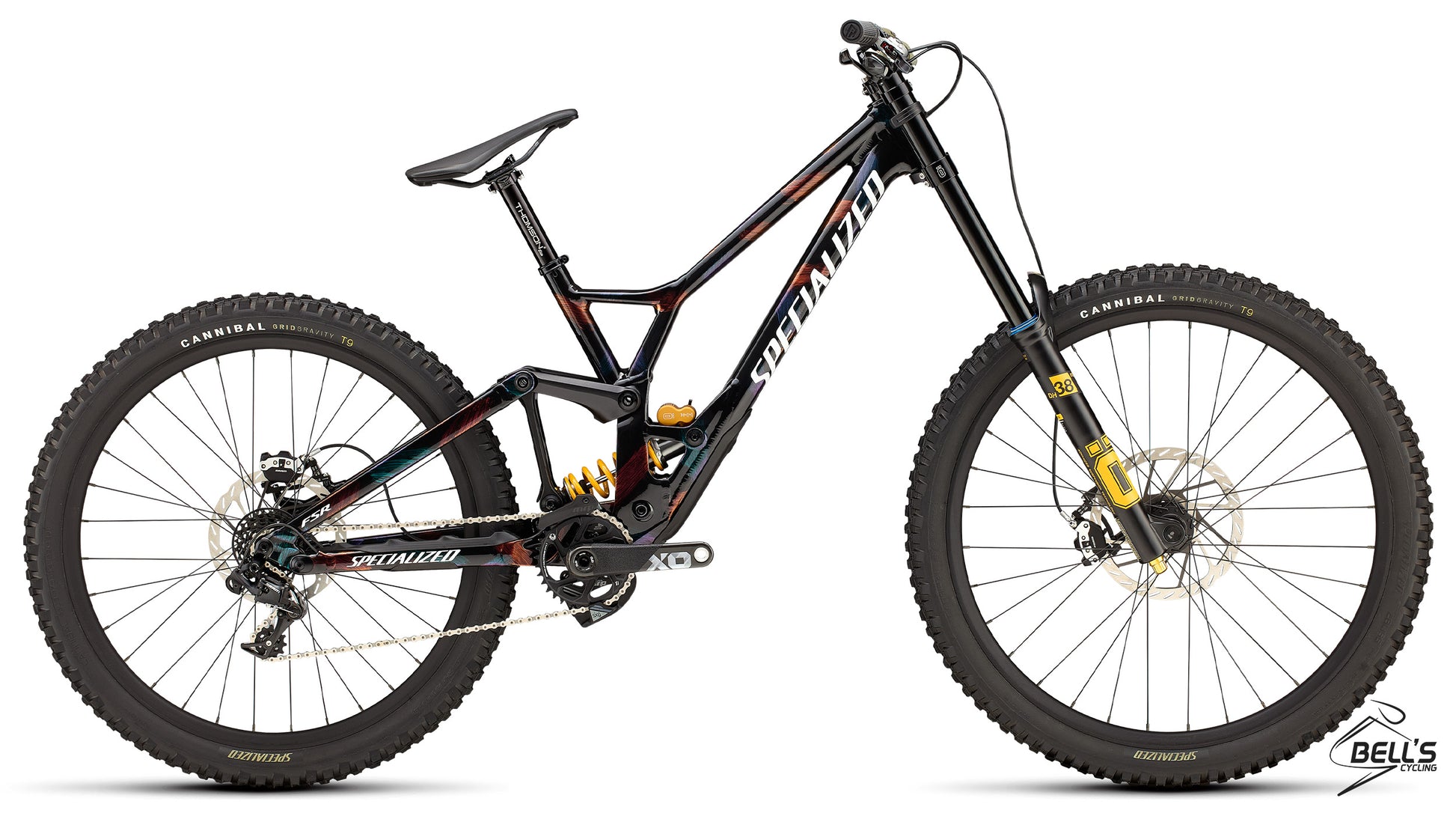

Color Gloss Obsidian / Brushed / Chameleon Supernova Satin Taupe / Black / Brushed

Size S2 S3 S4

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

All-out speed has always been the Demo’s target, and with the Demo Race, it’s no different. Introducing a new flexible wheel-size frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it’s a special blend that’s long been tested by World Champ Loïc Bruni looking for the perfect balance of traction and maneuverability, but only just green-lighted by the UCI this past year. Not that it stopped the Demo Race from racking up both the Downhill World Championship and overall World Cup titles in its very first season...

Now, we’re offering that same winning combination straight out of the box, while an adjustable rear end that still allows you to change between 27.5 and 29-inch wheel sizes based on terrain and riding style while also adjusting for proper chainstay length and bottom bracket height.

Blazing fast on tough tracks, the Demo Race suspension design has been developed around a more rearward axle path that reduces rear-wheel hang-up, increasing speed instead.

Top-shelf suspension from Öhlins takes advantage of the most proven suspension kinematics on the World Cup circuit, and SRAM’s DH-specific X01 drivetrain has you covered from the start gate to finish line.

The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
The Öhlins TTX22M.2 coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.
With superb small bump tracking and the ability to soak up landings from even the heftiest drop-off, the Öhlins DH38 m.1 fork’s 200-millimeters of travel will give you smoother, faster, and more confident feeling runs than anything you’ve ridden before.

View full details

Technical Specifications

Frameset

Frame

M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

Seat Binder

Alloy, 34.9mm

Suspension

Fork

Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel

Rear Shock

Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75

Brakes

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm

Drivetrain

Bottom Bracket

SRAM DUB, 83mm

Cassette

SRAM X01 DH, 7-speed, 10-24t

Rear Derailleur

SRAM X01 DH, 7-speed, trigger

Crankset

SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm

Shift Levers

SRAM X01 DH, trigger, 7-speed

Chain

Sram PC1130 w/ Powerlink, 11-speed

Wheels & Tires

Rims

Roval Traverse Alloy 29" / 27.5", 32h alloy rim, 28mm inner rim width

Front Hub

DT Swiss 350 hub, 20x110mm

Front Tire

Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.4"

Rear Tire

Cannibal, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.4"

Rear Hub

DT Swiss 350 hub, 12x148mm

Spokes

Sapim D-Light

Inner Tubes

Standard, Presta

Cockpit

Saddle

Body Geometry Henge DH, hollow titanium rails, 130mm

Grips

Deity Lockjaw

Handlebars

Renthal Fatbar 35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm

Stem

Renthal Integra 35mm Direct Mount Stem, 45mm length

SeatPost

Thomson, alloy, straight, 12-degree clamp

Product Details

Product ID

221385

Weight

17.62kg (38 lb, 13.5 oz)

Weight Size

Geometry

	S2	S3	S4
Crank Length	165	165	165
Handlebar Width	800	800	800
Stem Length	45	45
Saddle Width	130	130
Seatpost Length	367	367	367
Chain-Stay Length (29)	448	448	448
B-B Drop	25	25	25
Front-Center (27.5 mid)	801	821	841
Stack	632	632	632
Head-Tube Angle	62.8	62.8	62.8
Head-Tube Angle (27.5 mid)	62.5	62.5	62.5
Stack (27.5 mid)	635	635	635
Reach	426	446	466
Wheelbase (mid)	1244	1264	1284
Seat-Tube Length	394	420	420
Seat-Tube Angle	78.2	76.8	76.8
Seat-Tube Angle (29 mid)	78.5	77.1	77.1
Stack (29 mid)	629	629	629
Head-Tube Angle (29 mid)	63.2	63.2	63.2
B-B Height (29 mid)	355	355	355
Chain-Stay Length (mid)	443	443	443
Wheelbase (27.5)	1239	1259	1279
Fork Rake/Offset	56	56	56
Chain-Stay Length (27.5)	438	438	438
Trail (27.5 mid)	132	132	132
Front-Center	801	821	841
Reach (29 mid)	430	450	470
Reach (27.5 mid)	423	443	463
B-B Height	350	350	350
Trail (29 mid)	127	127	127
Seat-Tube Angle (27.5 mid)	77.8	76.4	76.4
Trail	130	130	130
Front-Center (29 mid)	801	821	841
Head-Tube Length	105	105	105
B-B Height (27.5 mid)	345	345	345
Wheelbase (29)	1249	1269	1289
