SPECIALIZED
Epic 9 Sport SRAM S1000, RockShox Reba

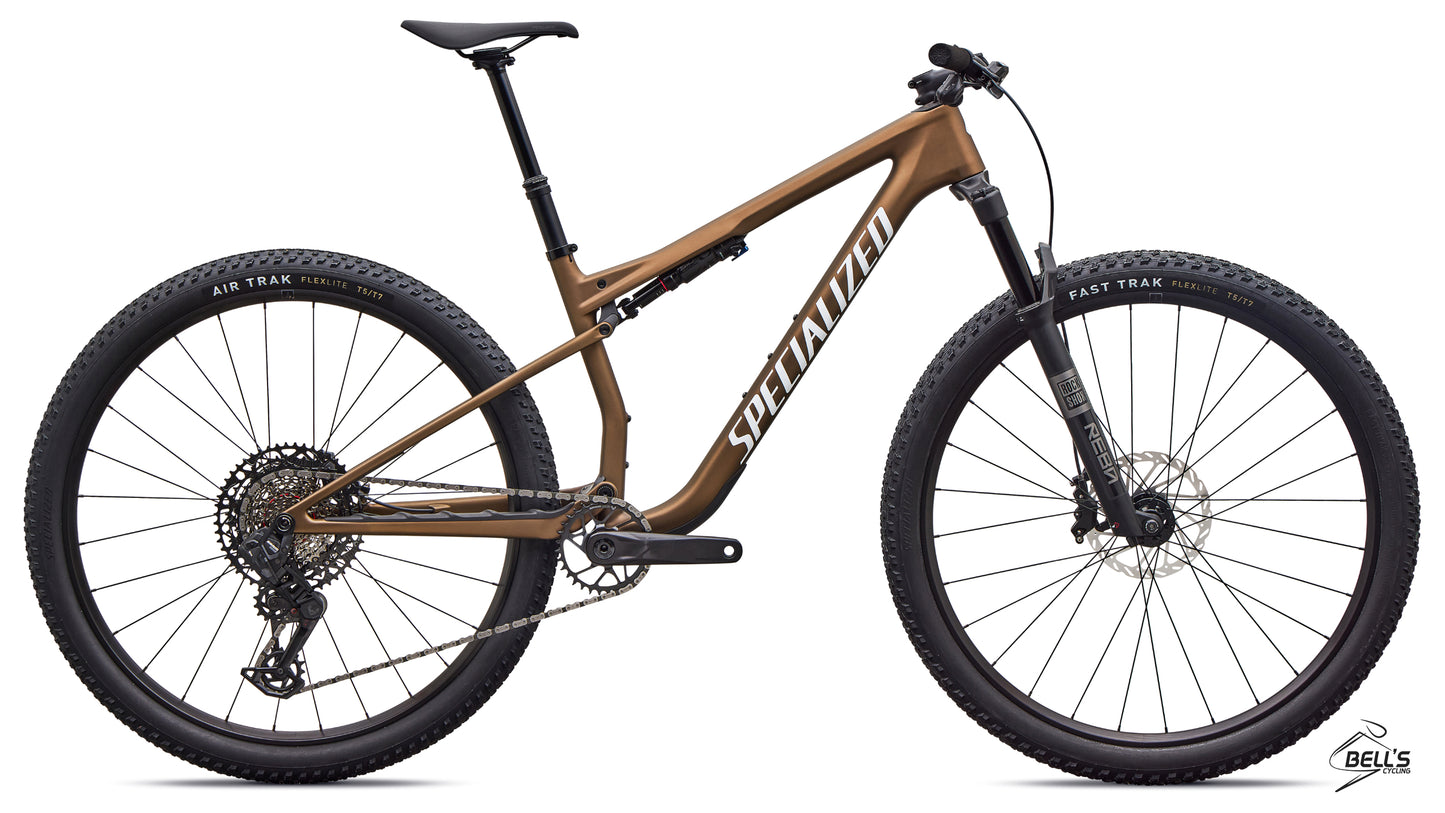

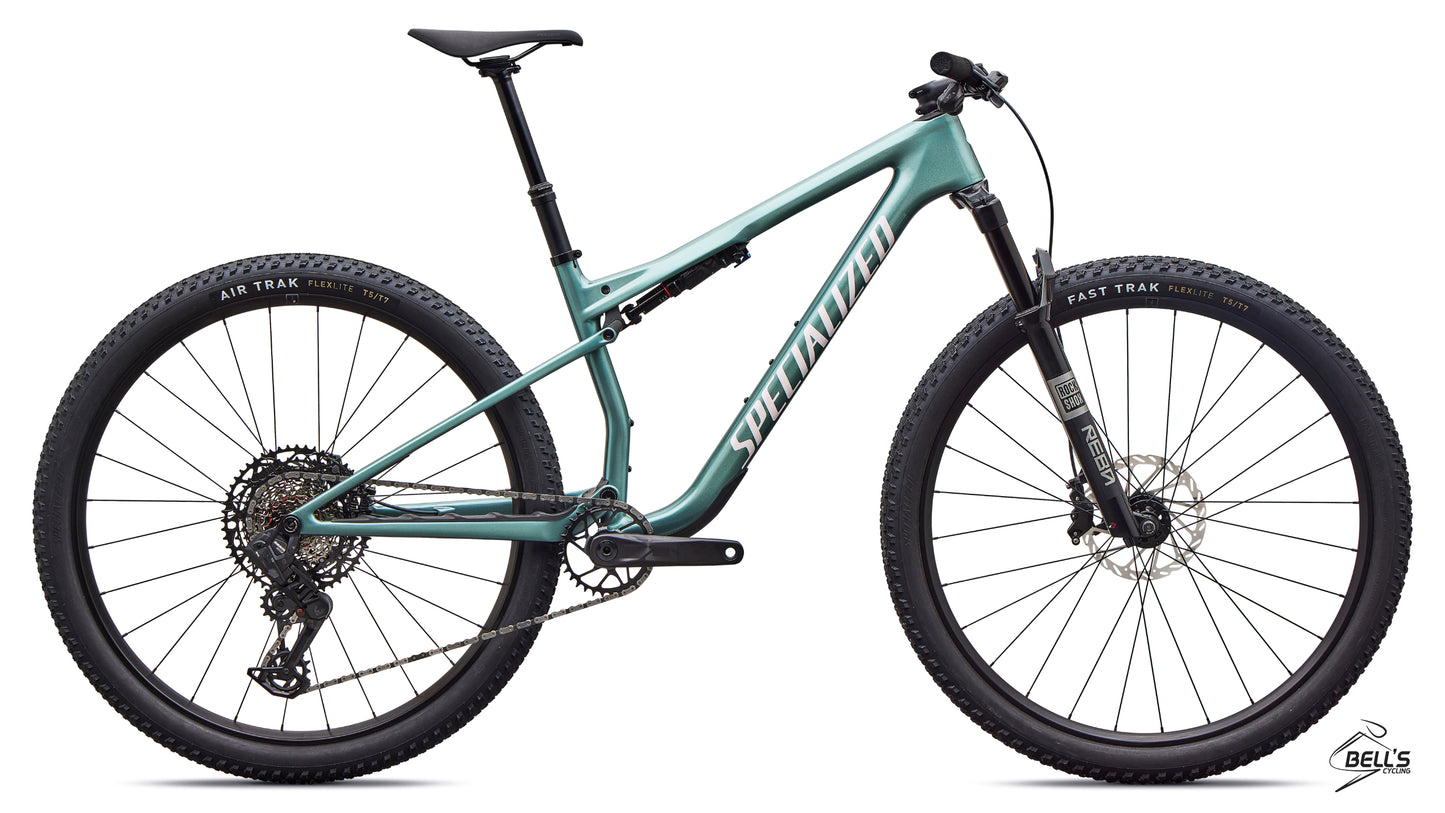

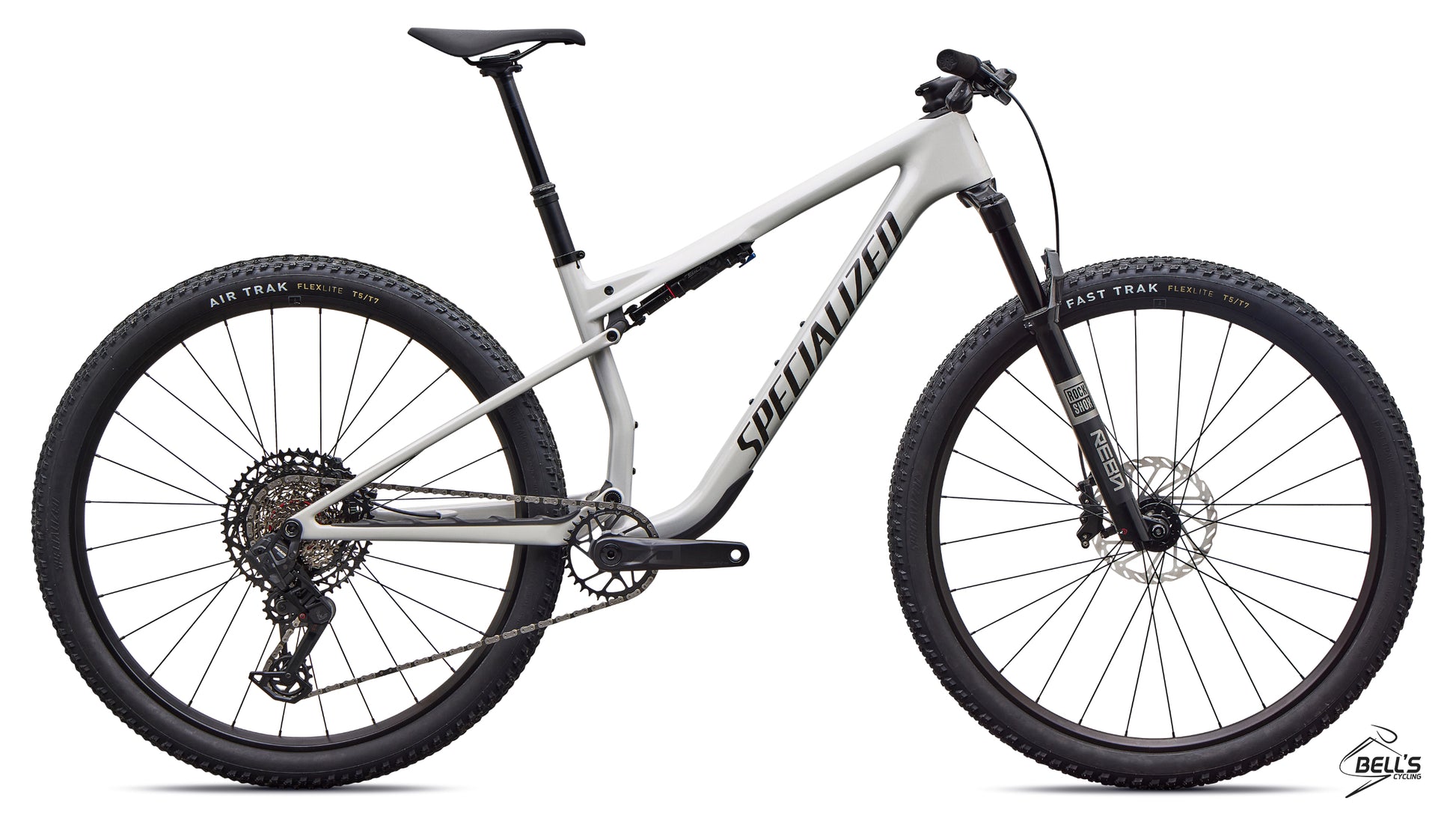

Epic 9 Sport SRAM S1000, RockShox Reba
SKU:90327-6003
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY
Bell's Cycling
Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200
Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed
Couldn't load pickup availability
Evolution of the Fastest
The Lightest, Fastest, Most Capable XC Race Bike Ever
Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.<br>We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.<br>Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.<br>Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.
At a Glance
Use
XC Racing
Frame
FACT 11m Carbon, Progressive XC Race Geometry, 120mm of travel
Suspension
Front: RockShox REBA<br>Rear: RockShox SidLuxe Select+
Drivetrain
SRAM S1000 Eagle Transmission
Wheels
Specialized Alloy 29
Weight
26 lbs. 4.1 oz.
Share
Technical Specifications
Frameset
Frame
FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Suspension
Fork
RockShox REBA, Motion Control damper, 15x110mm, 44mm offset, 120mm Travel
Rear Shock
RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, Lever adjust, Solo Air, 190x45mm
Brakes
Front Brake
SRAM DB4, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM DB4, 4-piston caliper, hydraulic disc, 160mm rotor
Drivetrain
Cassette
SRAM 12-speed,10-52t
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Bottom Bracket
SRAM DUB Threaded Wide
Crankset
SRAM Eagle 70, 165/170mm, 55mm chainline, 32T
Rear Derailleur
SRAM S1000 Eagle AXS
Wheels & Tires
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Tire
Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rims
Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube 48MM Presta valve, 29x1.75/2.4
Spokes
Stainless, 14g
Cockpit
Saddle
Body Geometry Power Sport, steel rails
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Grips
Supacaz foam grip, 135mm length, closed end
SeatPost
TranzX Dropper, 30.9mm, SM: 100mm, M: 125mm, L-XL: 150mm
Product Details
Product ID
295549
Weight
Weight
11.91 kg (26 lb, 4.1 oz)
Weight Size
MD
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 170 |
| Handlebar Width | 760 | 760 | 760 | 760 |
| Stem Length | 60 | 70 | 70 | 70 |
| Saddle Width | 155 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 150 | 170 |
| Stack | 594 | 604 | 618 | 645 |
| Reach (Low) | 420 | 450 | 480 | 505 |
| Reach (High) | 425 | 455 | 485 | 510 |
| Head-Tube Length | 92 | 105 | 120 | 150 |
| Head-Tube Angle (Low) | 65.9 | 65.9 | 65.9 | 65.9 |
| Head-Tube Angle (High) | 66.3 | 66.3 | 66.3 | 66.3 |
| B-B Height | 333 | 335 | 335 | 335 |
| B-B Drop (Low) | 42 | 40 | 40 | 40 |
| B-B Drop (High) | 37 | 35 | 35 | 35 |
| Trail | 120 | 120 | 120 | 120 |
| Fork Length (full) | 531 | 531 | 531 | 531 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Center | 716 | 752 | 788 | 823 |
| Chain-Stay Length | 435 | 435 | 438 | 442 |
| Wheelbase | 1148 | 1184 | 1223 | 1264 |
| Top-Tube Length (horizontal) | 568 | 601 | 634 | 666 |
| Frame Stand-Over Height | 749 | 755 | 757 | 764 |
| Seat-Tube Length | 390 | 410 | 455 | 505 |
| Seat-Tube Angle | 76 | 76 | 76 | 76 |
| Seat Post Max Insertion | 190 | 220 | 260 | 315 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 |
| Saddle Height for Effective STA | 690 | 735 | 780 | 825 |
Size Chart
Epic 9
| Height (Cm) | Size |
|---|---|
| 158 - 165 | S |
| 165 - 178 | M |
| 1 78 - 185 | L |
| 185 - 193 | XL |
Epic 9
| Height (In) | Size |
|---|---|
| 62-65 | S |
| 65-70 | M |
| 70-73 | L |
| 73-76 | XL |
