SPECIALIZED

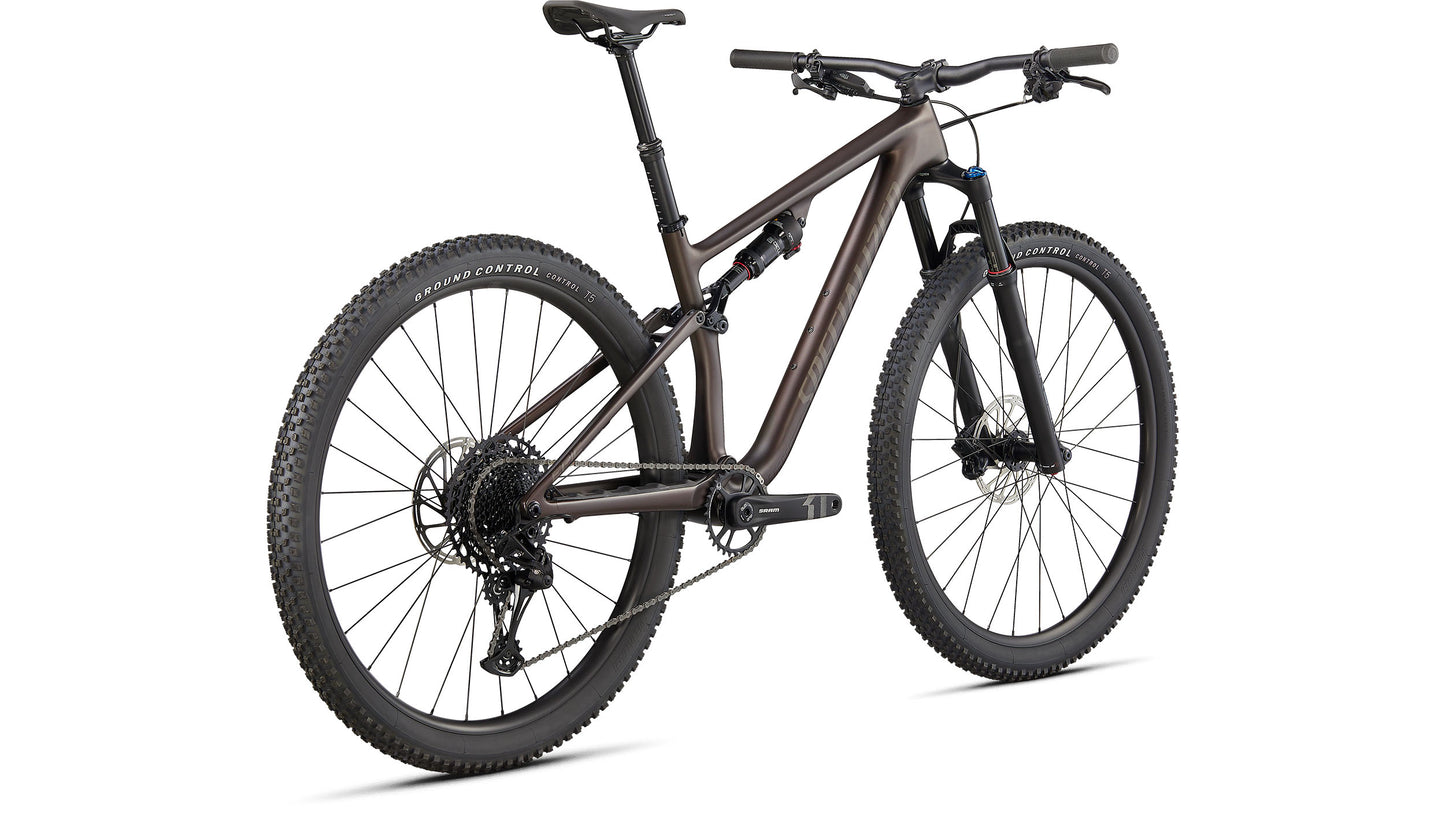

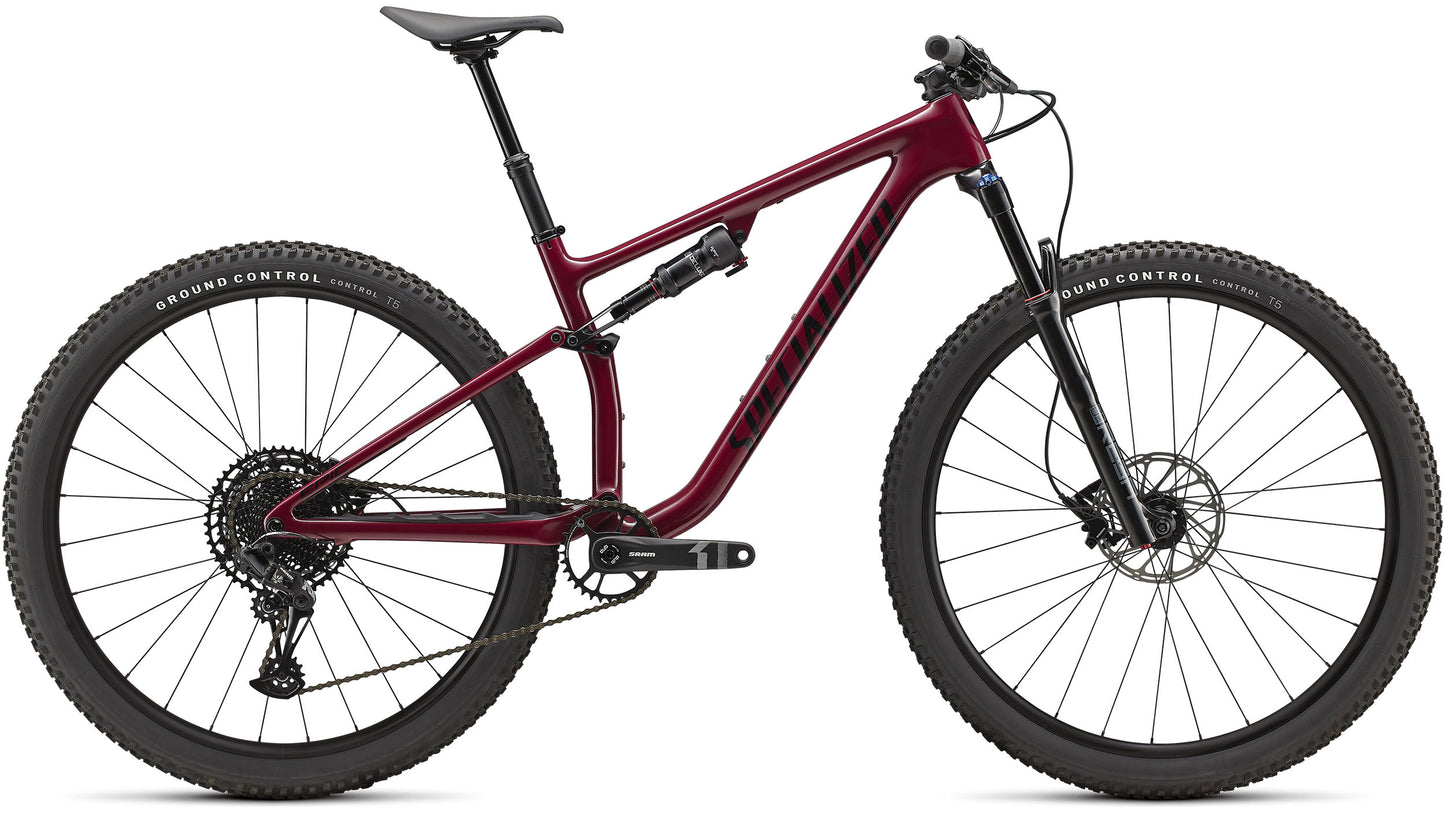

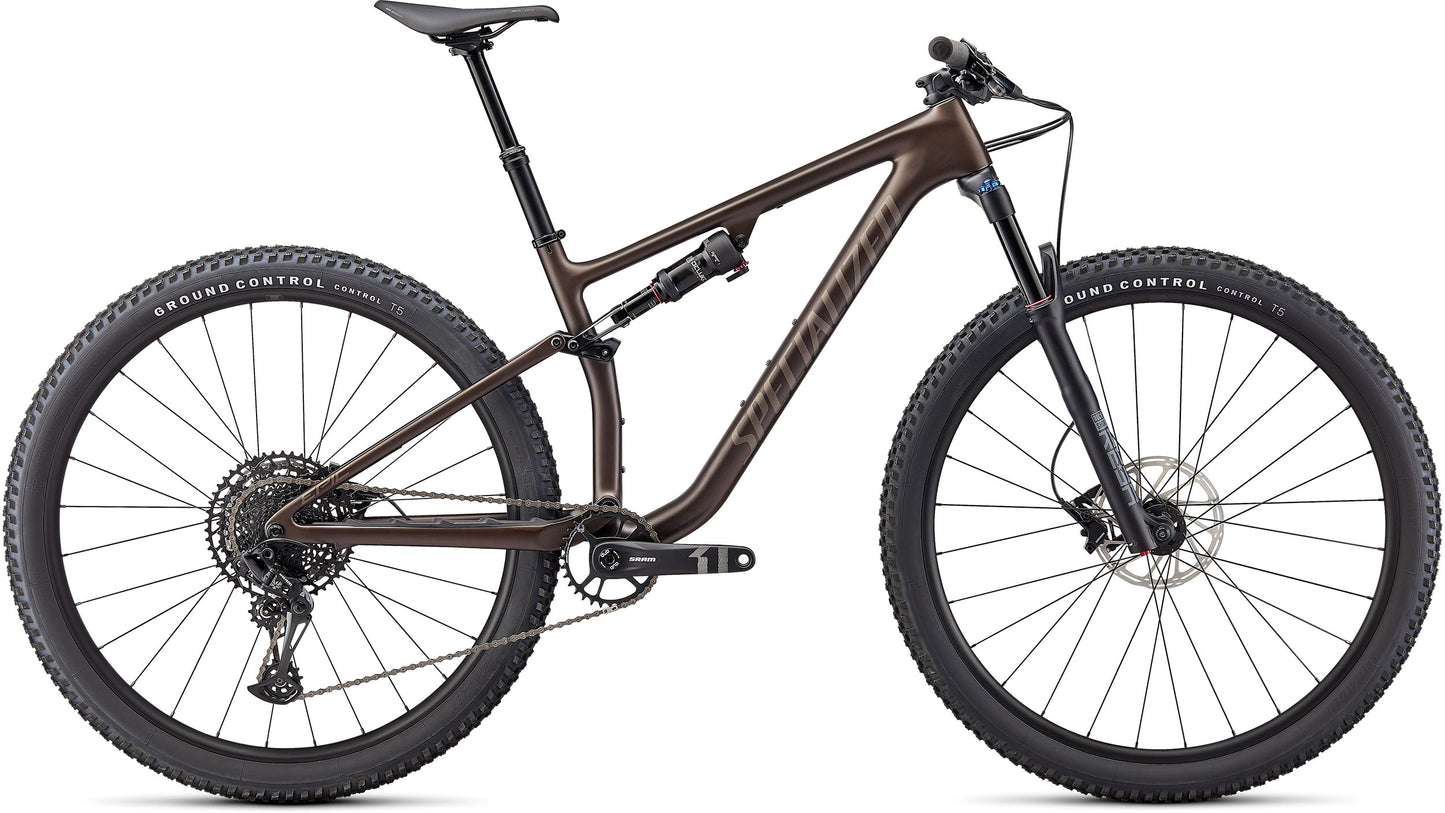

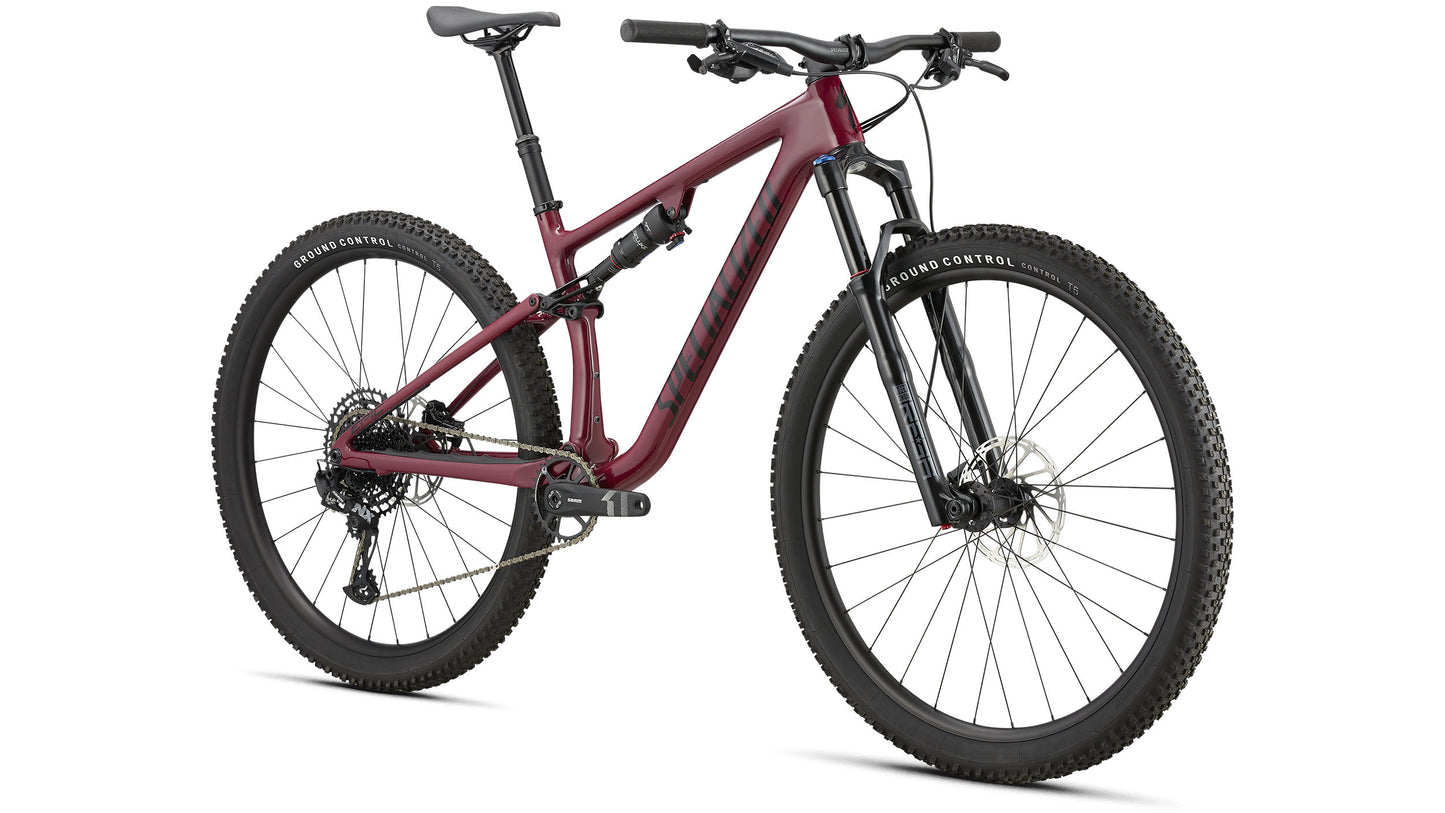

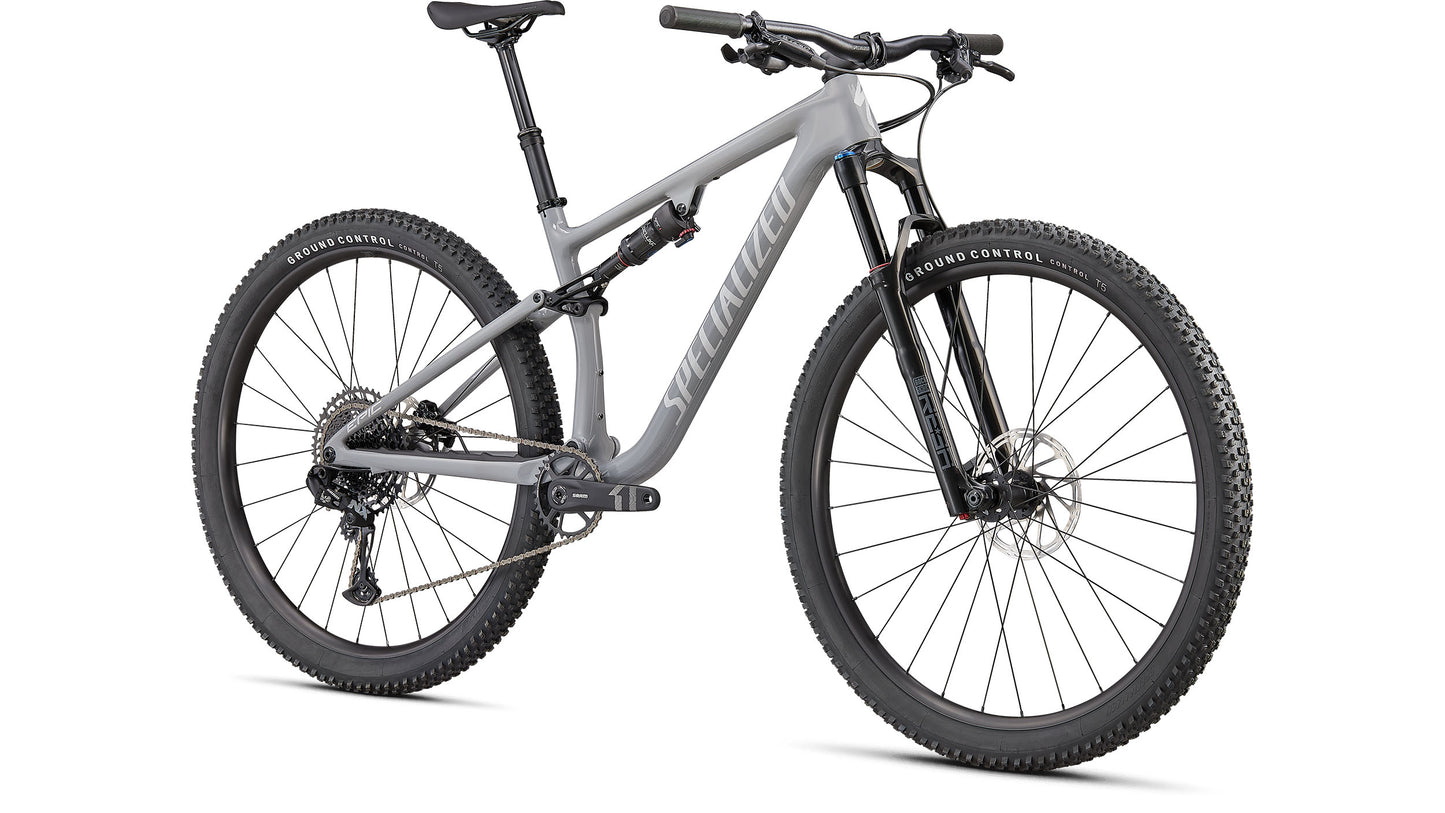

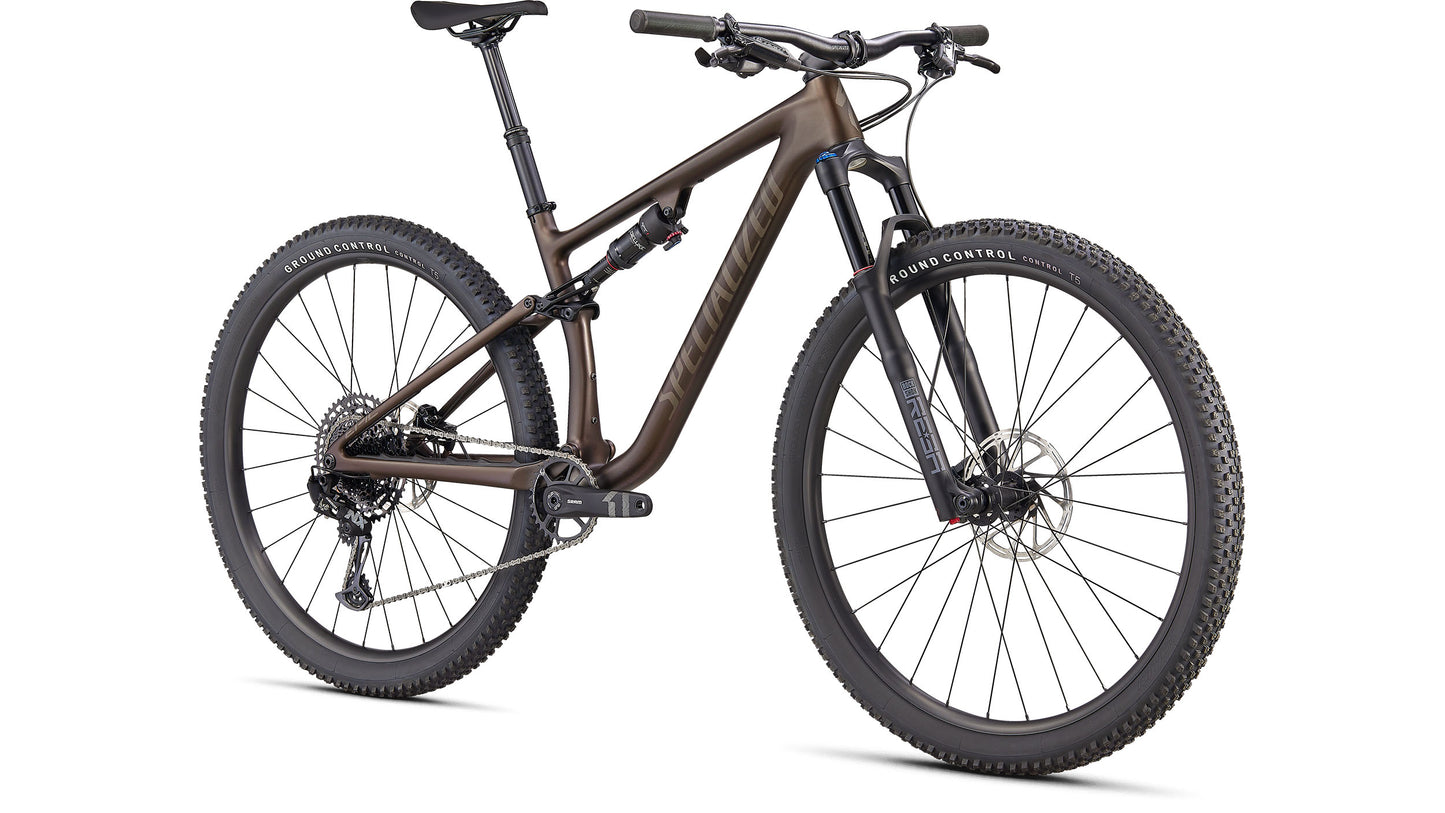

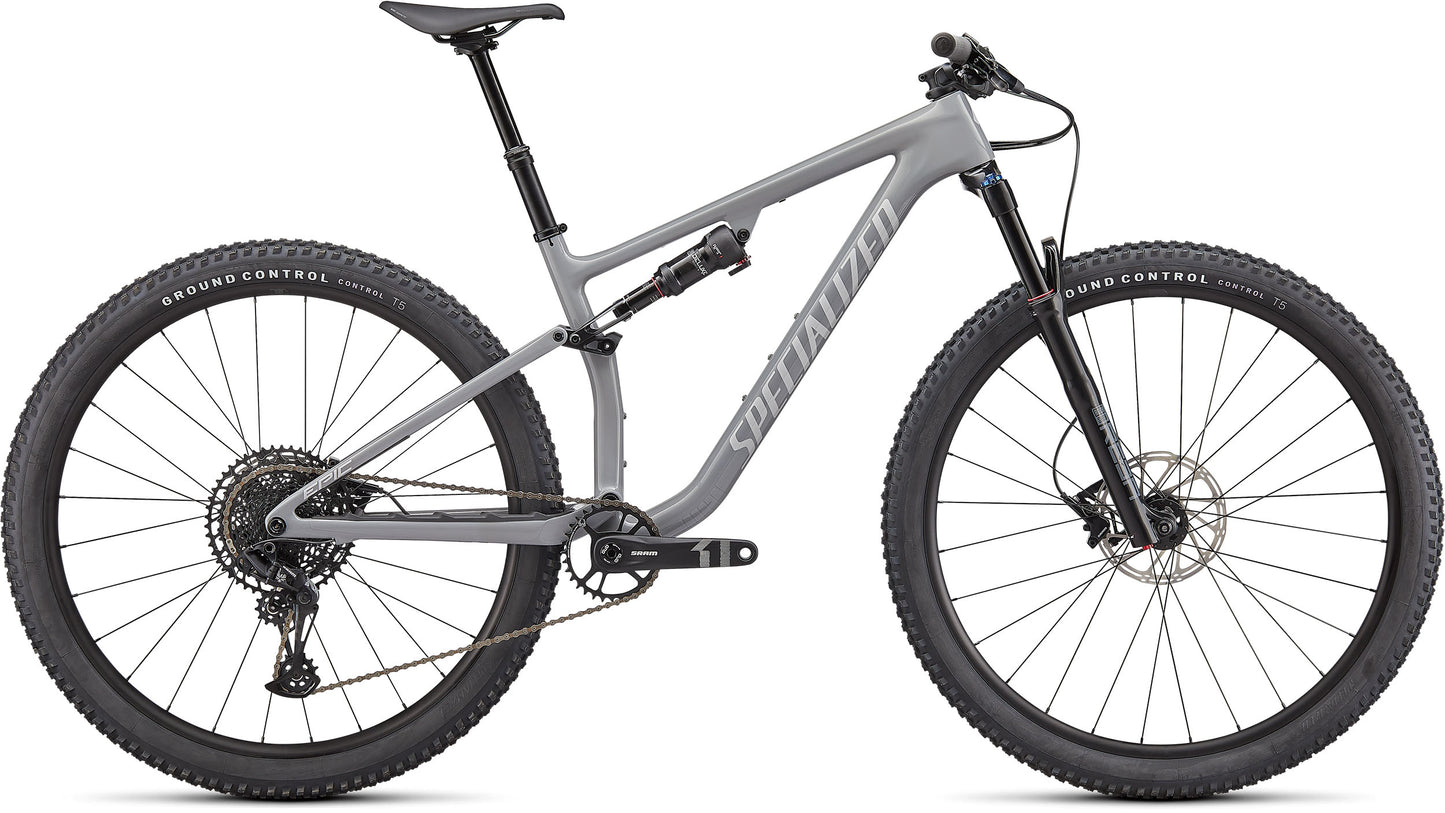

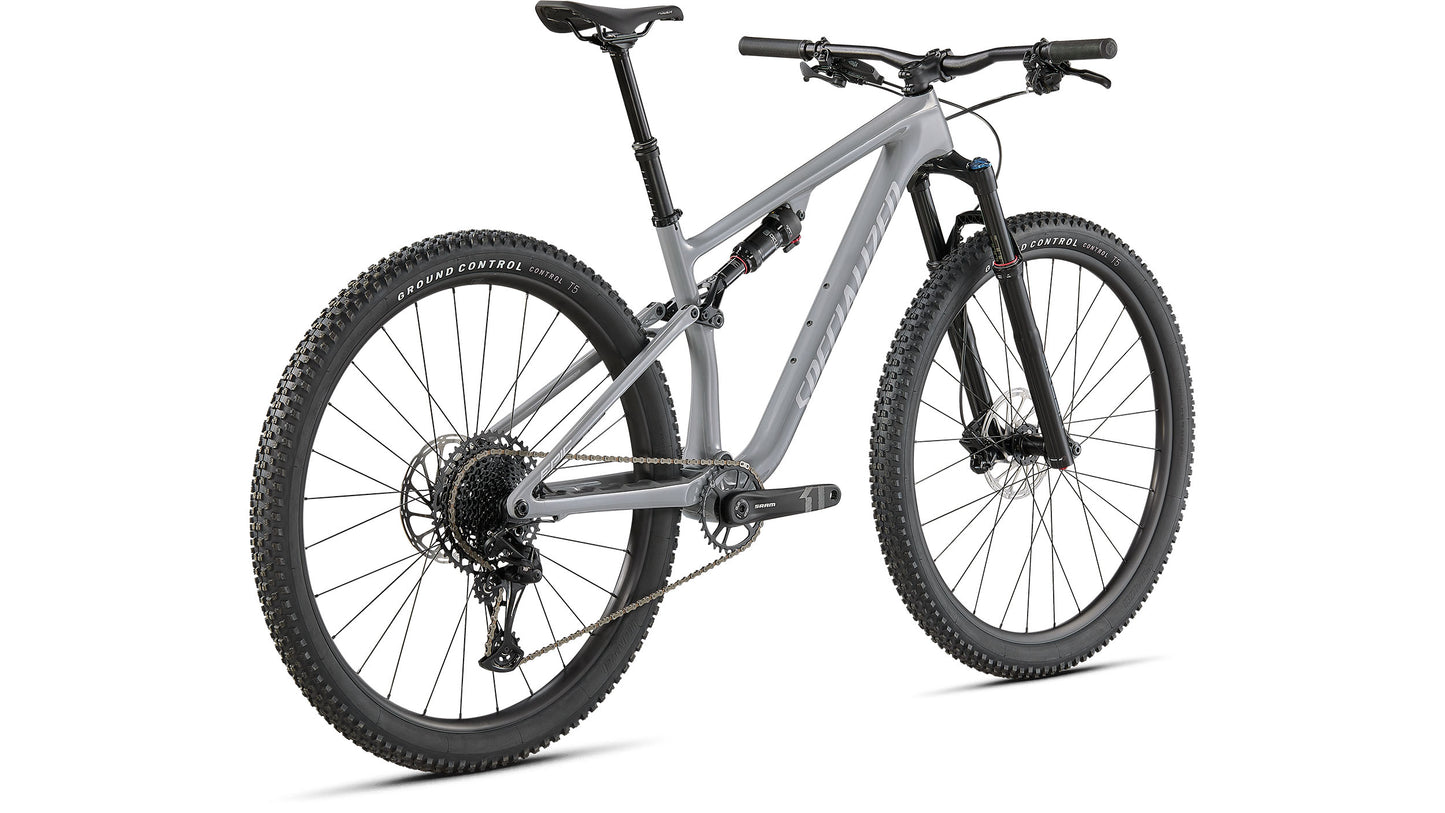

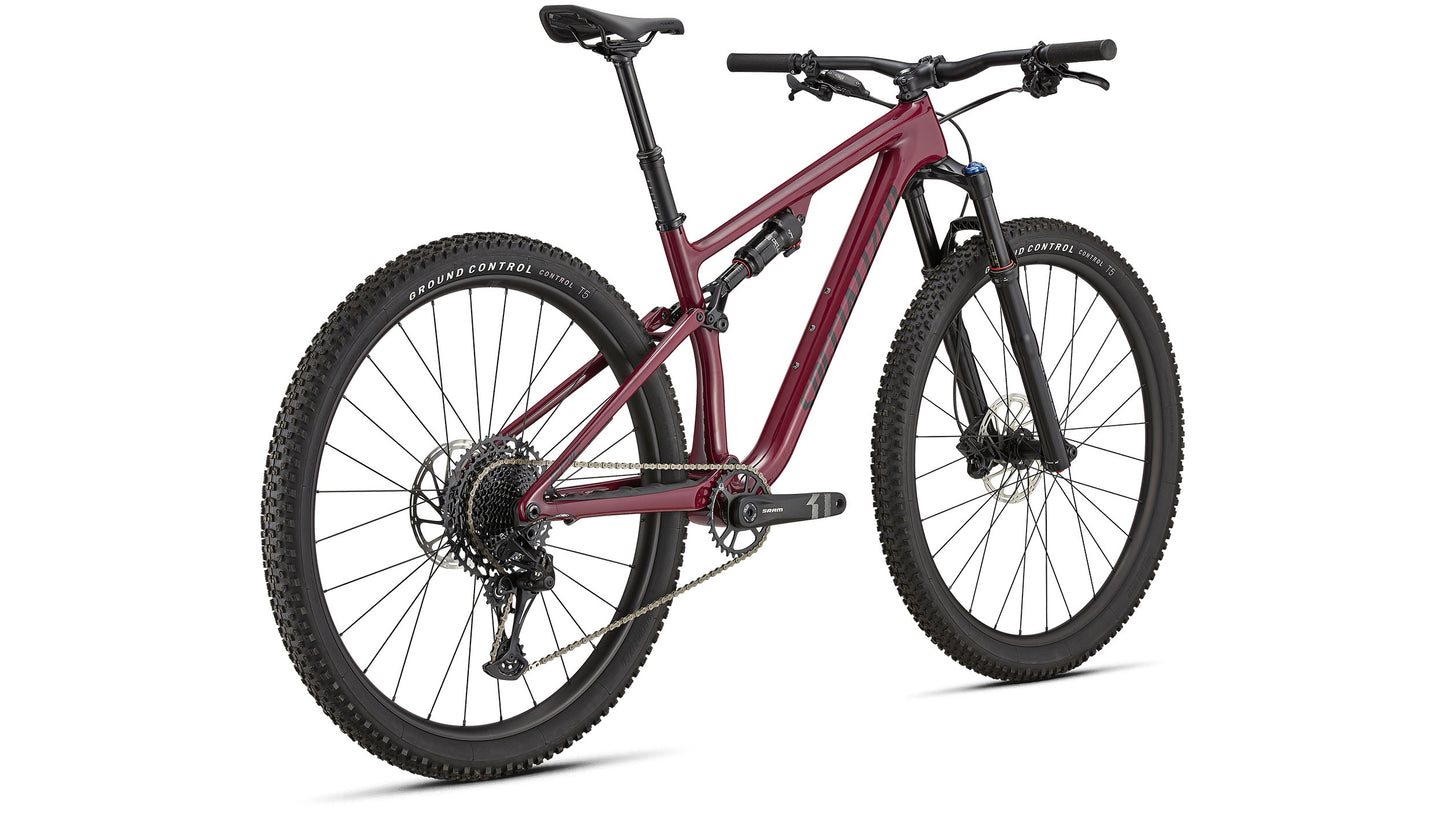

Epic EVO

Epic EVO

94822-7302

R 65,000.00
R 65,000.00
Sale Sold out
Tax included.
Size
Color

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

Epic EVO

Remember when cross country didn’t always involve a starting gun? So do we.

And, while it’ll never turn down a number plate, Epic EVO is well-acquainted with the fact that the next ridgeline makes a perfectly good finish line too, offering an incredible combination of pedaling efficiency and impressive trail-taming capability to get you there faster.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with our Rx XC shock tune to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize the Epic EVO’s handling characteristics.

Epic EVO’s flyweight FACT 11m carbon frame features heavy-hitting SRAM components and RockShox suspension for a package tailor-made for making miles disappear faster than ever.

  • Flip It To Rip It: Tune the ride of the Epic EVO’s FACT 11m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
  • The Reba RL doles out travel with a steady hand courtesy of RockShox's Motion Control damper, while SoloAir adjustability makes dialing in suspension performance a breeze.
  • SRAM’s NX Eagle drivetrain is the benchmark for affordable high performance, delivering crisp shifting and a massive 450% gear range.
    View full details

    Technical Specifications

    DRIVETRAIN

    Chainrings

    32T

    Bottom Bracket

    SRAM DUB, BSA 73mm, Threaded

    Cassette

    SRAM NX Eagle, 12-speed, 11-50t

    Rear Derailleur

    SRAM NX Eagle, 12-speed

    Shift Levers

    SRAM NX Eagle, trigger, 12-speed

    Chain

    SRAM SX Eagle, 12-speed

    Crankset

    SRAM X1000 Eagle, DUB, 170/175mm 32T

    WHEELS

    Rear Hub

    Specialized alloy, sealed cartridge bearings, 6-bolt, 148mmx12mm thru-axle, 28h

    Rims

    Specialized Alloy, Tubeless Ready, 29mm internal width, 28h

    Front Tire

    Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

    Rear Tire

    Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

    Front Hub

    Specialized alloy, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h

    Inner Tubes

    Standard, Presta valve

    COCKPIT

    Saddle

    Body Geometry Power Sport, steel rails

    Handlebars

    Specialized Alloy, 20mm rise, 31.8mm, 760mm wide

    Tape

    Specialized Trail Grips

    Stem

    Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

    SeatPost

    TranzX Dropper, 30.9mm, XS-SM: 100mm, M: 125mm, L-XL: 150mm

    FRAMESET

    Frame

    FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

    Seat Binder

    Specialized Alloy, 34.9mm

    SUSPENSION

    Fork

    RockShox Reba RL, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 120mm of travel

    Rear Shock

    RockShox DELUXE Select+, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

    BRAKES

    Front Brake

    SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor

    Rear Brake

    SRAM Level T hydraulic disc, 2-Piston Caliper, 180mm rotor

    WHEELS & TIRES

    Spokes

    Stainless, 14g

    ACCESSORIES

    SWAT

    SWAT EMT Cage-Mount Tool

    * Specifications are subject to change without notice

    Geometry

     XSSMLXL
    Crank Length165mm170mm175mm175mm175mm
    Seatpost Length100mm125mm125mm150mm150mm
    Handlebar Width760mm760mm760mm760mm760mm
    Stem Length60mm60mm60mm60mm60mm
    Saddle Width155mm155mm143mm143mm143mm
    Stack603mm593mm597mm611mm629mm
    Reach380mm406mm436mm460mm485mm
    Head Tube Length95mm95mm100mm115mm135mm
    Head Tube Angle66.5°66.5°66.5°66.5°66.5°
    BB Height326mm336mm336mm336mm336mm
    BB Drop46mm36mm36mm36mm36mm
    Trail114mm114mm114mm114mm114mm
    Fork Length, Full530mm530mm530mm530mm530mm
    Fork Rake/Offset44mm44mm44mm44mm44mm
    Front Center672mm697mm729mm759mm792mm
    Chainstay Length438mm438mm438mm438mm438mm
    Wheelbase1106mm1132mm1164mm1194mm1227mm
    Bike Standover Height760mm779mm781mm793mm804mm
    Seat Tube Length375mm400mm430mm470mm520mm
    Seat Tube Angle75.5°74.8°74.5°74.5°74.5°
    Top Tube Length, Horizontal536mm567mm602mm629mm659mm
