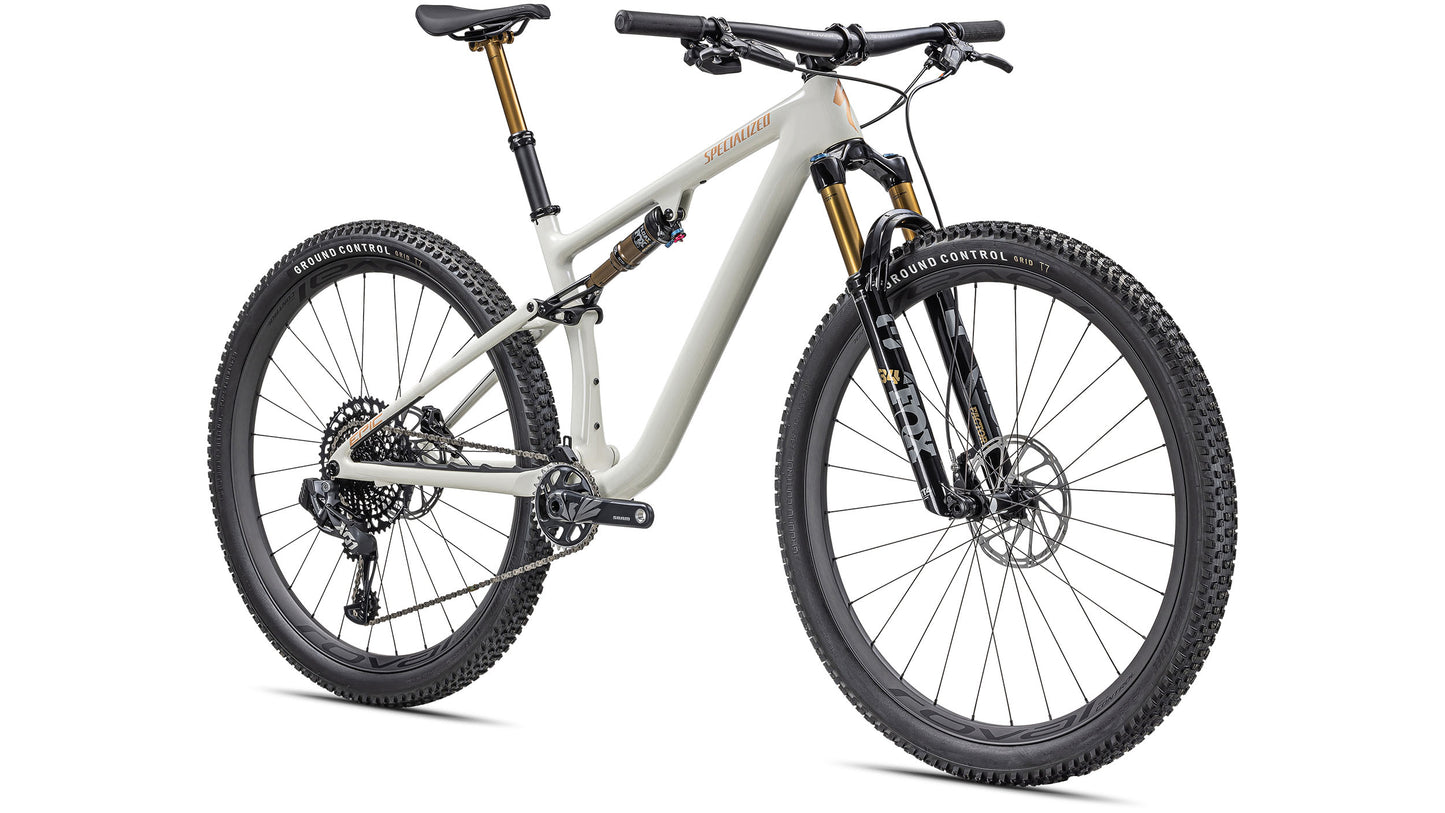

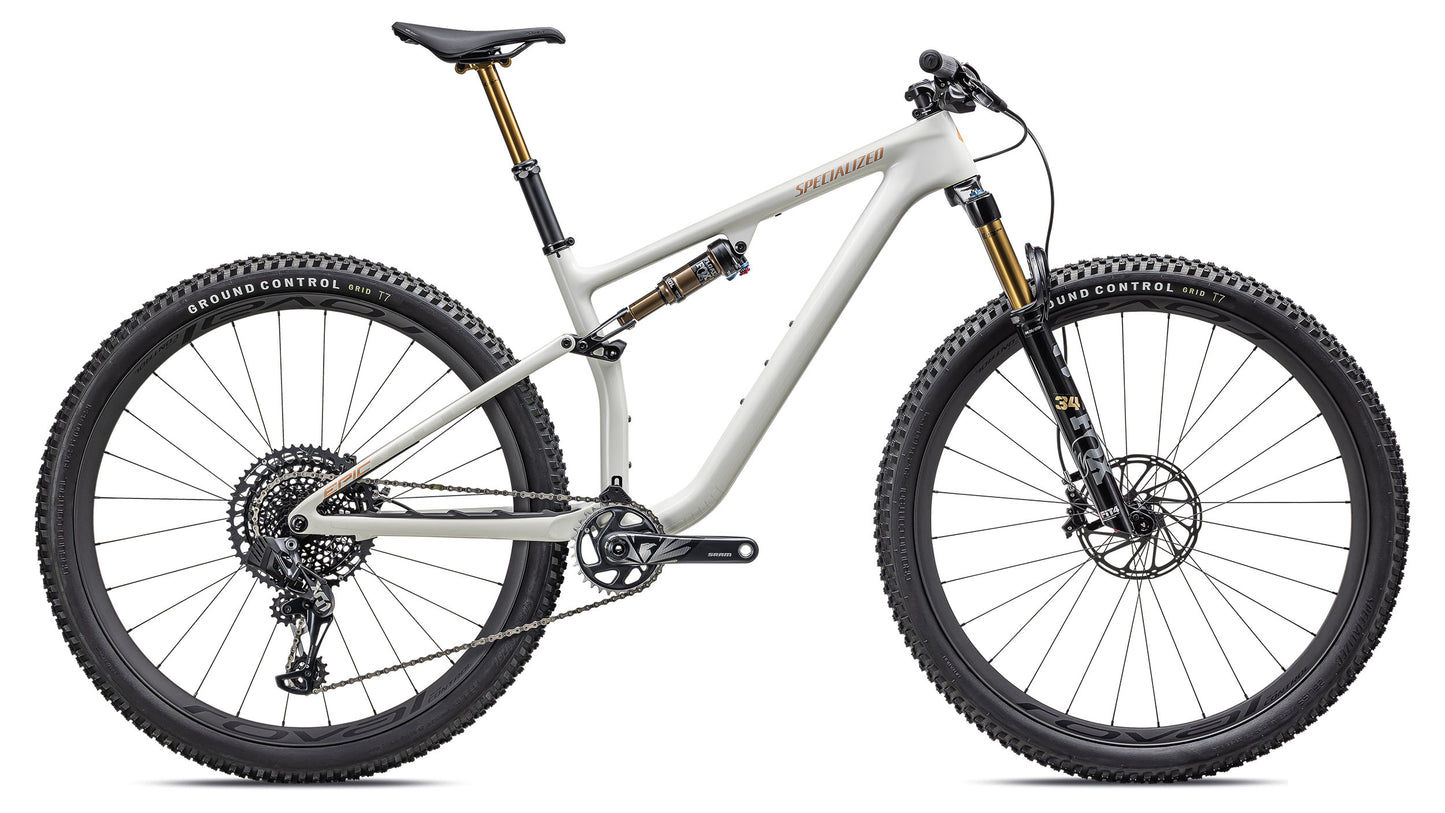

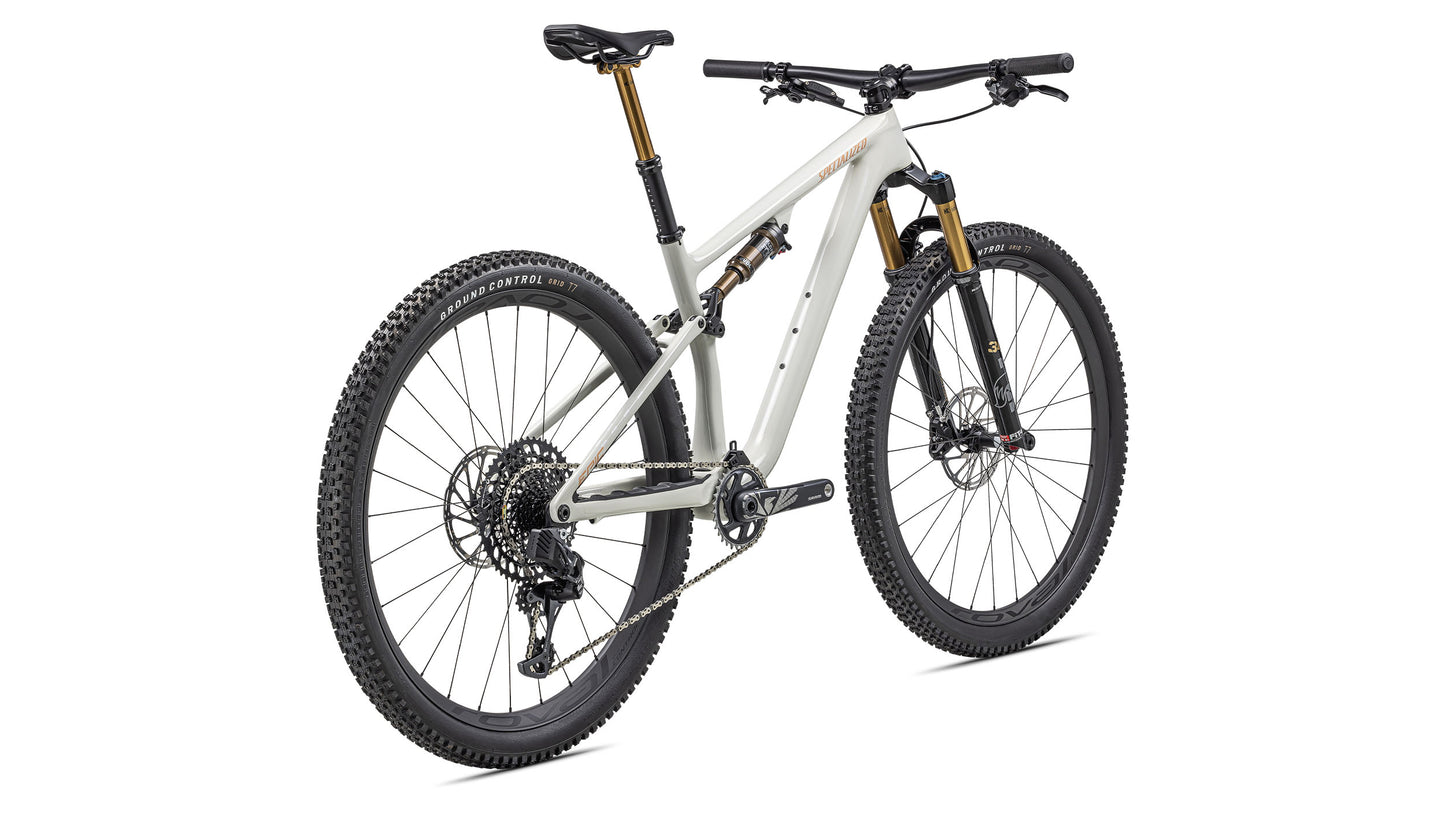

Epic EVO Pro

Epic EVO Pro

94823-1003

R 140,000.00
R 180,000.00 R 140,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

Trail-worthy, meet drool-worthy. Perfect, now that introductions are out of the way, letÕs do our best to try and grasp the fact that the Epic EVO Pro manages to channel the EpicÕs standard-setting pedaling efficiency while delivering jaw-dropping on-trail capabilityÑand look darn good doing it.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, weÕve worked overtime to make sure itÕs been implemented in a way thatÕll have you saying ÔWhoa!Õ as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the EpicÕs standard-setting efficiency as possible, the EVOÕs new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. ItÕs also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVOÕs handling characteristics.

Dressed to impress, the Epic EVO Pro sports top-shelf Fox Factory suspension front and rear to keep things poised when the going gets rough, while the silky shifts and rock-solid performance of Shimano's 12-speed XTR group will never go out of style.

View full details

Technical Specifications

Frame
FACT 11m Full Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

Rear Shock
FOX FLOAT DPS Factory, Rx XC Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x40mm

Fork
FOX FLOAT 34 Factory, Fit4 damper, Kashima Coating, 15x110mm, 44mm offset, 120mm of travel

Stem
Race Face Turbine R, 60mm, 35mm clamp

Tape
Specialized Trail Grips

Handlebars
Roval Control Rise Carbon Handlebar, 760mm wide, 20mm rise, 35mm

Front Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm rotor

Rear Brake
SRAM G2 RSC, 4-piston caliper, hydraulic disc, 180mm rotor

Shift Levers
SRAM Eagle AXS Rocker Paddle

Rear Derailleur
SRAM X01 Eagle AXS

Cassette
SRAM XG-1295 Eagle, 10-52t

Chain
SRAX X01 Eagle, 12-speed

Crankset
SRAM X1 Carbon, DUB, S:170mm, M-XL: 175mm

Chainrings
32T

Bottom Bracket
SRAM DUB, BSA 73mm, Threaded

Rims
Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h

Front Hub
DT Swiss 350, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h straight -pull

Rear Hub
DT Swiss 350 straight-pull, 6-bolt, DT Swiss Ratchet, 12x148mm thru axle, XD freehub body, 28h straight-pull

Spokes
DT Swiss Comp Race

Front Tire
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Rear Tire
Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Inner Tubes
Specialized Turbo Tube

SeatPost
Fox Transfer Factory, 30.9, 1X remote, (S:125mm, M/L: 150mm, XL: 175mm)

Saddle
Body Geometry Power Expert, titanium rails

Seat Binder
Specialized Alloy, 34.9mm

SWAT
SWAT CC steerer tube integrated tool with chain tool and link, detachable SWAT box

Geometry




 SMLXL
Crank Length170mm175mm175mm175mm
Stem Length60mm60mm60mm60mm
Handlebar Width760mm760mm760mm760mm
Seatpost Length125mm150mm150mm175mm
Saddle Width155mm143mm143mm143mm
Stack593mm597mm611mm629mm
Reach406mm436mm460mm485mm
Head Tube Length95mm100mm115mm135mm
Head Tube Angle66.5°66.5°66.5°66.5°
BB Height336mm336mm336mm336mm
BB Drop36mm36mm36mm36mm
Trail114mm114mm114mm114mm
Fork Length, Full530mm530mm530mm530mm
Fork Rake/Offset44mm44mm44mm44mm
Front Center697mm729mm759mm792mm
Chainstay Length438mm438mm438mm438mm
Wheelbase1132mm1164mm1194mm1227mm
Bike Standover Height779mm781mm793mm804mm
Seat Tube Length400mm430mm470mm520mm
Seat Tube Angle74.8°74.5°74.5°74.5°
Top Tube Length, Horizontal567mm602mm629mm659mm

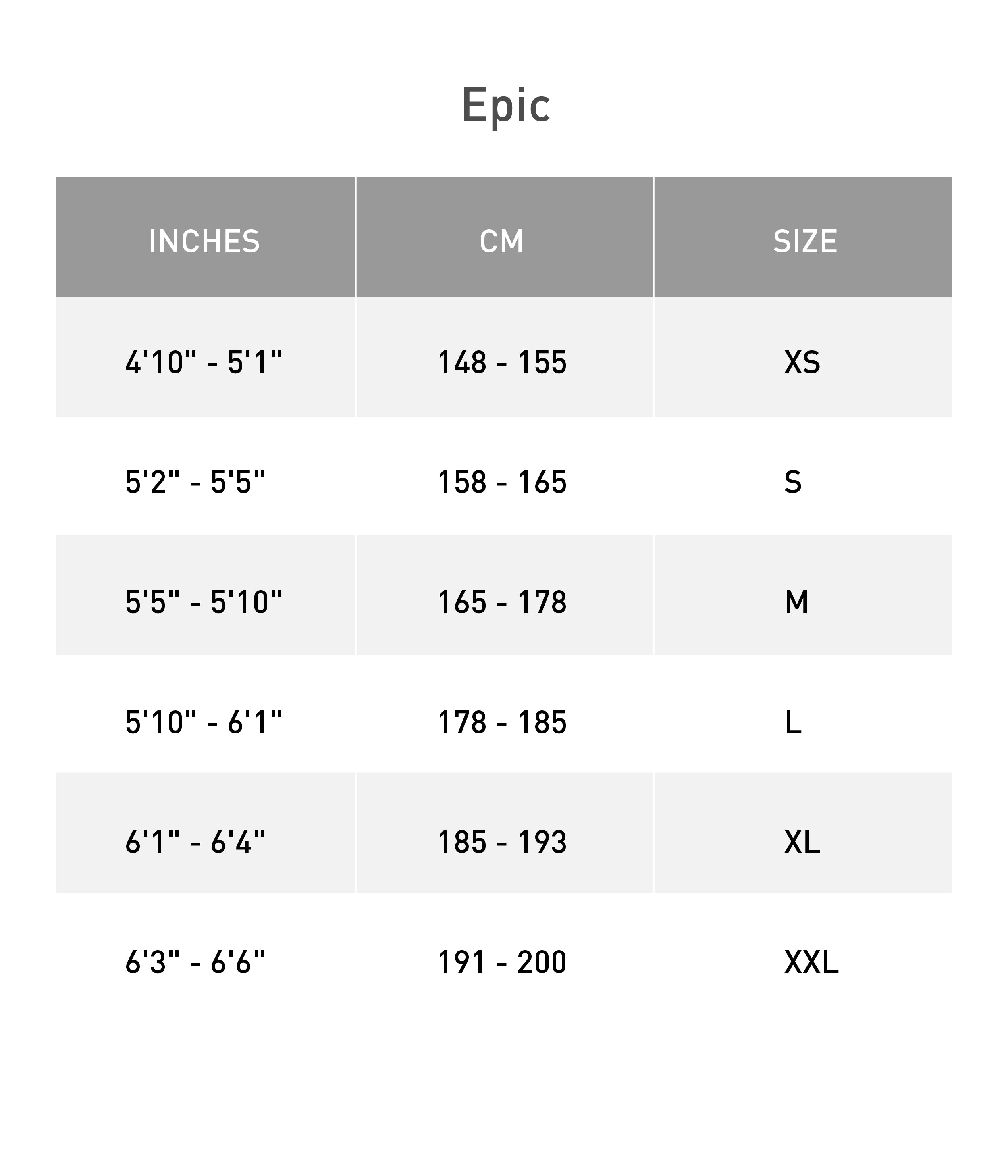

Size Guide
