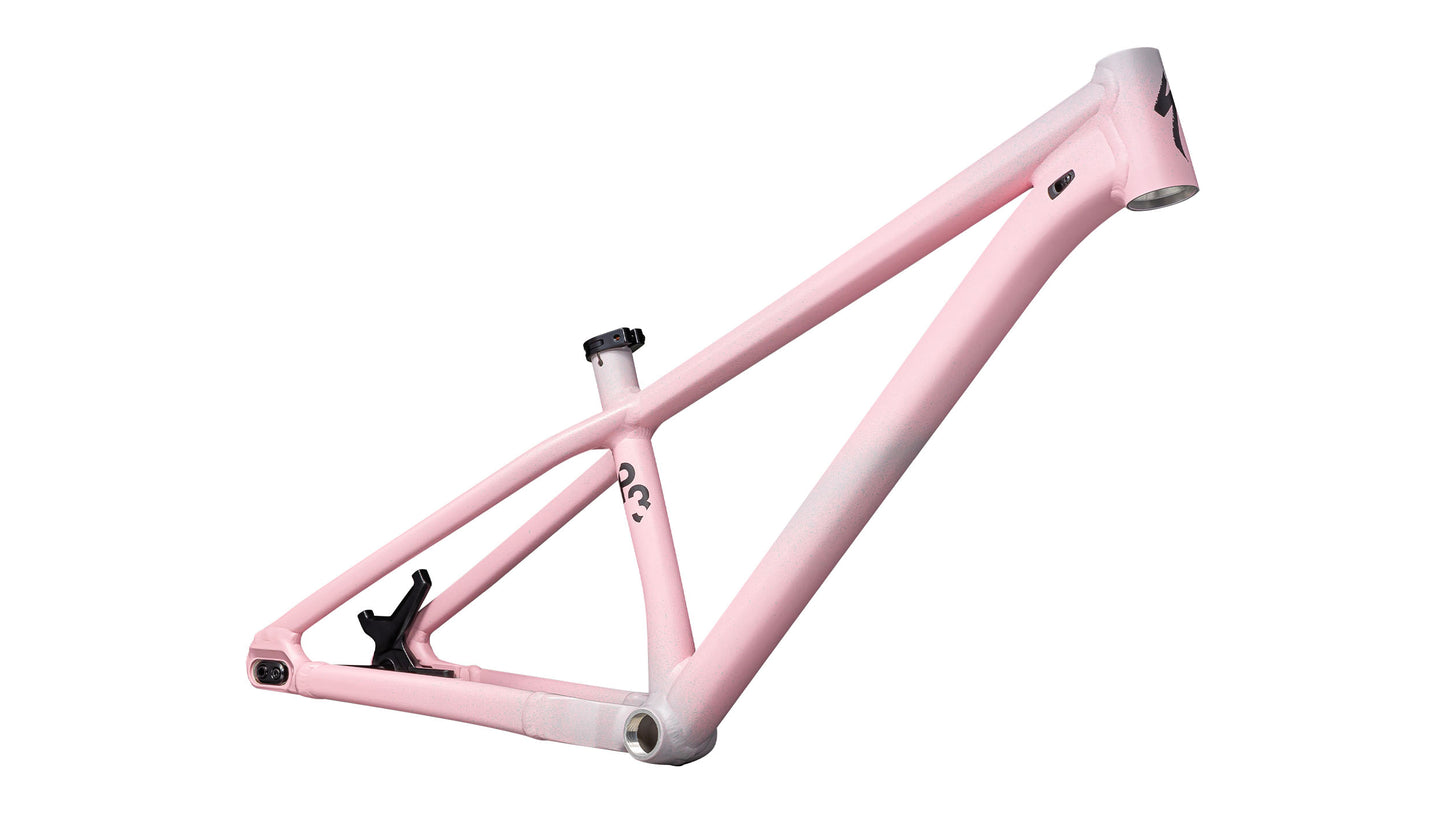

P.3 Frame
This totally redesigned P.Series frame gives riders of all sizes a jumping off point to a life on bikes. The lightweight, but tough alloy frame is designed to take all the hits and keep rolling—across all frame sizes. Our approach to these robust bikes centers around delivering a simple, high-quality platform that's versatile for all riders, and packs in category-first features that make a difference to the rider.
SLEEK SIMPLICITY — For the rider focusing on progression, eliminating every other variable is paramount. The durable lightweight alloy frame of the P.Series stands up to the tough demands of a modern DJ rig and accepts internally routed cables.
SIZED FOR ALL — Frames available in dedicated 20”, 24”, and 26” configurations as well as the P.4 that can run both 26” and 27.5” (P.4 is spec’d with 27.5”).
REIMAGINE YOUR RIDE — P.Series frames are dropper ready, derailleur compatible, and use adjustable dropouts.
TOUGH TECH — Boost spacing in the rear, a tapered headtube, and threaded bottom-bracket make P.Series stiff and easy to maintain.
- Specialized P.3, A1 Premium Alloy, 27.5", fully-butted tubing, dropper post compatible and 26" wheel compatible.
Share
Technical Specifications
FRAMESET
Seat Binder
Alloy, single-bolt, 34.9mm
Frame
Specialized P.3, A1 Premium Alloy, 26", Fully Butted Tubing, Tapered Head Tube, BSA 73mm BB Shell, 12x148TA Sliding Dropouts, Single Speed or Geared Compatible, 52mm CL, Internal cable routing, 30.9 Seat Tube, Dropper Post Compatible, 27.5" Wheel Compatible
WEIGHT
Weight
2.06kg (4 lb, 8.7 oz)
Geometry
Seatpost Length | 0 |
---|---|
Stack | 563 |
Reach | 415 |
Head-Tube Length | 115 |
Head-Tube Angle | 68.5 |
B-B Height | 318 |
B-B Drop | 22 |
Trail | 94 |
Fork Length (full) | 480 |
Fork Rake/Offset | 37 |
Front-Center | 668 |
Chain-Stay Length | 385 |
Wheelbase | 1052 |
Top-Tube Length (horizontal) | 598 |
Bike Stand-Over Height | 691 |
Seat-Tube Length | 335 |
Seat-Tube Angle | 72 |
Wheel Size | 26 |
Size Chart
