Rims
Wheel Size / ETRTO
622 × 21 (700c)
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (Centerlock)
Rim Construction
Carbon Clincher Hooked
Valve Stem Length
Roval Tubeless Vlave, Alloy 80mm
Hole Count
Front: 18H, Rear: 24H

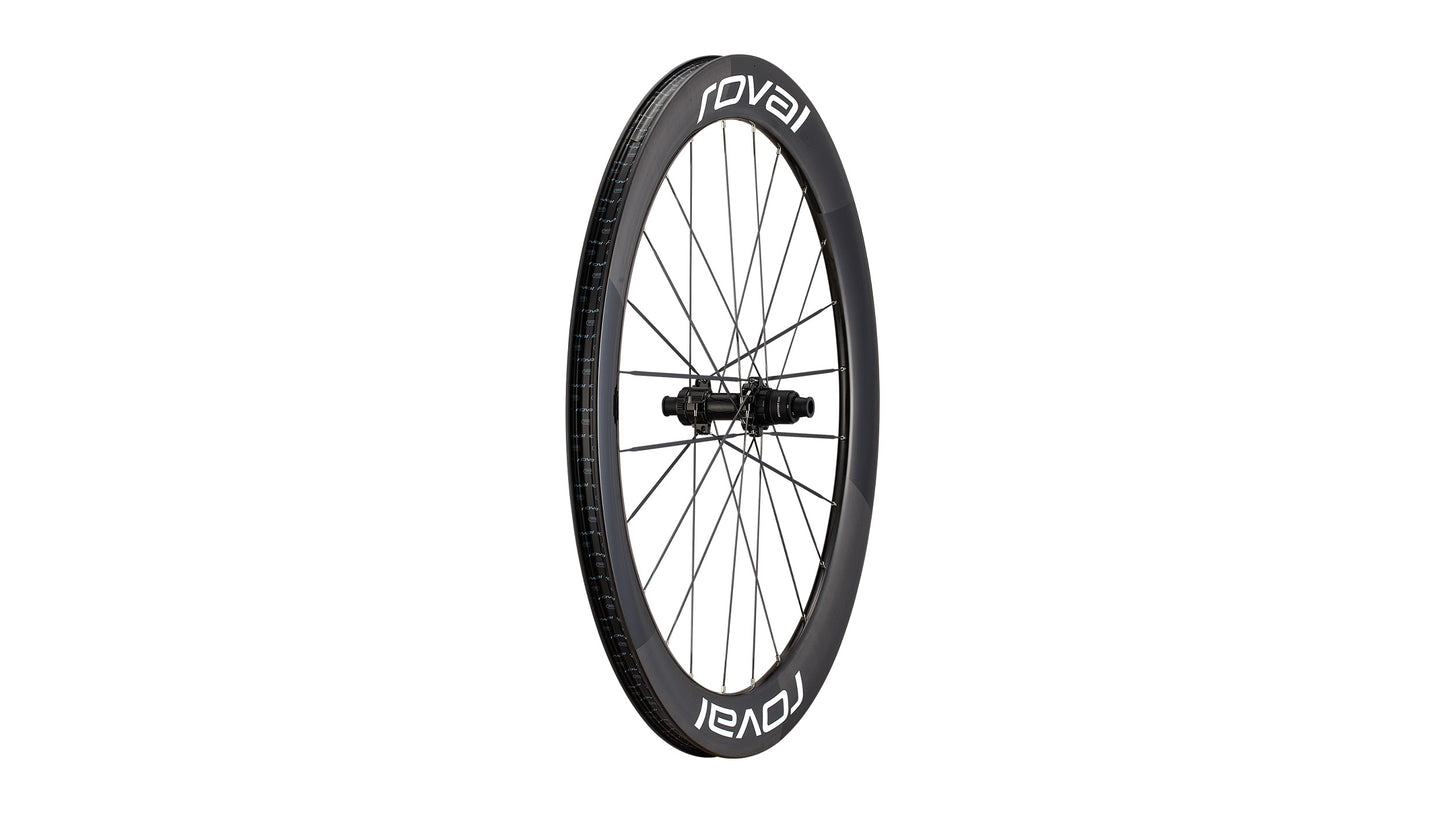

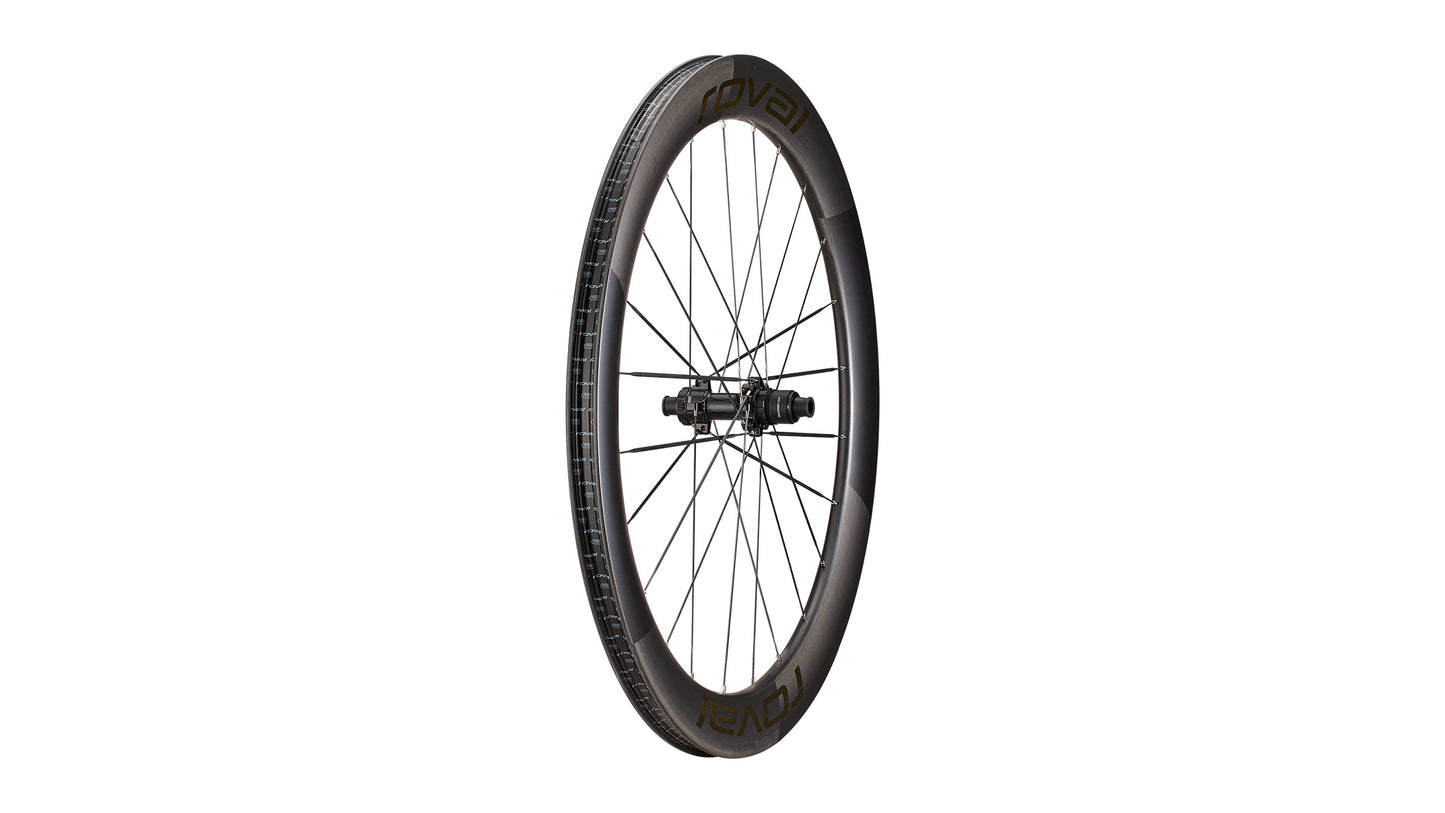

Rear Rim
Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Rear Rim Dimensions
Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm

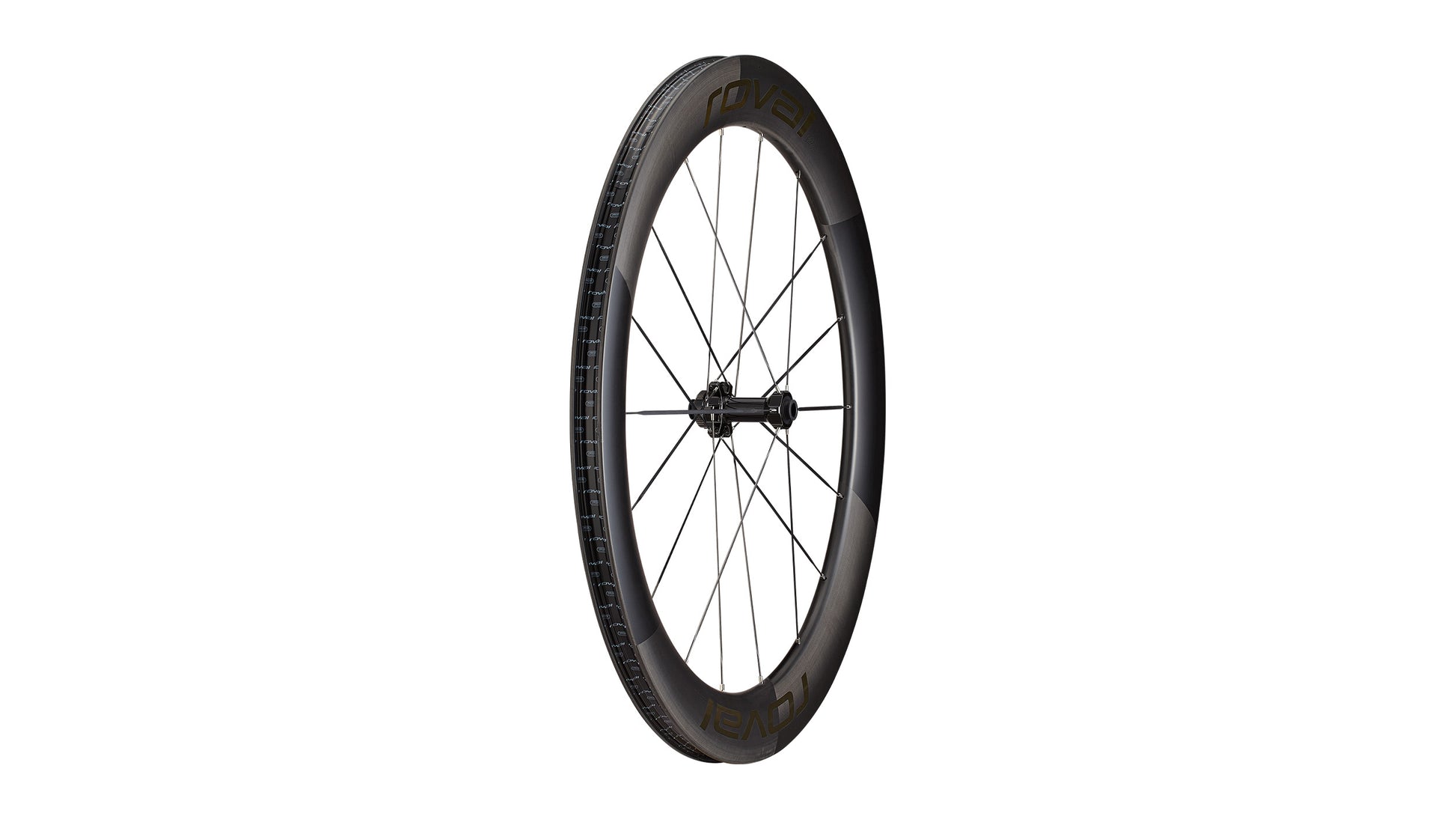

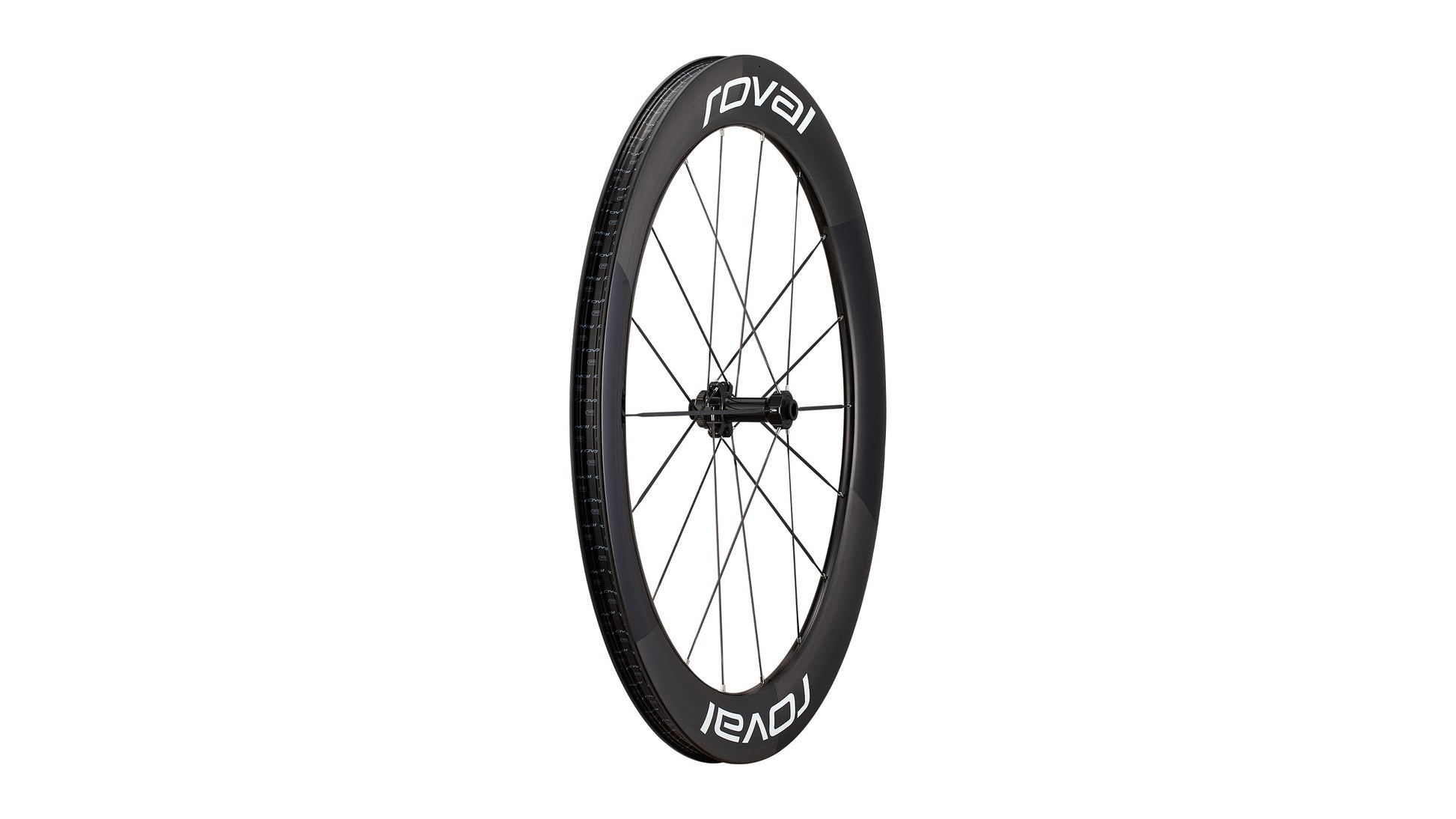

Front Rim
Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)

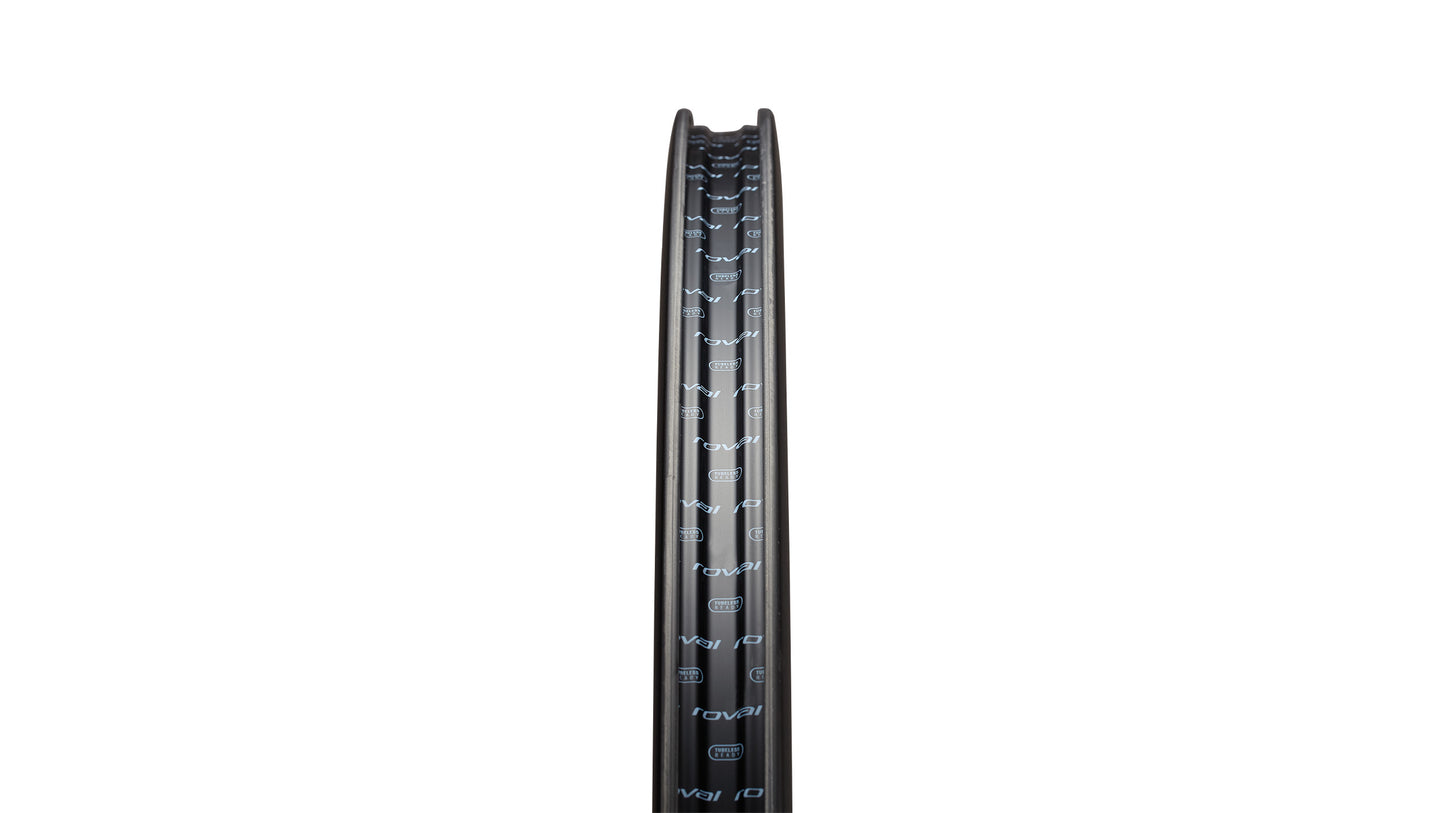

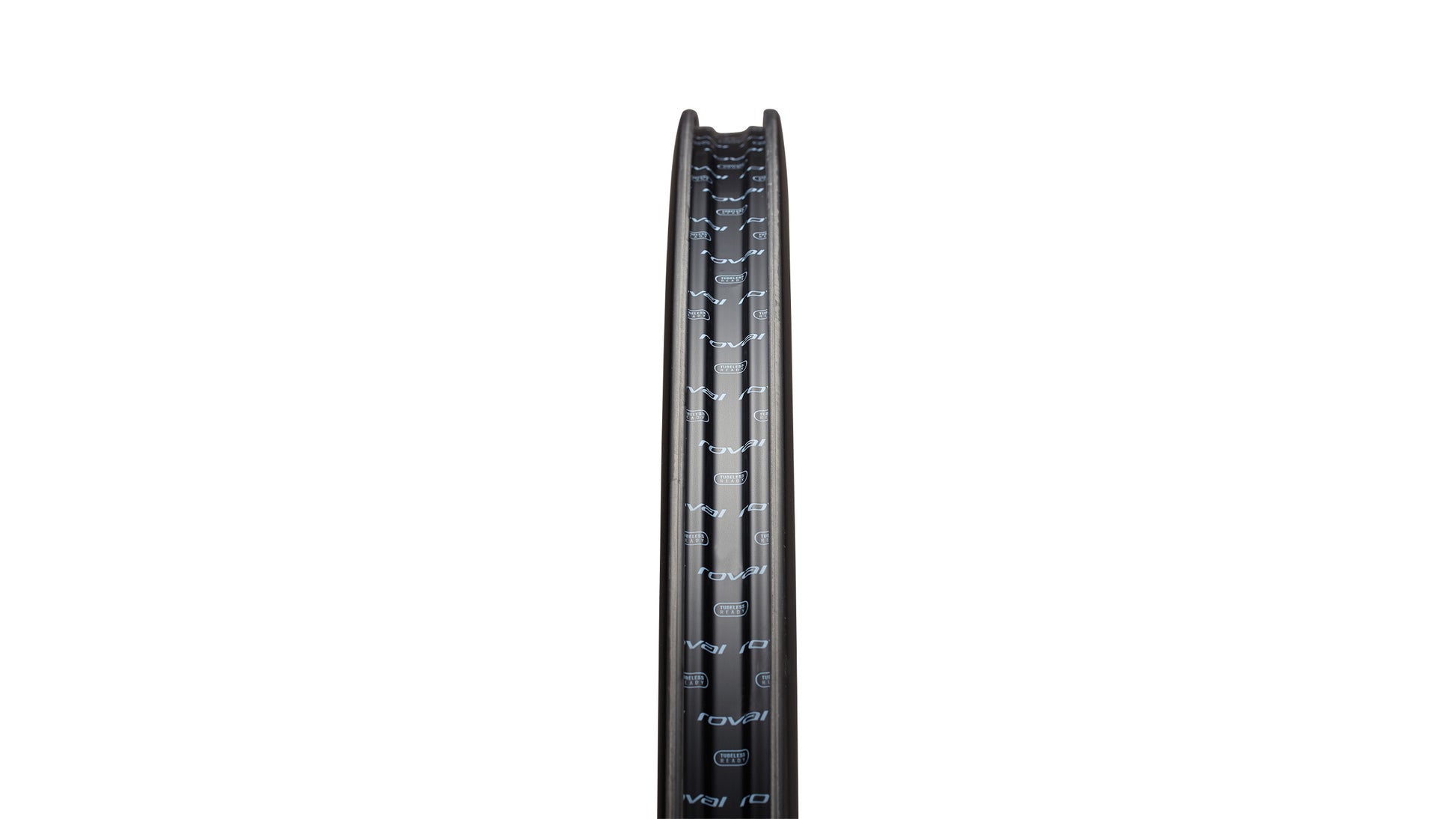

Front Rim Dimensions
Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Hubs

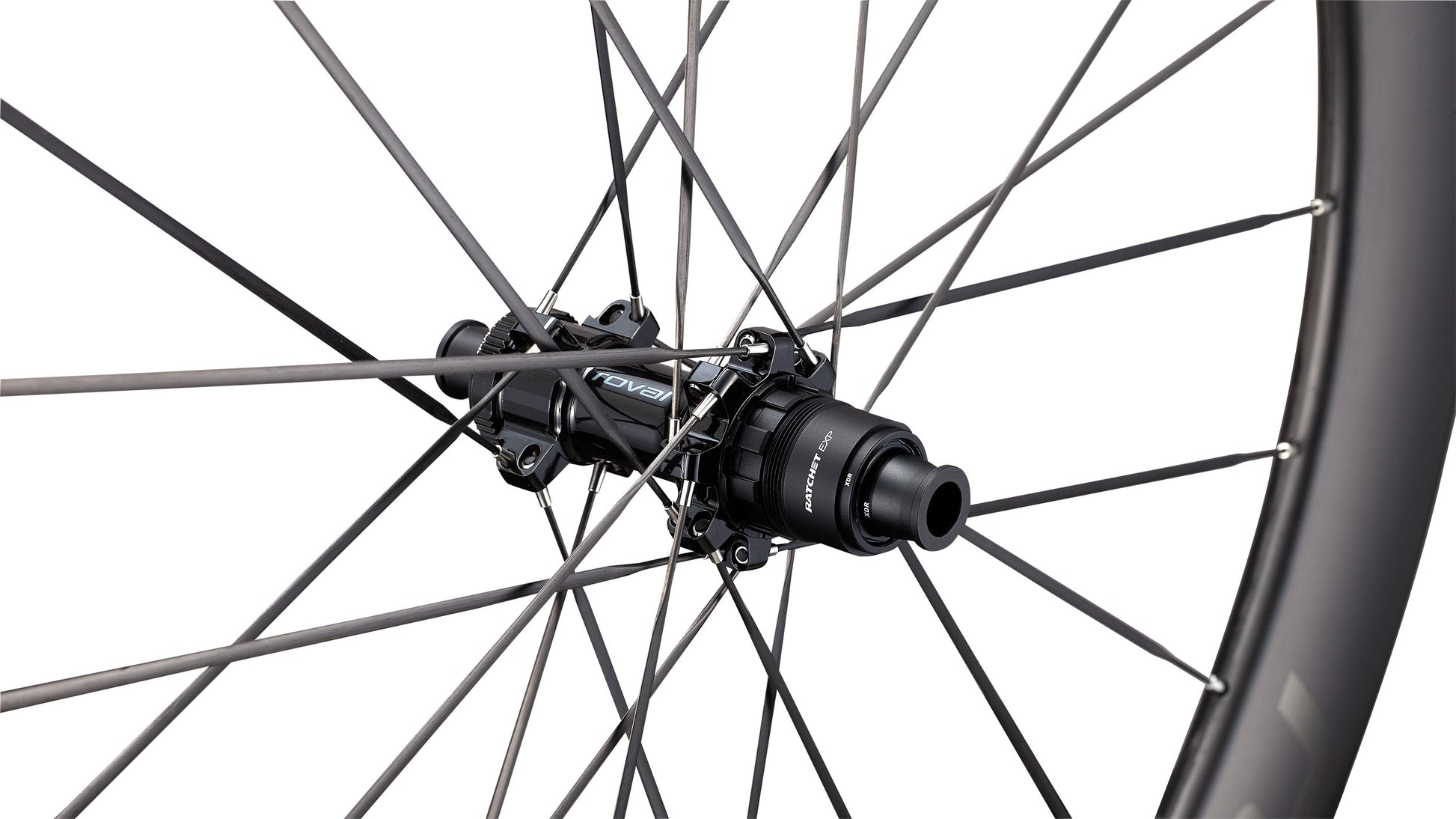

Rear Hub
Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD-R
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)

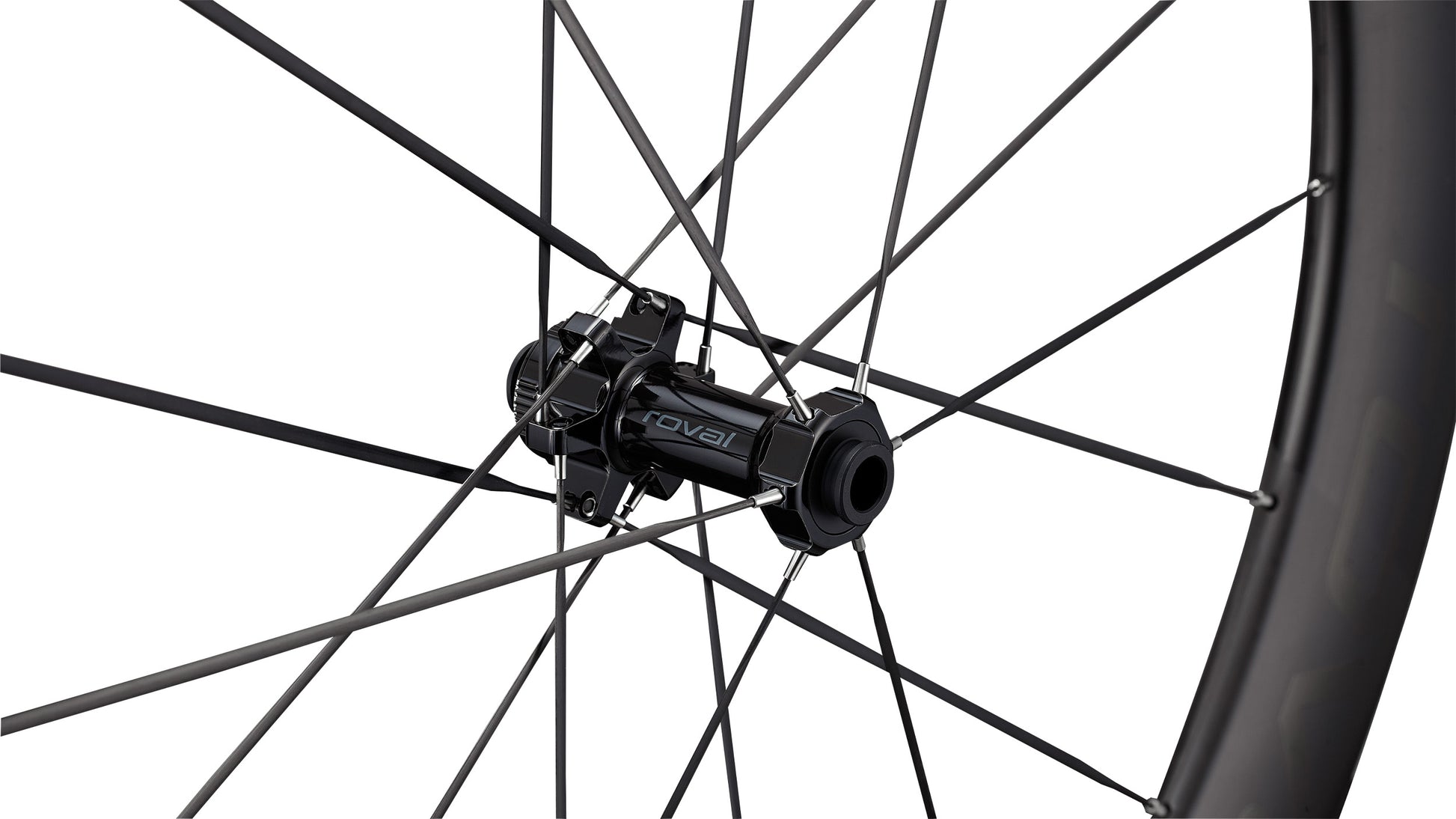

Front Hub
Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Spokes & Nipples
Nipples
Arris MK4 Spoke Nipple Alloy, 6 mm
Rear Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
Front Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
Tire Info
Tubeless Tape Width
25mm
Tire Type
Clincher Tubeless and Clincher Tube Type
Design Tire
RapidAir TLR, 28mm
Approved Tire Widths
24mm-38mm
Max Pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Weight
Wheelset Weight
1395g (with valves and tape)
Rear Weight
755g (with valves and tape)
Front Weight
640g (with valves and tape)
General
Warranty
Limited Lifetime Warranty
Assembly Method
Hand Built
Weight Limit
275 lbs. / 125 kg.
Certifications
ISO 5775-2, UCI Approved
E-bike Approved
No
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
