1 7

SPECIALIZED

S-Works Crux SRAM Force XPLR AXS Build

S-Works Crux SRAM Force XPLR AXS Build

71425-7756B

R 169,999.00
R 169,999.00 R 169,999.00
Sale Sold out
Taxes included.
Colour
Size

Low stock: 1 left

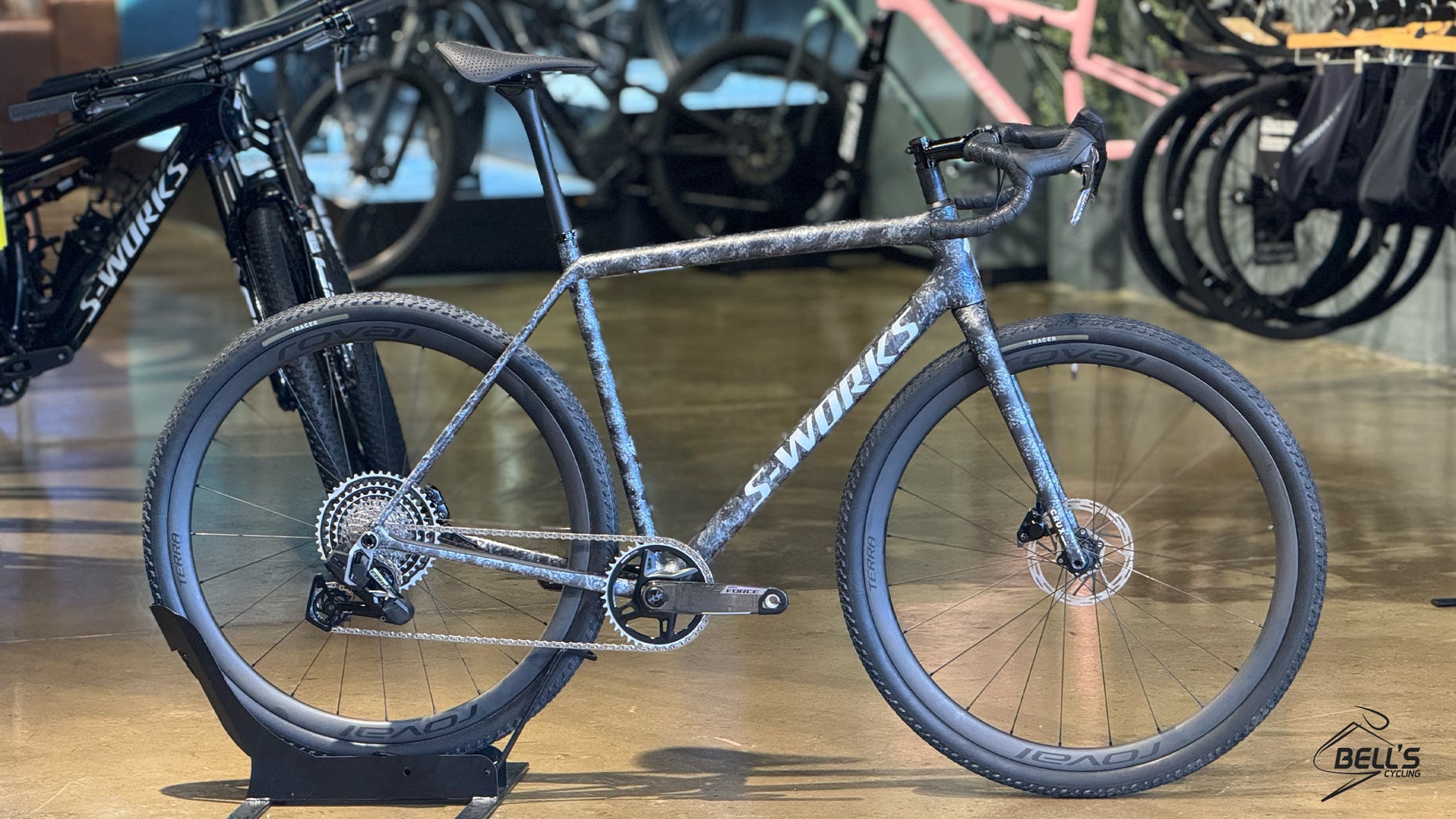

S-Works Crux

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

This S-Works Crux comes spec'd with all-new SRAM Force XPLR AXS for effortless braking, lighter weight, with massive 13 speed gear range, lightweight and durable Roval Terra CL Disc wheels, and 2Bliss Ready, 700x45mm Tracer Pro tires that hookup over nasty terrain.

  • Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
View full details

Technical Specifications

Frameset

Frame

S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Front Brake

NEW SRAM Force AXS E1, hydraulic disc 160mm rotor

Rear Brake

NEW SRAM Force AXS E1, hydraulic disc 160mm rotor

Drivetrain

Chain

NEW SRAM Force E1

Bottom Bracket

SRAM DUB BSA

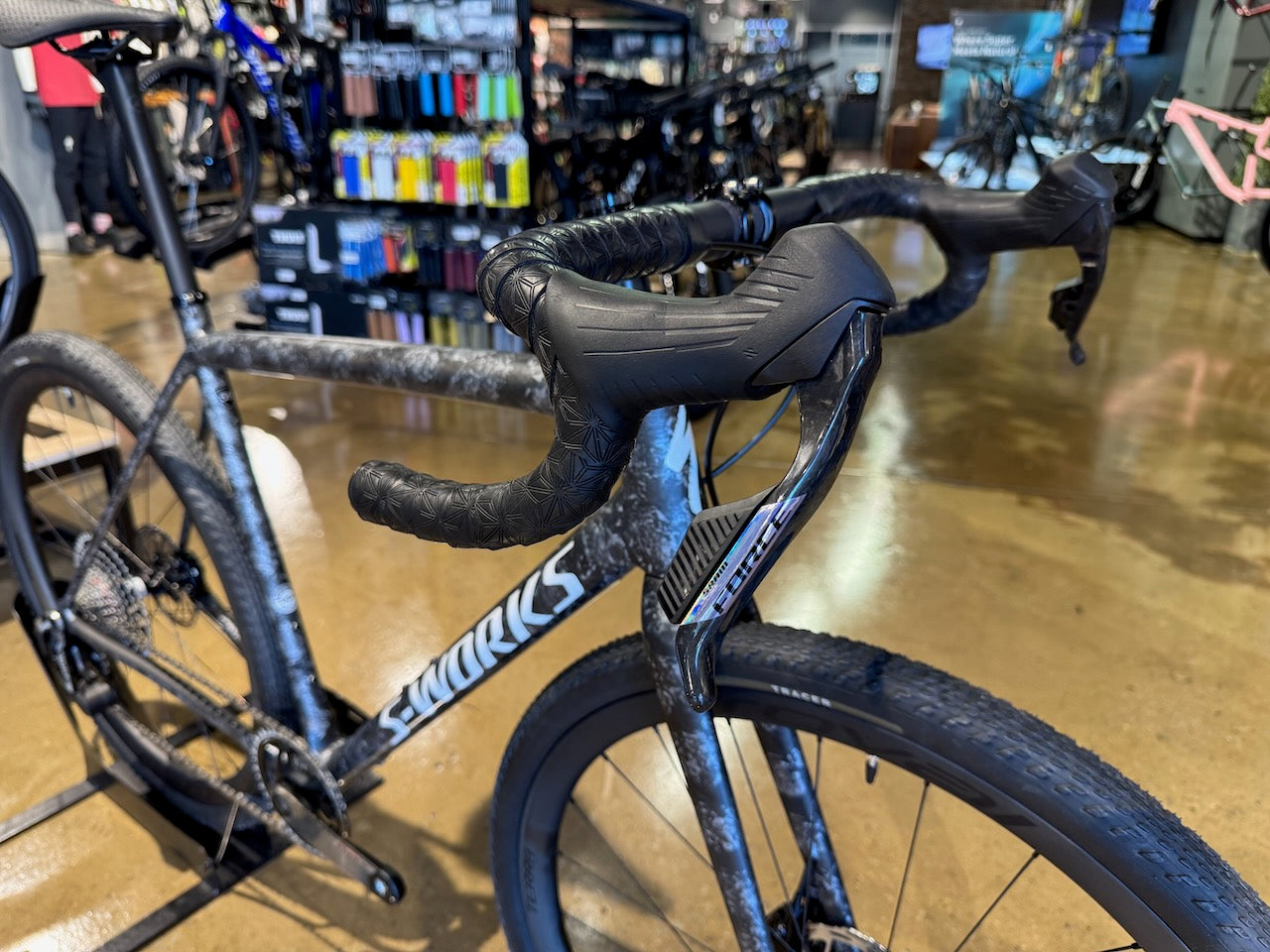

Shift Levers

NEW SRAM Force AXS E1 HRD

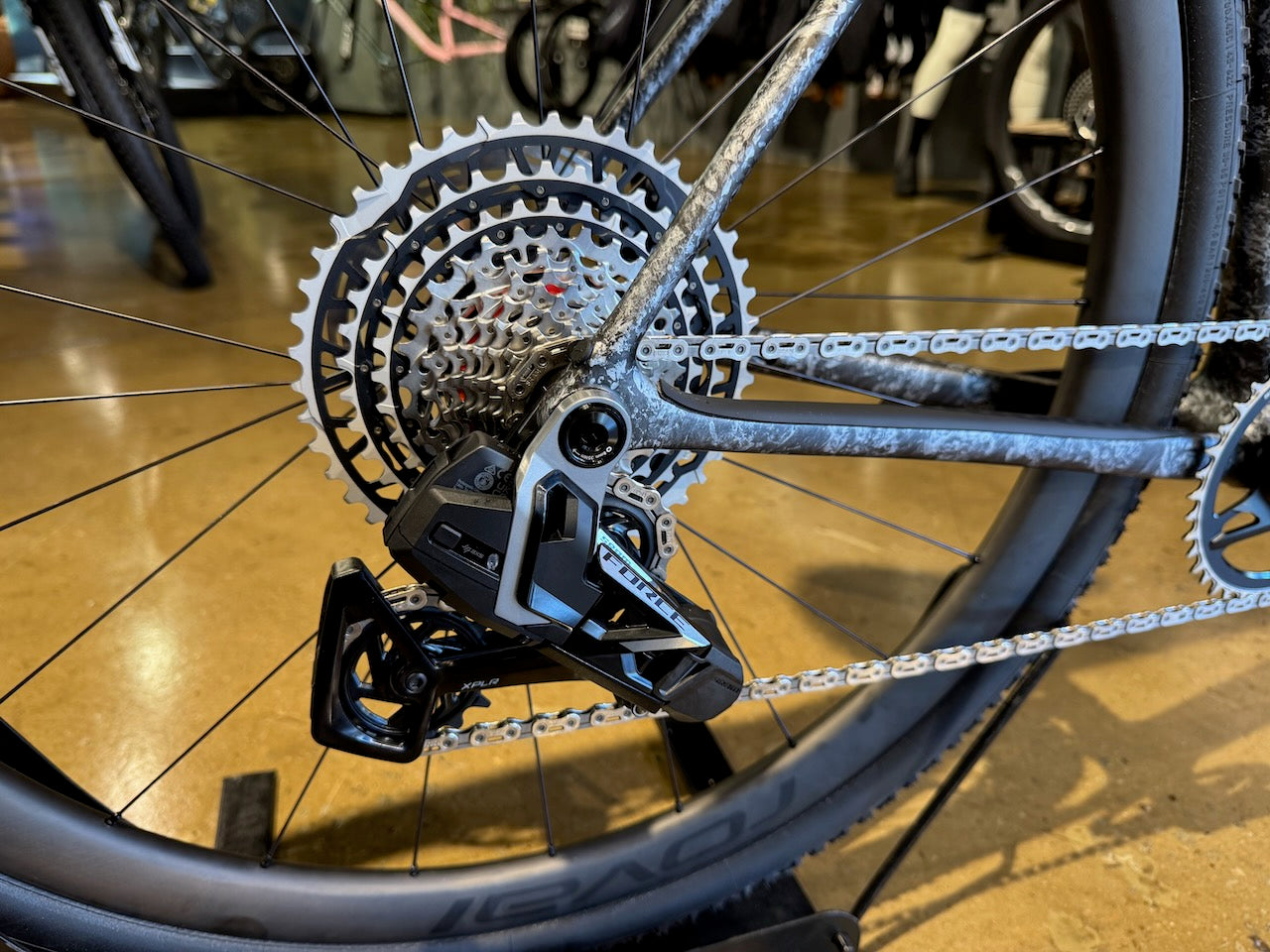

Rear Derailleur

NEW SRAM Force XPLR AXS E1

Cassette

NEW SRAM Force XPLR XG-1371, 13sp, 10-46t

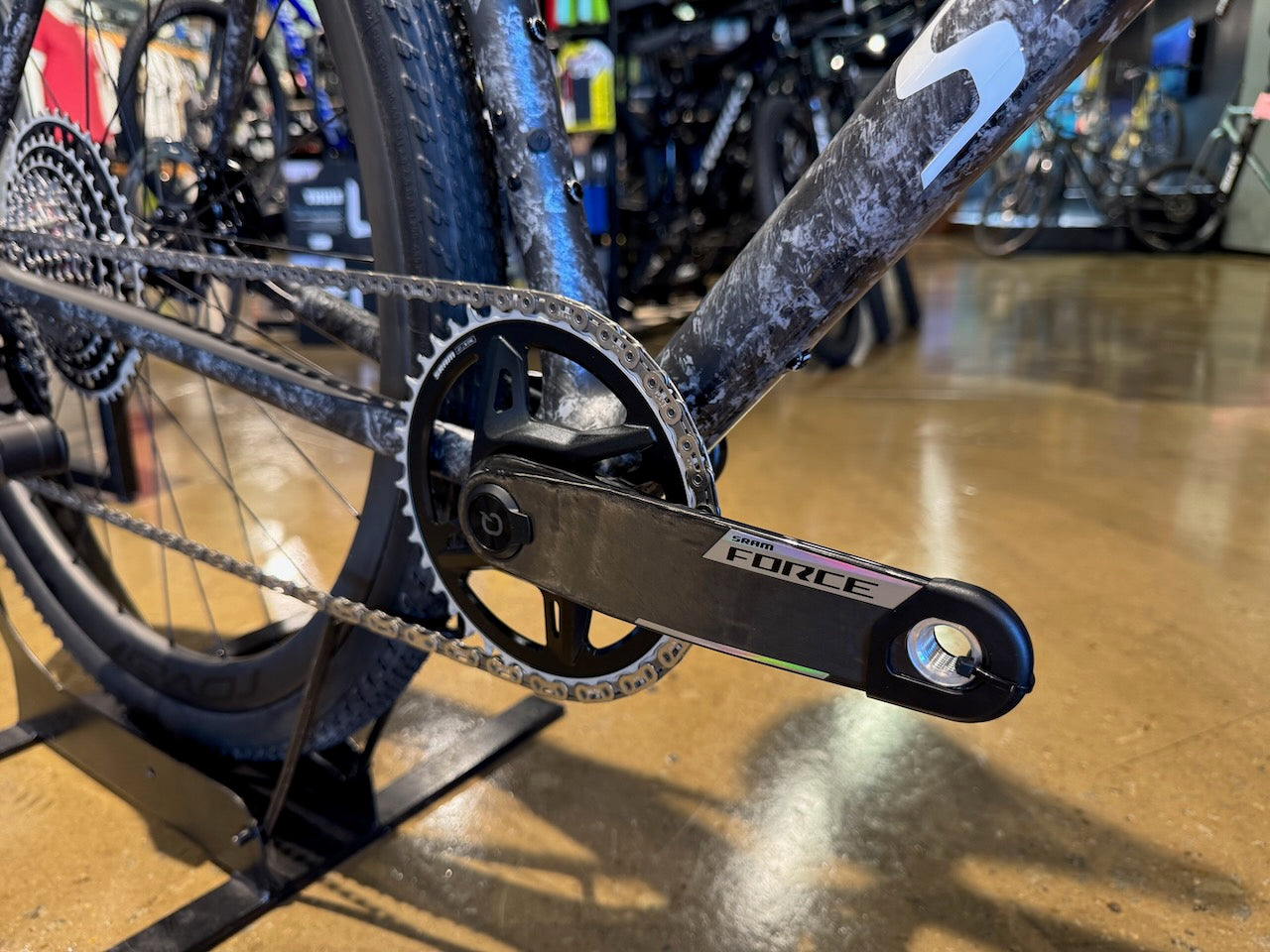

Crankset

NEW SRAM Force E1 XPLR, DUB WIDE, 40T, Quarq Power Meter

Chainrings

40T

Wheels & Tires

Front Tire

Tracer 700x45, Tubeless Ready

Rear Tire

Tracer 700x45, Tubeless Ready

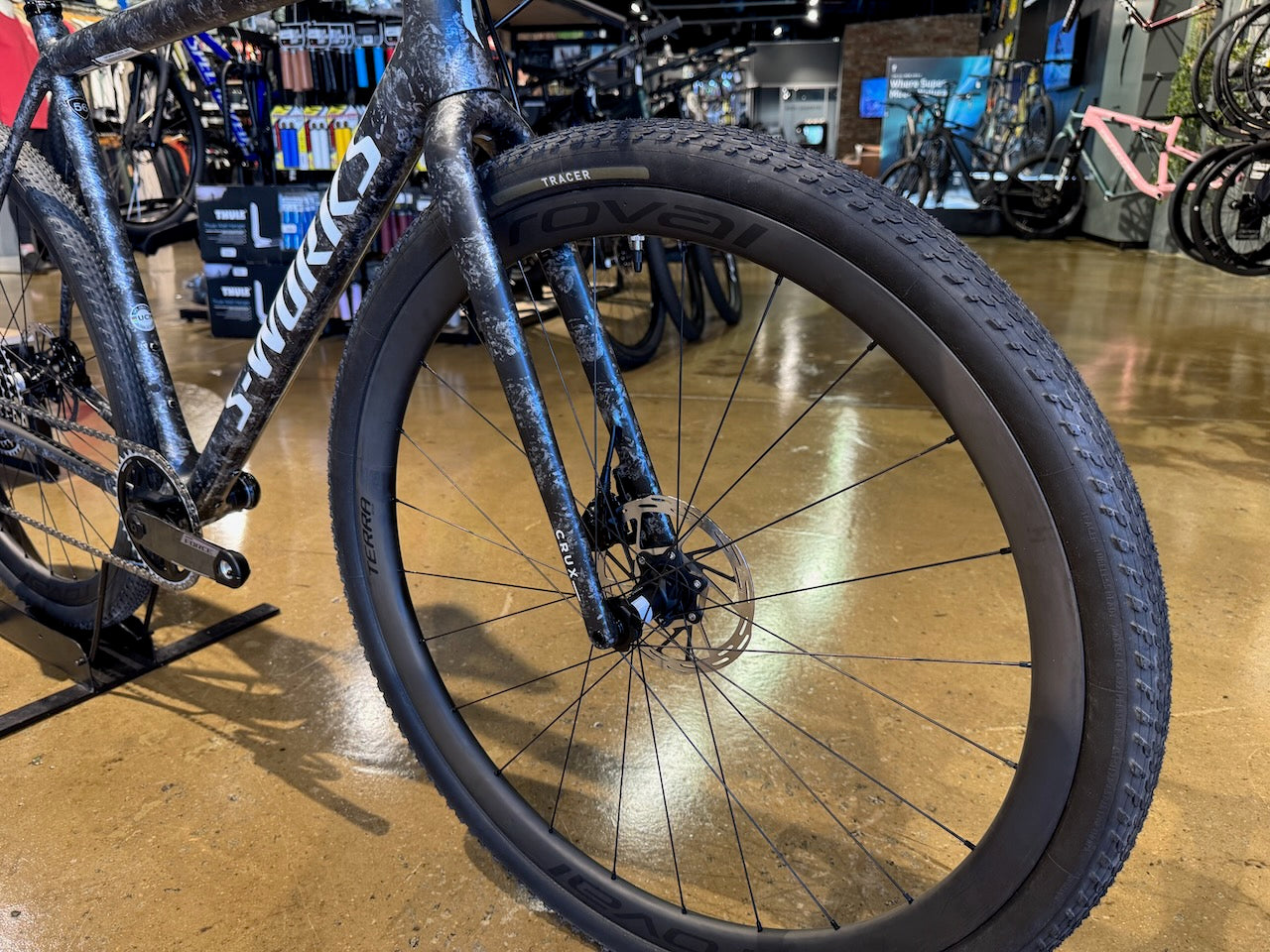

Front Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes

Rear Wheel

Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes

Inner Tubes

Presta, 700X32-50mm

Cockpit

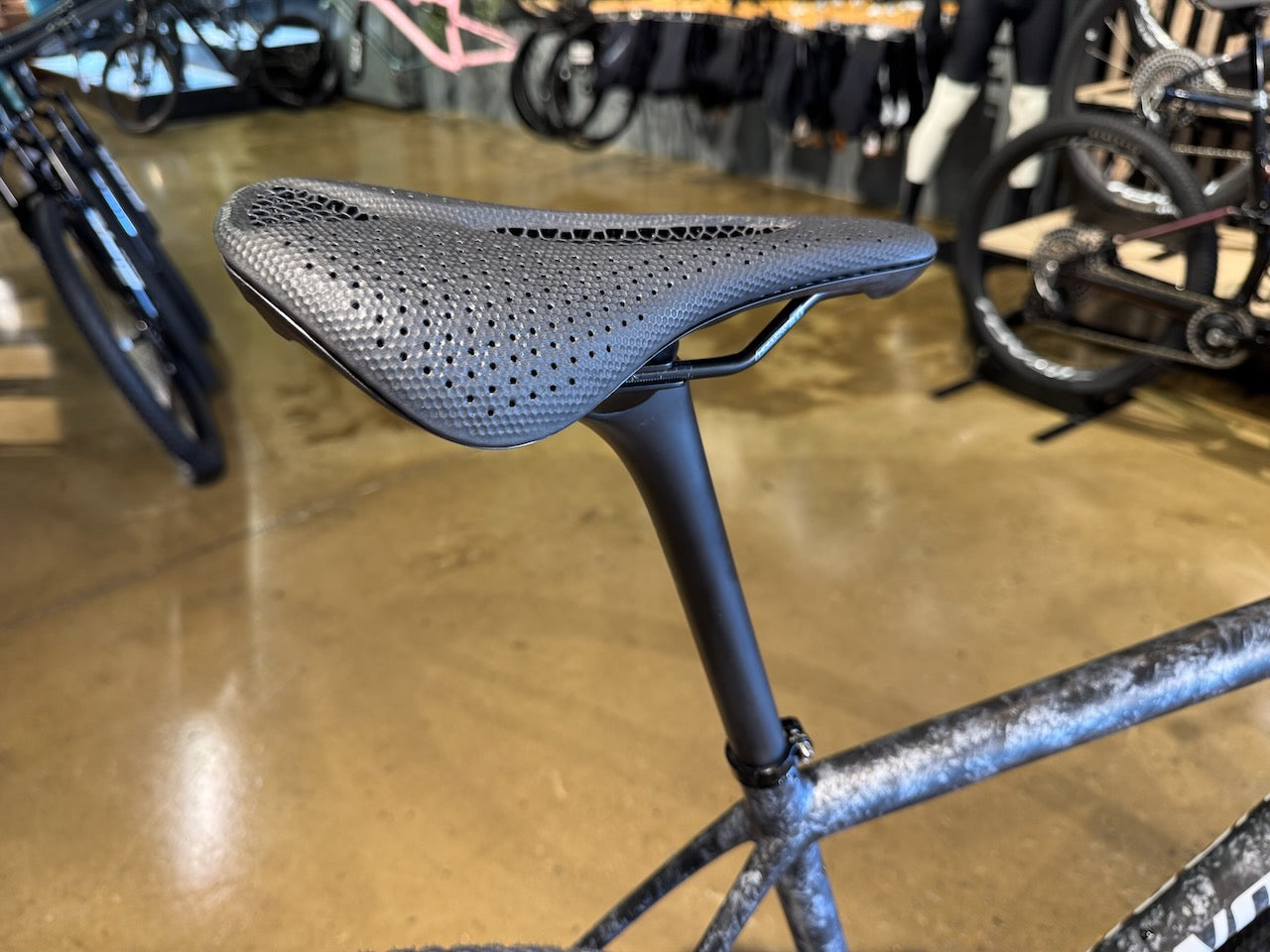

Saddle

Power Pro Mirror, Hollow Ti rails

SeatPost

Roval Alpinist Carbon Seatpost

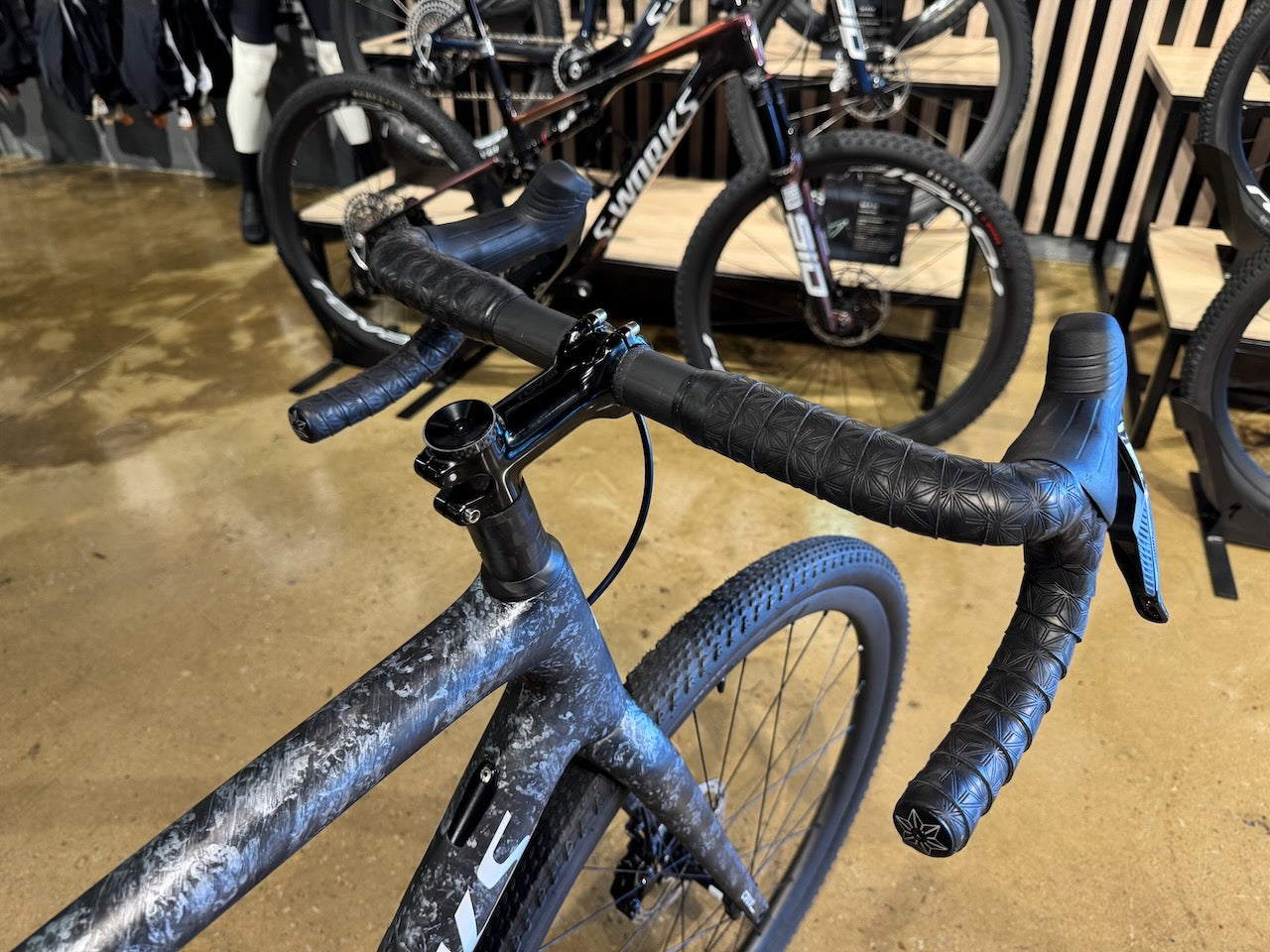

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Seat Binder

Specialized Alloy, 30mm

Stem

Roval Alpinest

Tape

Super Sticky Kush Gravel Tape





Geometry

 495254565861
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length70mm80mm90mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm300mm360mm360mm360mm
Stack530mm547mm560mm578mm598mm621mm
Reach375mm382mm388mm397mm405mm415mm
Head Tube Length100mm115mm130mm147mm167mm190mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
BB Height284mm284mm286mm286mm286mm286mm
BB Drop74mm74mm72mm72mm72mm72mm
Trail74mm69mm67mm64mm62mm60mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Center594mm600mm608mm618mm630mm644mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Seat Tube Length466mm496mm521mm546mm576mm606mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°



Size Chart
