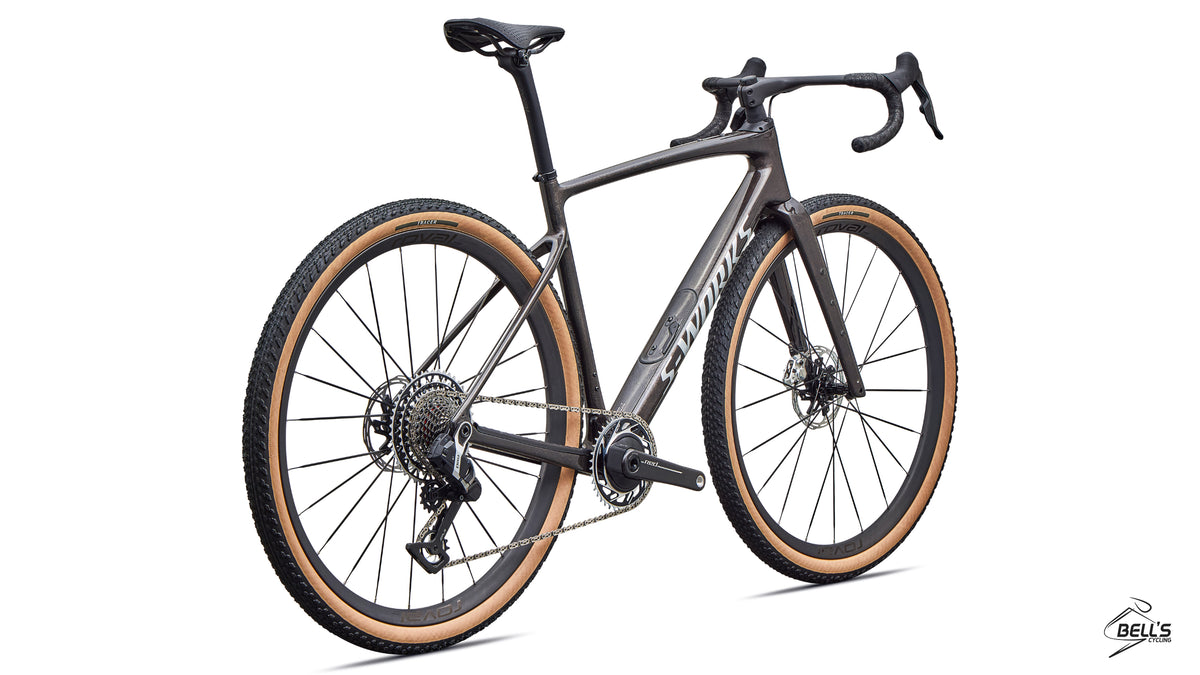

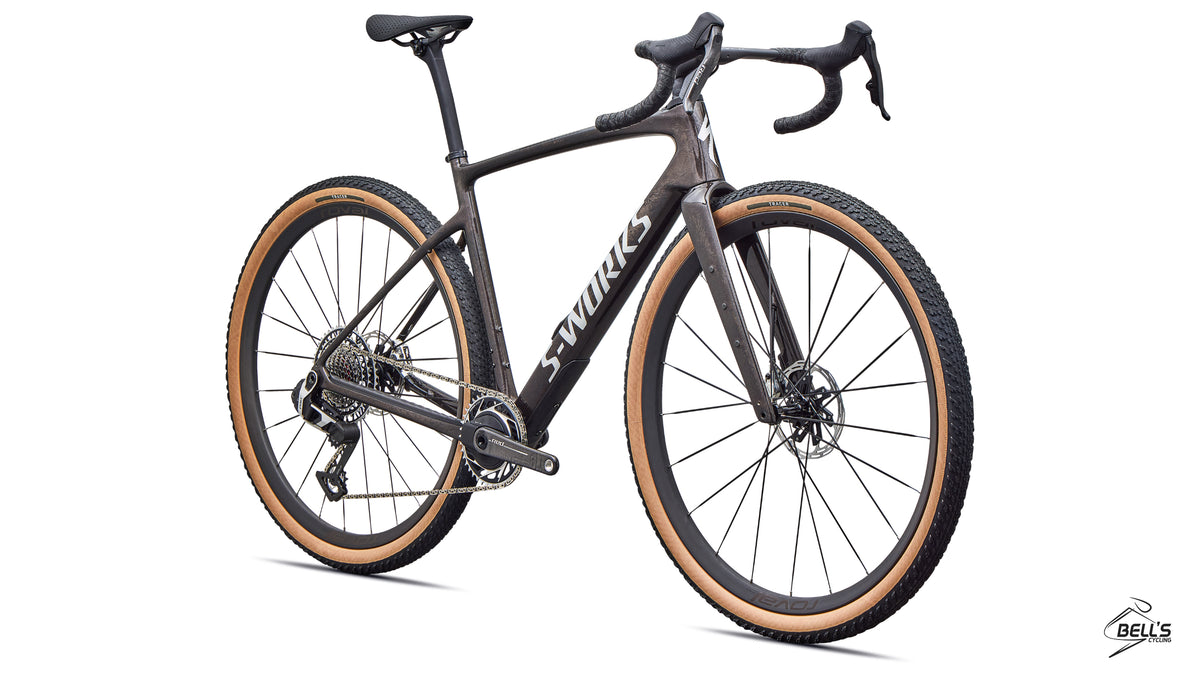

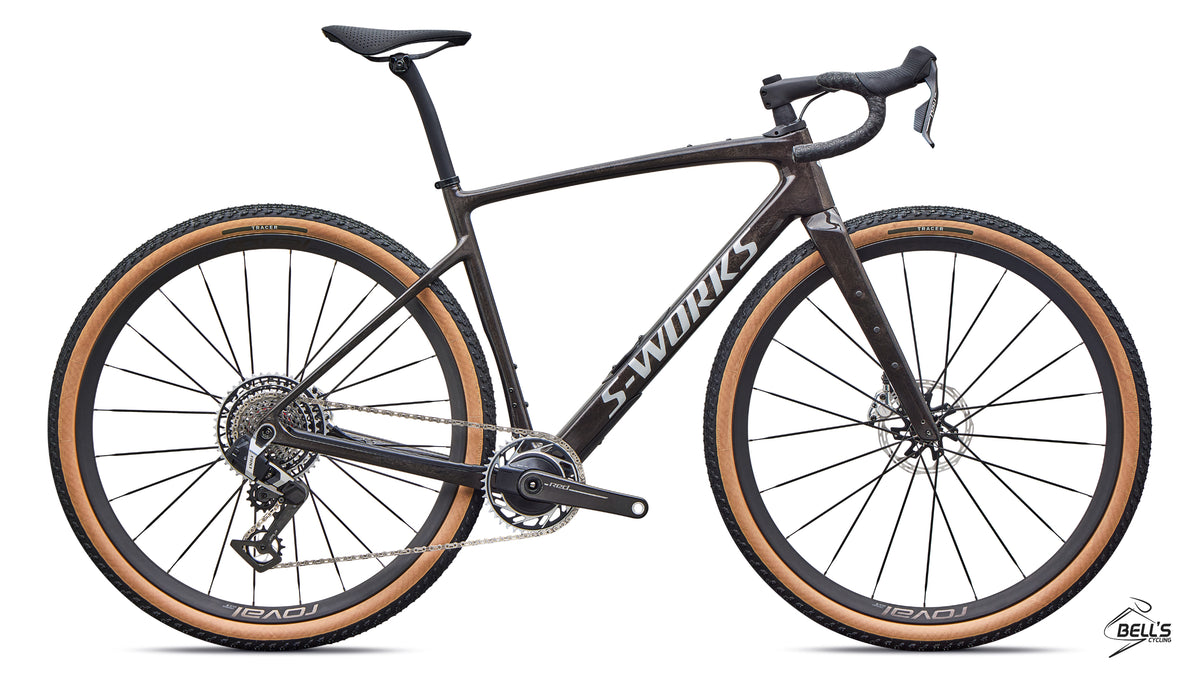

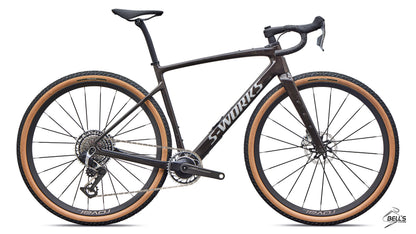

S-Works Diverge 4 SRAM RED XPLR

SKU:95427-0049

R 270,000.00

~~R 270,000.00~~ R 270,000.00

Sale Sold out

Taxes included.

Color Warm Smoke Metallic/carbon Silver Dust

Size 49 52 54 56 58 61

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

Diverge 4

The Ultimate Getaway Vehicle

Adventure approved & tuned for long-distance racing. The Diverge 4 gravel bike is made for full-gas weekend rides and off-grid epics. With internal cable routing, Future Shock 3.0 suspension, massive tire clearance, and the biggest internal storage in gravel, the best gravel adventure bike in the world just got better. Chase adventure on the smoothest, most confident gravel bike ever.

At a Glance

Use

Gravel Adventure

Frameset

FACT 12r Carbon

Suspension

Future Shock 3.3

Drivetrain/Wheels

SRAM RED XPLR/Roval Terra CLX III

Storage

SWAT 4.0

Weight

8.2 kg

View full details

Technical Specifications

Frameset

Frame

Specialized Diverge FACT 12r carbon, SWAT™ Door integration, Future Shock suspension with integrated cable routing, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork

Future Shock 3.3 w/ Smooth Boot, FACT 12r Carbon 12x100mm, thru-axle, flat-mount disc

Brakes

Front Brake

SRAM RED E1, hydraulic disc

Rear Brake

SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket

Ceramic Speed BB Alpha, BSA DUB

Shift Levers

SRAM RED AXS E1, hydraulic disc

Rear Derailleur

SRAM RED AXS XPLR E1, 13-speed

Chain

SRAM RED E1

Crankset

SRAM RED E1 XPLR, DUB Wide, 40t, Quarq Power Meter

Cassette

SRAM RED XPLR E1, 13-speed, 10-46t

Wheels & Tires

Inner Tubes

700x32-50mm, 40mm Presta valve

Front Tire

Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready

Rear Tire

Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready

Front Wheel

Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)

Rear Wheel

Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5 mm depth, 4.9mm bead hook width, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)

Cockpit

Handlebars

Roval Terra Cockpit, Integrated Bar/Stem

SeatPost

Roval Terra Carbon Seat Post, 20mm Offset

Saddle

S-Works Power with Mirror

Seat Binder

Specialized Alloy, 30.8mm

Tape

Supacaz Super Sticky Kush

Accessories

SWAT

SWAT 4.1 internal downtube storage

Product Details

Product ID

298775

Weight

Weight Size

Weight

8.2 kg (18 lb, 1.2 oz)

Geometry

	49	52	54	56	58	61
Crank Length	165	170	172.5	172.5	175	175
Handlebar Width	380	380	400	420	420	420
Stem Length	75	90	90	90	90	90
Saddle Width	155	155	143	143	143	143
Seatpost Length	330	330	380	380	380	380
Stack	563	578	592	610	634	659
Reach	365	374	387	400	412	425
Head Tube Length	90	104	116	135	161	187
Head Tube Angle	70	70.5	71	71	71	71
BB Drop	85	85	85	85	85	85
Trail	72	68	65	65	65	65
Fork Length, Full	391	391	391	391	391	391
Fork Rake/Offset	55	55	55	55	55	55
Front Center	604	613	626	645	665	686
Chainstay Length	430	430	430	430	430	430
Wheelbase	1019	1031	1041	1060	1081	1102
Top Tube Length, Horizontal	521	537	556	575	593	613
Bike Standover Height	700	725	754	779	805	832
Seat Tube Length	400	430	470	500	530	560
Seat Tube Angle	74.5	74	74	74	74	74

Sizing Guide
