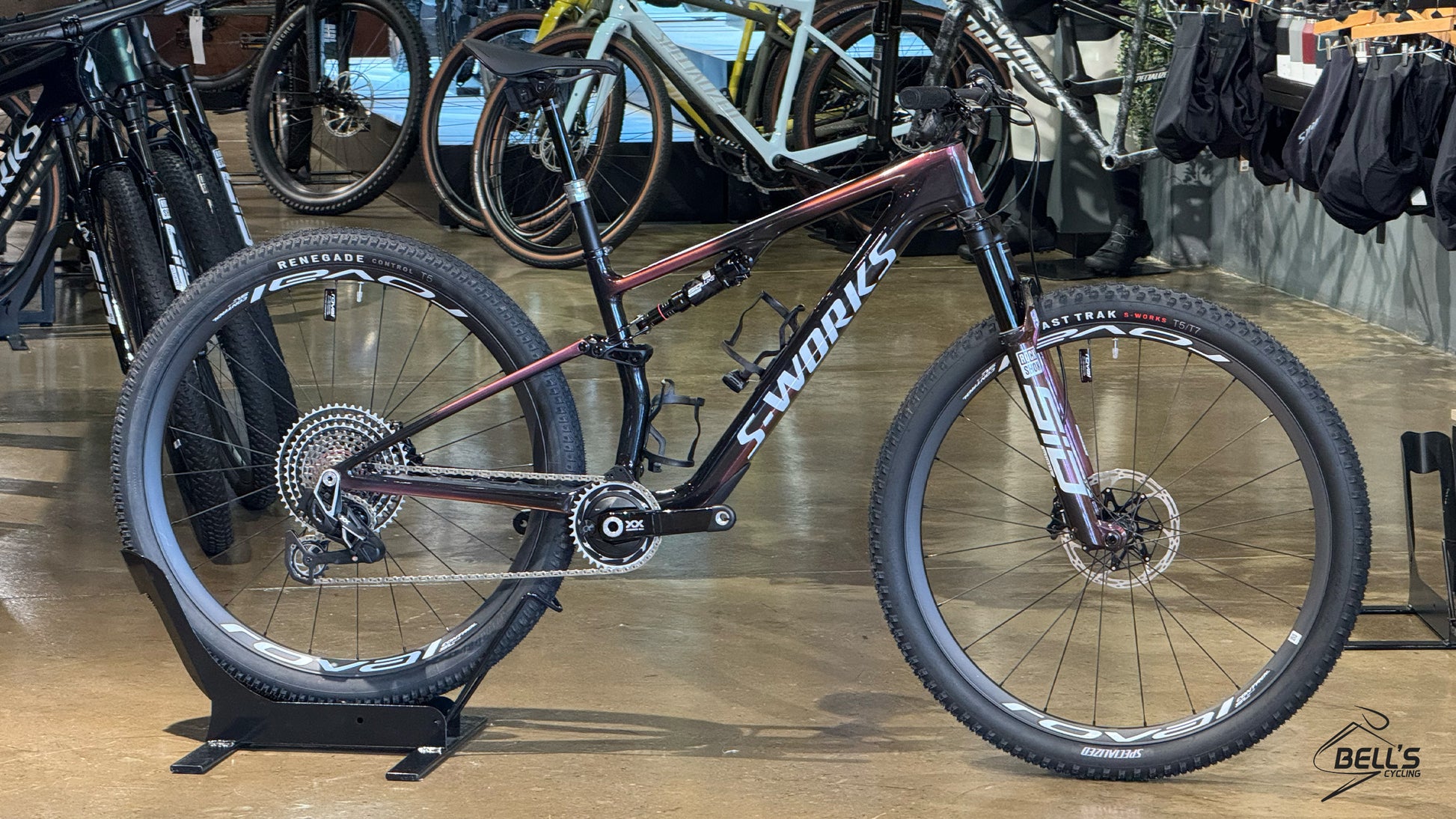

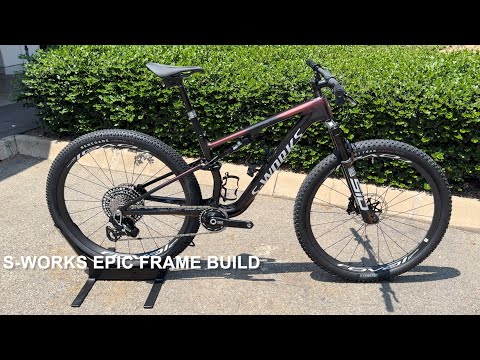

S-Works Epic 8 Build M
S-Works Epic 8 Build M
SKU:70324-0003W
Low stock: 1 left
S-Works Epic 8
The all-new Epic 8 evolves the formula of fastest through capability, efficiency, and lightweight integration. Modern XC tracks demand more and more capability by the day. Enter Epic 8. Its improved kinematics make it the most efficient pedaling bike we’ve ever tested, while custom valved (and tuned) shocks soak up every bump. It’s a wolf in wolf’s clothing.
If you’re an XC racer or prioritize all-out speed in your ride, the Epic 8 is the bike for you.
UNMATCHED CAPABILITY: The most capable 120mm bike on the planet. You’ll be blown away by how Epic 8’s progressive geometry delivers technical terrain capability alongside fast and efficient climbing and acceleration performance. The absurd lateral and torsional rigidity of the chassis translates to some seriously precision handling, too.
WHAT BUMP?: Compared to the previous generation, the new Epic 8 absorbs 12% more bump and vibration forces than the previous generation, leaving you less fatigued and more powerful over time so you can still push while they suffer.
RIDE DYNAMICS TUNED: The Specialized Ride Dynamics team developed custom valving for Epic 8’s new shock. Our unique Ride Dynamics-prescribed damping characteristics holistically elevate the riding experience. By tuning the dampers alongside the chassis’ leverage rates and new kinematics, we’re able to deliver a bike that rides beyond the sum of its parts.
BIOMECHANICAL EFFICIENCY: By optimizing the kinematics of the suspension, Specialized’s Ride Dynamics team reduced inefficient pedal-induced bobbing by 20%, while maintaining active suspension for effective bump force management, to ensure you remain in the most efficient pedaling position. It’s the most efficient pedaling suspension bike we’ve ever tested.
MORE WITH LESS: With the Epic 8, we didn’t spend a single extra gram to get mega capability from the frame. All models now feature SWAT 4.0 to carry all your trail essentials, and an integrated steering stop to prevent the ubiquitous top tube scar the first time you crash and your bars spin. In fact, the new S-Works Epic 8 frameset has even lost weight (76 grams to be exact) while gaining these new additions.
- The most capable 120mm bike on the planet. 12% more bump absorption and 20% less pedal bob
- Ride Dynamics developed RockShox SIDLuxe ULTIMATE shock and tuned SID ULTIMATE fork
- Custom tuned shock features 3 unique damper settings
Share
Technical Specifications
COCKPIT
Saddle

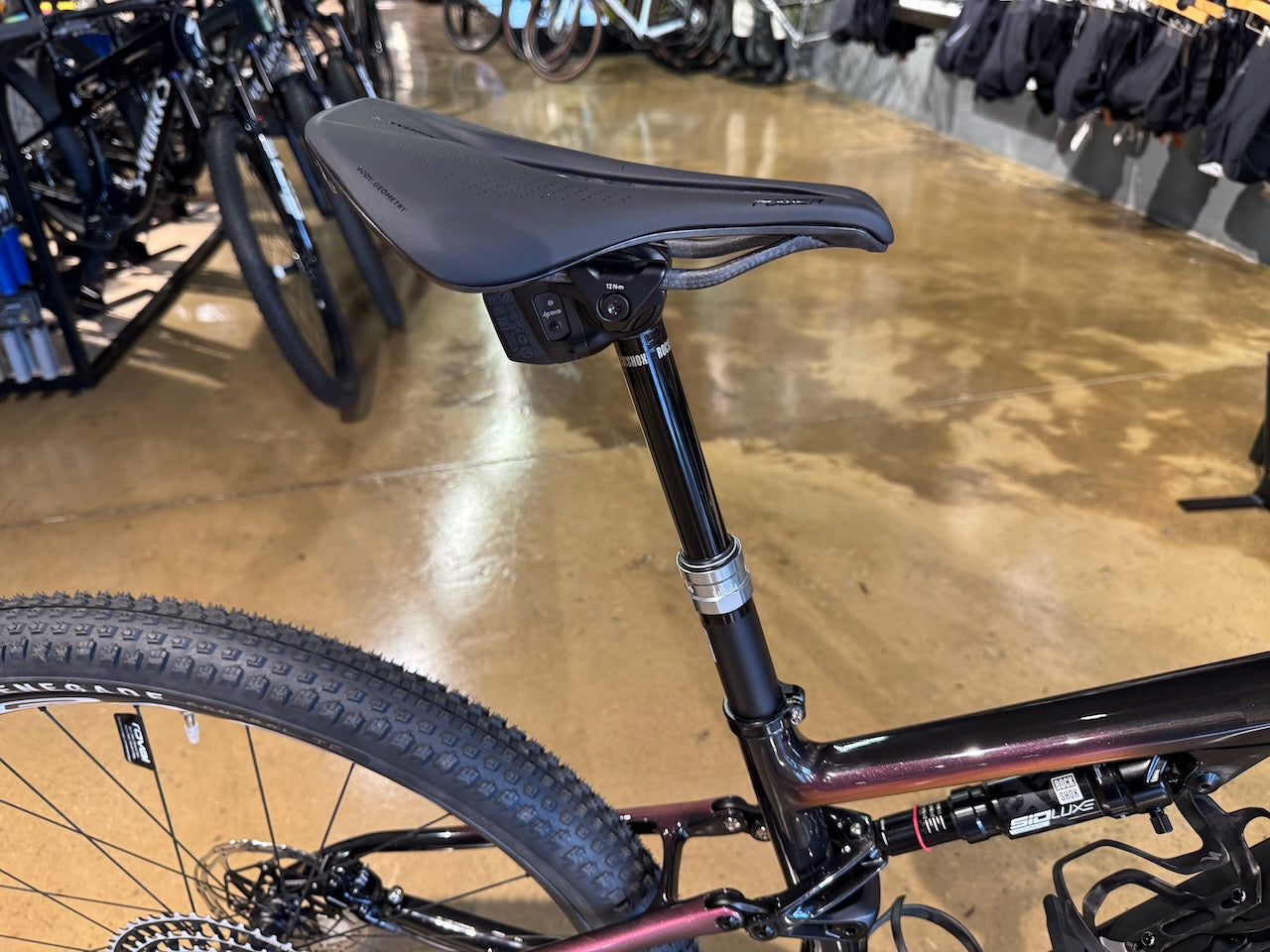

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
SeatPost
RockShox Reverb AXS, 30.9mm, 125mm
Handlebars

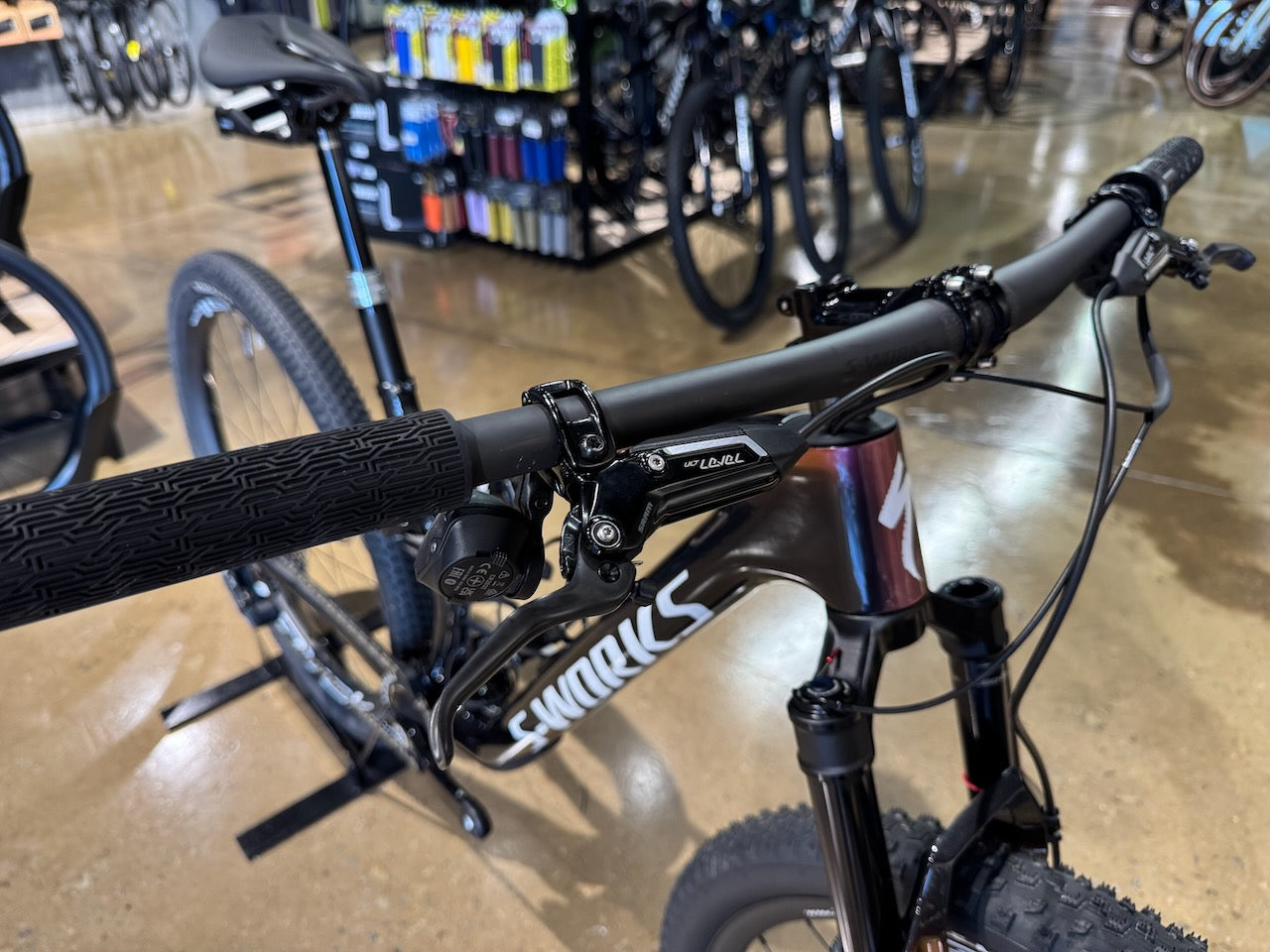

S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Tape
Specialized Trail Grips
WHEELS
Spokes
DT Swiss Aerolite T-head
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Rear Hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull
Front Hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull
Rear Tire
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Front Tire
Specialized S-Works Fast Trak, S-Works Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube
SUSPENSION
Fork

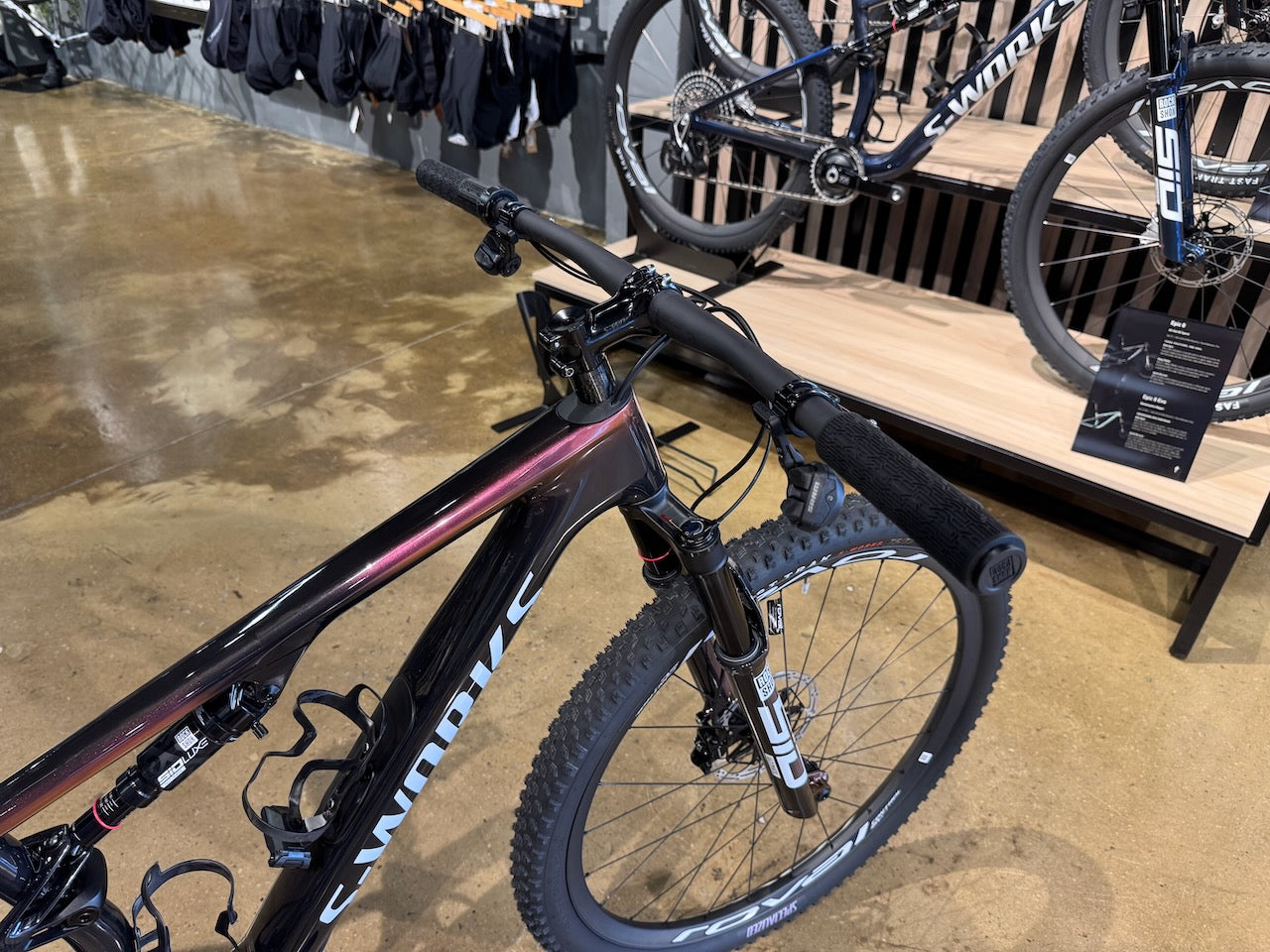

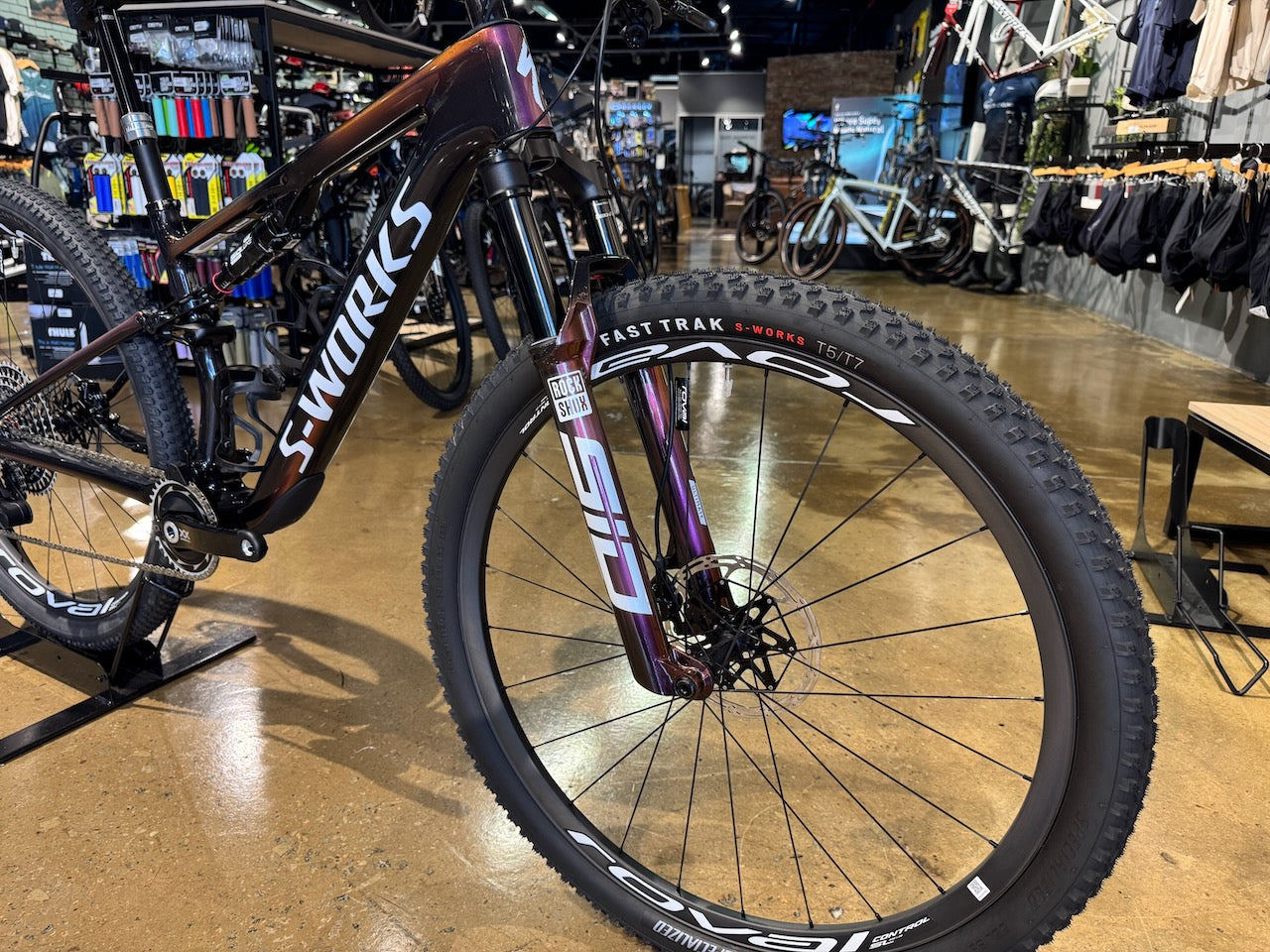

RockShox SID ULTIMATE, Ride Dynamics developed 3 position, TwistLoc remote adjust, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Rear Shock

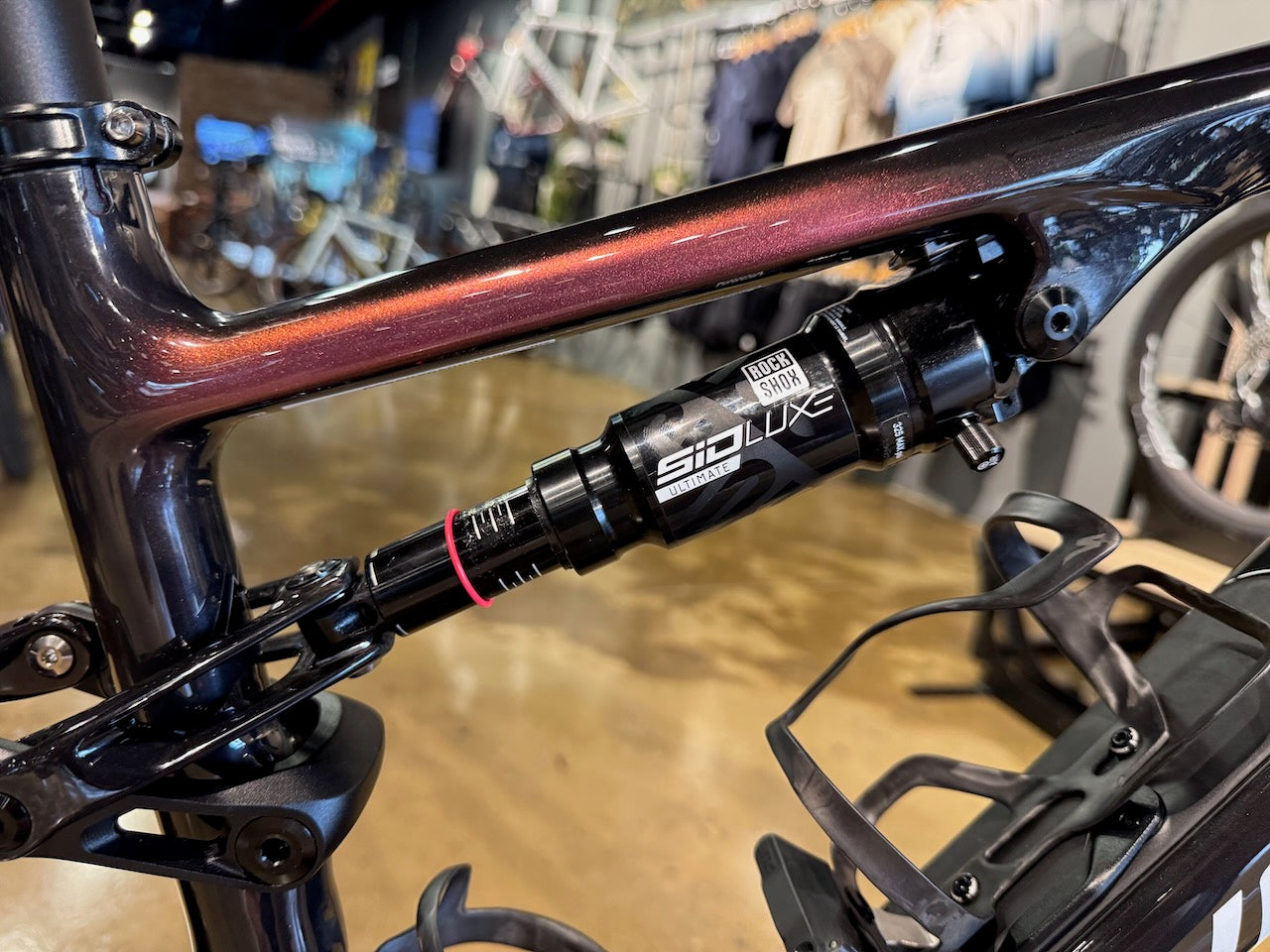

RockShox SIDLuxe ULTIMATE, Ride Dynamics developed 3 position, TwistLoc remote adjust, Solo Air, 190x45mm
FRAMESET
Frame
S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
SWAT
SWAT internal downtube storage
Seat Binder
Specialized Alloy 34.9, Titanium Bolt
DRIVETRAIN
Shift Levers
SRAM AXS POD Controller
Cassette
SRAM XX Eagle SL 10-52t
Bottom Bracket
SRAM DUB Threaded Wide
Crankset

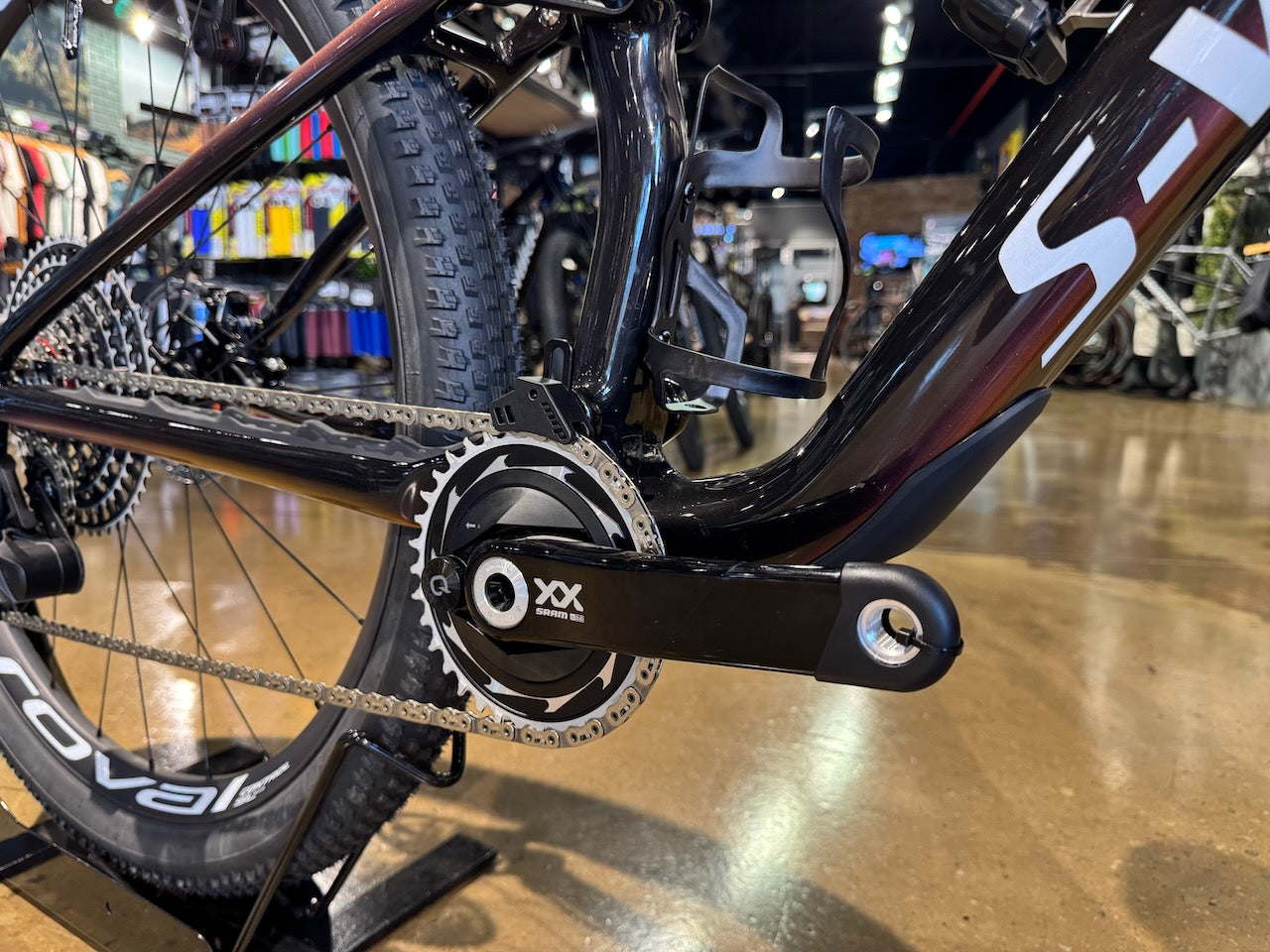

SRAM XX SL Eagle Power Meter Crankset, 170mm/175mm, 34t chainring
Chain
SRAM XX SL Eagle Flat top
Rear Derailleur

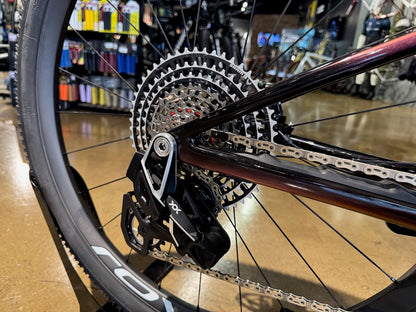

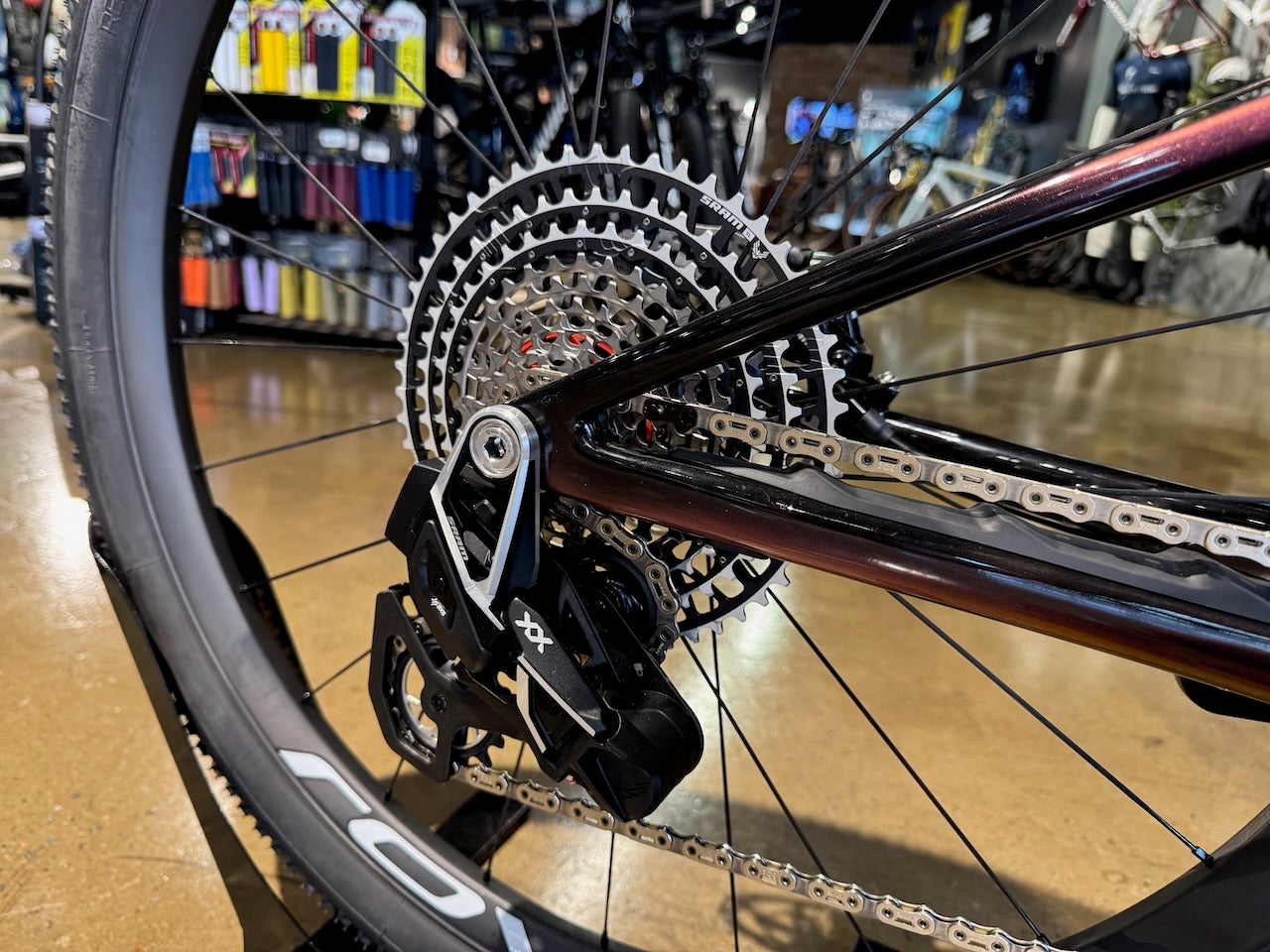

SRAM XX SL Eagle AXS
Chainrings
34t
BRAKES
Front Brake
SRAM Level Ultimate Stealth, 2-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM Level Ultimate Stealth, 2-piston caliper, hydraulic disc, 160mm rotor
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170 | 170 | 175 | 175 |
Handlebar Width | 760 | 760 | 760 | 760 |
Stem Length | 60 | 60 | 60 | 60 |
Saddle Width | 155 | 143 | 143 | 143 |
Seatpost Length | 100 | 125 | 125 | 125 |
Stack | 597 | 598 | 610 | 628 |
Reach (low) | 420 | 450 | 475 | 500 |
Head Tube Length | 110 | 130 | 92 | 95 |
Head Tube Angle (low) | 65.9 | 65.9 | 65.9 | 65.9 |
Head Tube Angle (high) | 66.4 | 66.4 | 66.4 | 66.4 |
BB Height (low) | 324 | 326 | 328 | 328 |
BB Height (high) | 329 | 331 | 333 | 333 |
BB Drop (low) | 46 | 44 | 42 | 42 |
Trail | 117 | 117 | 117 | 117 |
Fork Length, Full | 530 | 530 | 530 | 530 |
Fork Rake/Offset | 44 | 44 | 44 | 44 |
Front Center | 716 | 747 | 778 | 811 |
Chainstay Length | 435 | 435 | 435 | 435 |
Wheelbase | 1147 | 1179 | 1210 | 1243 |
Bike Standover Height | 755 | 760 | 769 | 774 |
Seat Tube Length | 390 | 410 | 450 | 500 |
Seat Tube Angle | 76 | 75.5 | 75.5 | 75.5 |
Top Tube Length, Horizontal | 569 | 605 | 633 | 662 |
