SPECIALIZED

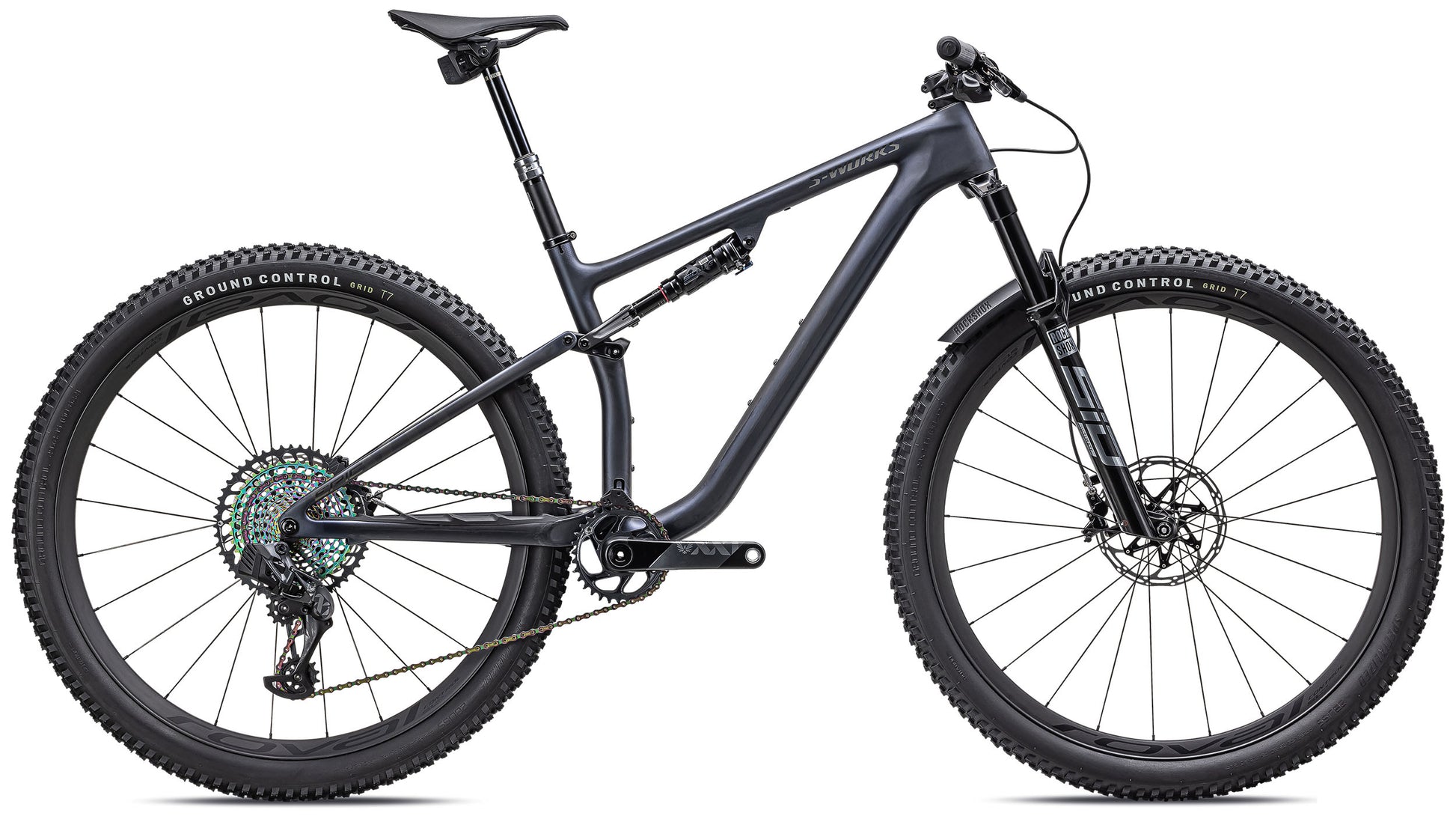

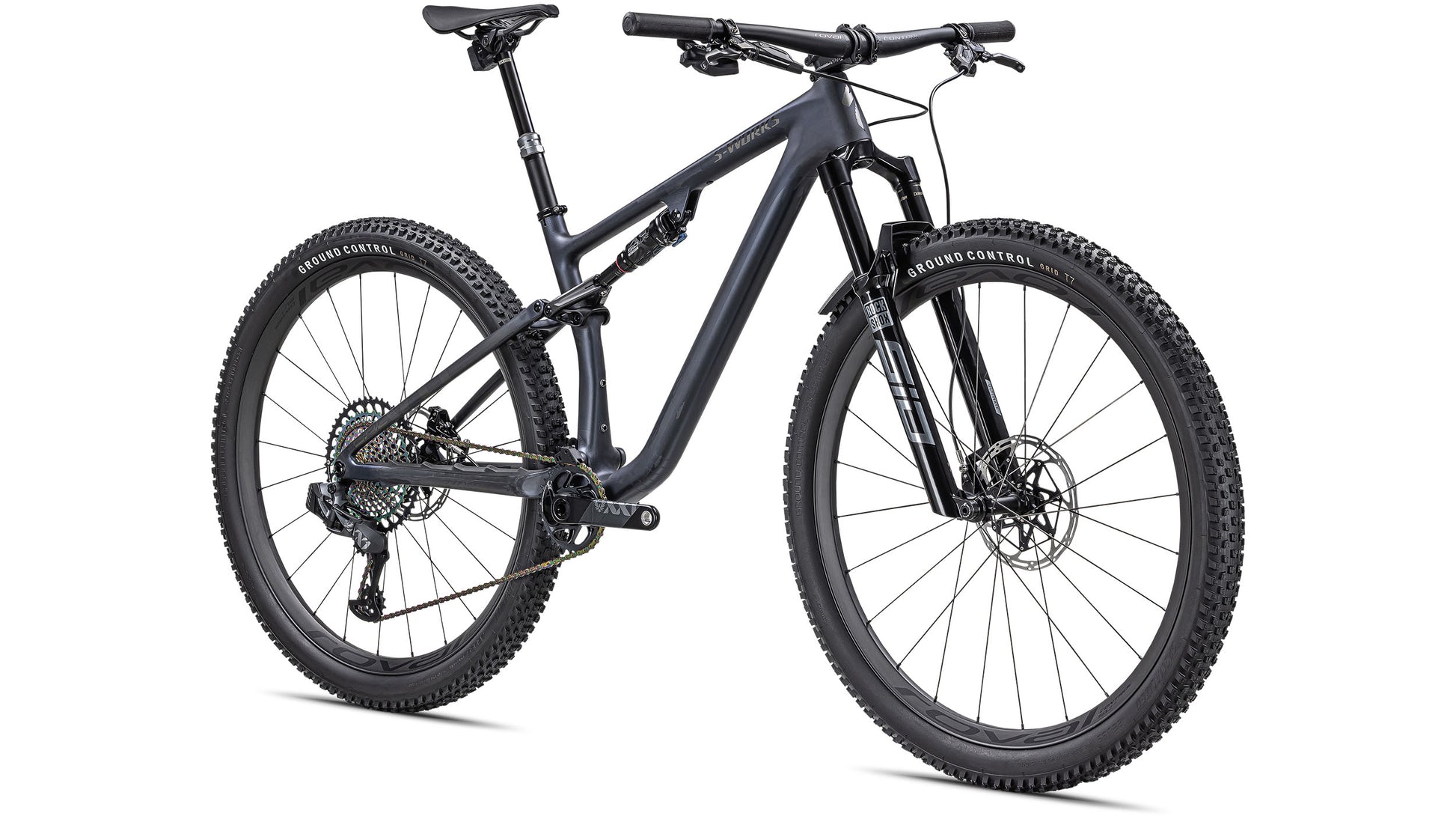

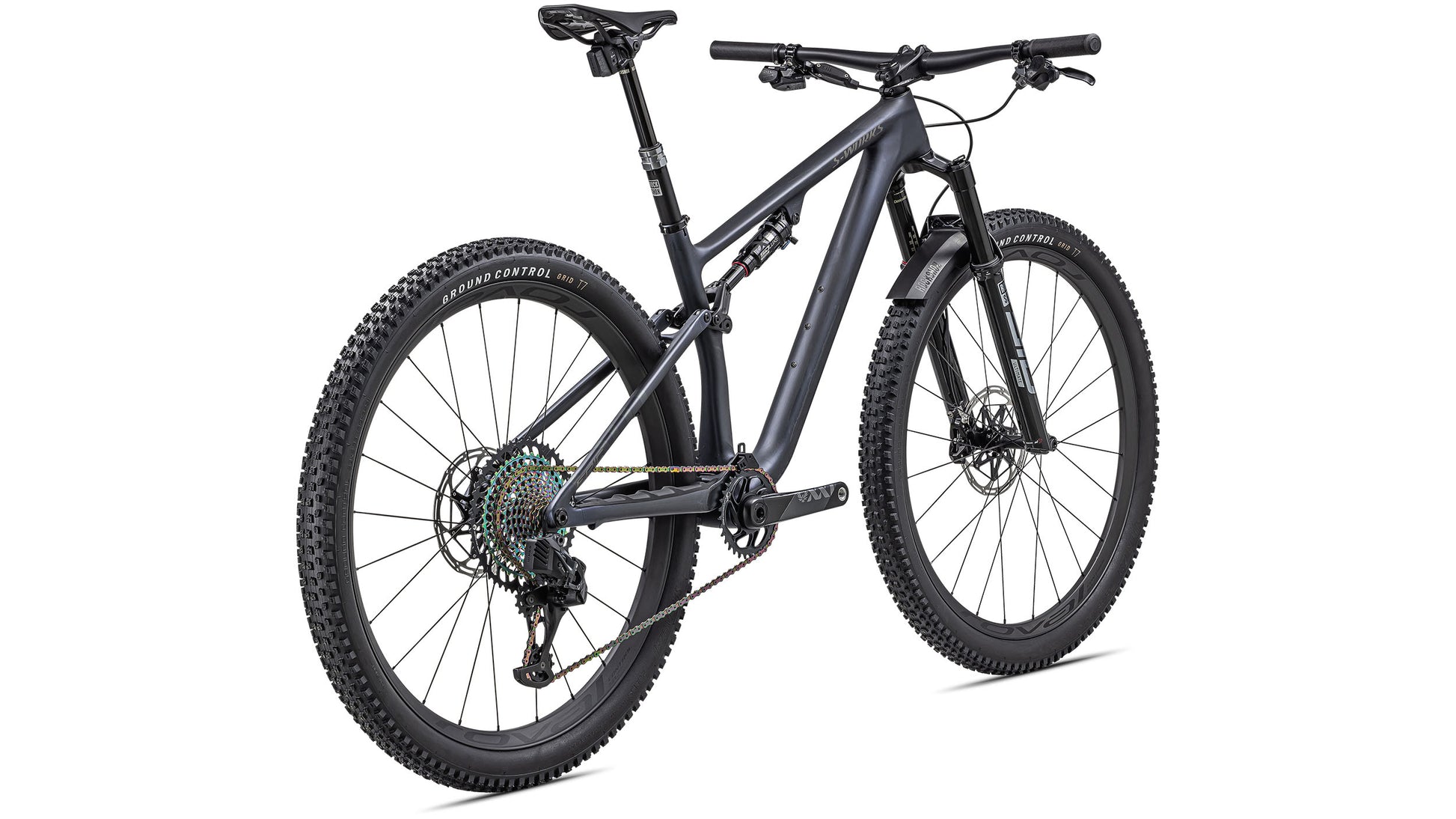

S-Works Epic EVO

S-Works Epic EVO

SKU:94823-0002

Regular price R 190,000.00
Regular price R 240,000.00 Sale price R 190,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

S-Works Epic EVO

You know what they say—when the grams go away, speed comes out to play. Benefitting from the lightest EVO frame we’ve ever created and the most aggressive iteration of our Progressive XC Geometry to date, the S-Works Epic EVO made a few calls and assembled a dream team supporting cast to offer a ‘capability-to-weight’ ratio that skips impressive and jumps straight to flat-out mindblowing.

While the Epic EVO sees a seemingly modest 20-millimeter increase in suspension travel up front over its Epic stablemate and just 10-millimeters out back, we’ve worked overtime to make sure it’s been implemented in a way that’ll have you saying ‘Whoa!’ as soon as you hit your first stretch of singletrack.

Meticulously engineered to retain as much of the Epic’s standard-setting efficiency as possible, the EVO’s new suspension kinematics work in concert with Rx XC Tune customized suspension front and rear to ensure you're able to make the absolute most out of every inch of travel on tap, while still offering increased anti-squat characteristics for improved pedaling efficiency.

With plenty of practice at staying ahead of the curve, the Epic EVO now lays claim to the most capable iteration of our Progressive XC Geometry ever to grace an Epic. It’s also more versatile than ever thanks to a new flip chip-equipped rear end that allows riders to adjust headtube angle and bottom bracket height to easily customize Epic EVO’s handling characteristics.

For the S-Works Epic EVO we also made sure that every last component to have the honor of gracing its FACT 12m carbon frame was just as dedicated to finding the ultimate balance of lightness, efficiency and hard-charging capability. For proof, just take a look at the seemingly logic-defying, stiffer-lighter-stronger masterpiece that is the new Roval Control SL wheelset, and SRAM’s XC-light yet trail-tough electronic XX1 Eagle AXS group and wireless electronically-actuated Reverb AXS dropper post.

  • Flip It To Rip It: Tune the ride of the S-Works Epic EVO’s FACT 12m carbon frame to match your preferred handling characteristics with flip-chip simplicity that allows riders to reduce the EVO’s headtube angle by half a degree while lowering bottom bracket height by 10 millimeters.
  • Pairing the stiff yet lightweight SID Ultimate chassis with RockShox's lightest-ever Charger Race Day damper makes for quite the package, impressively cutting weight while still managing to pack in truly impressive levels of performance, precision, and control.
  • The pinnacle of drivetrain performance, SRAM's XX1 Eagle AXS combines next-gen wireless technology, incredibly accurate shift performance and game-changing versatility to drastically redefine the riding experience.
  • Created specifically to match both the weight savings and increased capability of the S-Works Epic and S-Works Epic EVO, the Roval Control SL rim introduces a completely new offset rim profile that features a 29-millimeter-wide internal width and not only increases strength and reduces weight, but also improves pinch-flat resistance by 22-percent.
View full details

Technical Specifications

DRIVETRAIN

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Shift Levers

SRAM Eagle AXS Rocker Paddle

Chain

SRAM XX1 Eagle

Rear Derailleur

SRAM XX1 Eagle AXS

Crankset

SRAM XX1 Eagle DUB, 32T

Cassette

Sram XG-1299, 12-Speed, 10-52t



COCKPIT

Saddle

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

SeatPost

RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm

Handlebars

Roval Control Rise Carbon Handlebar, 760mm wide, 20mm rise, 35mm

Tape

Specialized Trail Grips

Stem

TruVativ Descendant 35, 35mm clamp, 60mm

WHEELS

Spokes

DT Swiss Aerolite

Rims

Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h

Rear Hub

Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull

Front Hub

Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, 24h straight pull

Front Tire

Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Rear Tire

Specialized Ground Control, GRID Casing, T7 Compound, 29x2.35

Inner Tubes

Specialized Turbo Tube



SUSPENSION

Rear Shock

RockShox SID LUXE ULTIMATE, Rx XC Tune, Two Position, Rebound Adjust, 190x40mm

Fork

Rockshox SID ULTIMATE, Charger Race Day Damper, Debon Air, 15x110mm, 44mm offset, 120mm Travel



FRAMESET

Frame

S-Works FACT 12m Carbon, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 110mm of travel

Seat Binder

Specialized Alloy 34.9, Titanium Bolt



BRAKES

Front Brake

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor

Rear Brake

SRAM G2 Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor



ACCESSORIES

SWAT

SWAT CC steerer tube integrated tool with chain tool and link, detachable SWAT box



* Specifications are subject to change without notice

Geometry

 SMLXL
Crank Length170mm175mm175mm175mm
Seatpost Length125mm125mm150mm170mm
Handlebar Width760mm760mm760mm760mm
Stem Length60mm60mm60mm60mm
Saddle Width155mm143mm143mm143mm
Stack593mm597mm611mm629mm
Reach406mm436mm460mm485mm
Head Tube Length95mm100mm115mm135mm
Head Tube Angle66.5°66.5°66.5°66.5°
BB Height336mm336mm336mm336mm
BB Drop36mm36mm36mm36mm
Trail114mm114mm114mm114mm
Fork Length, Full530mm530mm530mm530mm
Fork Rake/Offset44mm44mm44mm44mm
Front Center697mm729mm759mm792mm
Chainstay Length438mm438mm438mm438mm
Wheelbase1132mm1164mm1194mm1227mm
Bike Standover Height779mm781mm793mm804mm
Seat Tube Length400mm430mm470mm520mm
Seat Tube Angle74.8°74.5°74.5°74.5°
Top Tube Length, Horizontal567mm602mm629mm659mm
