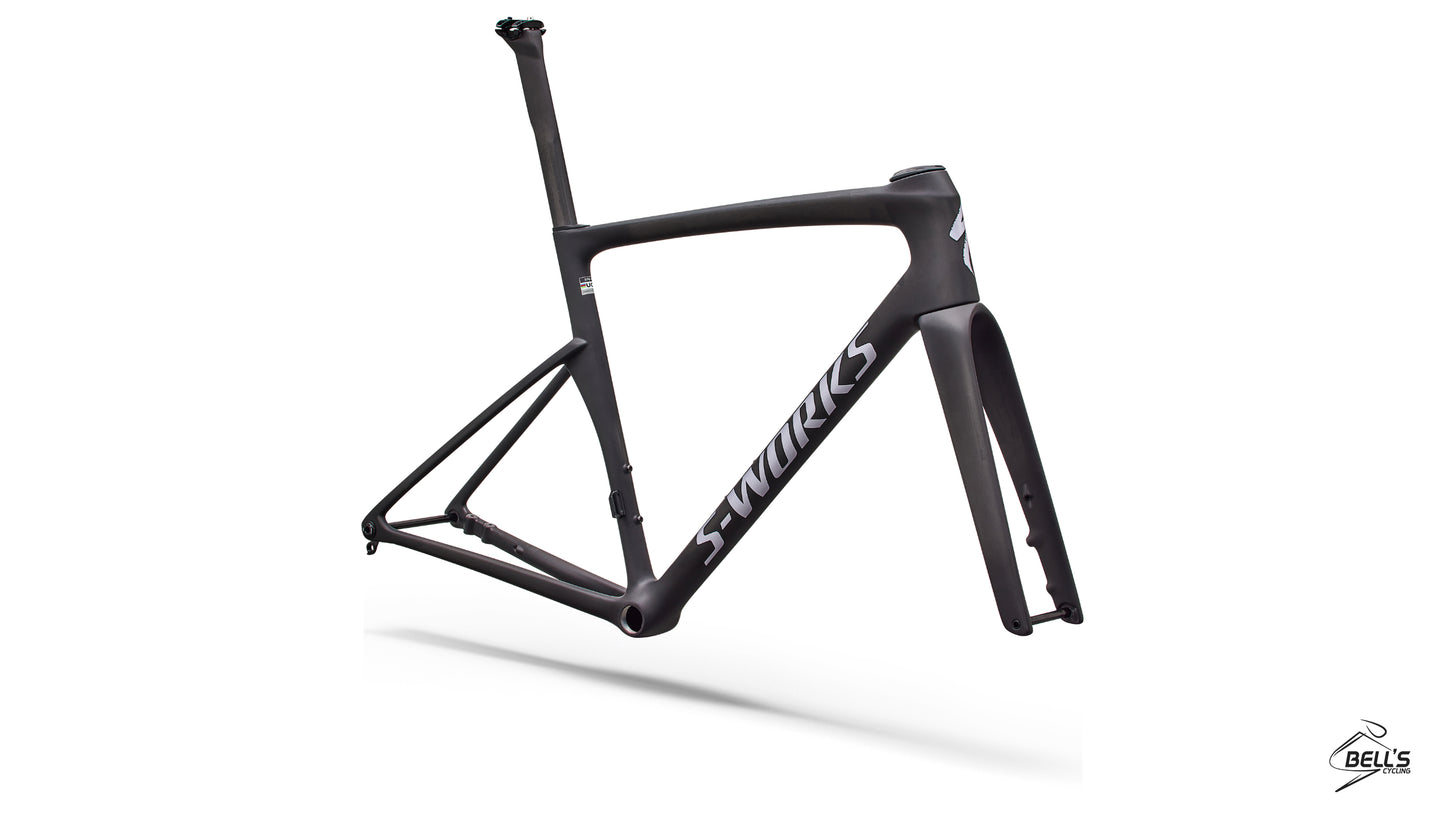

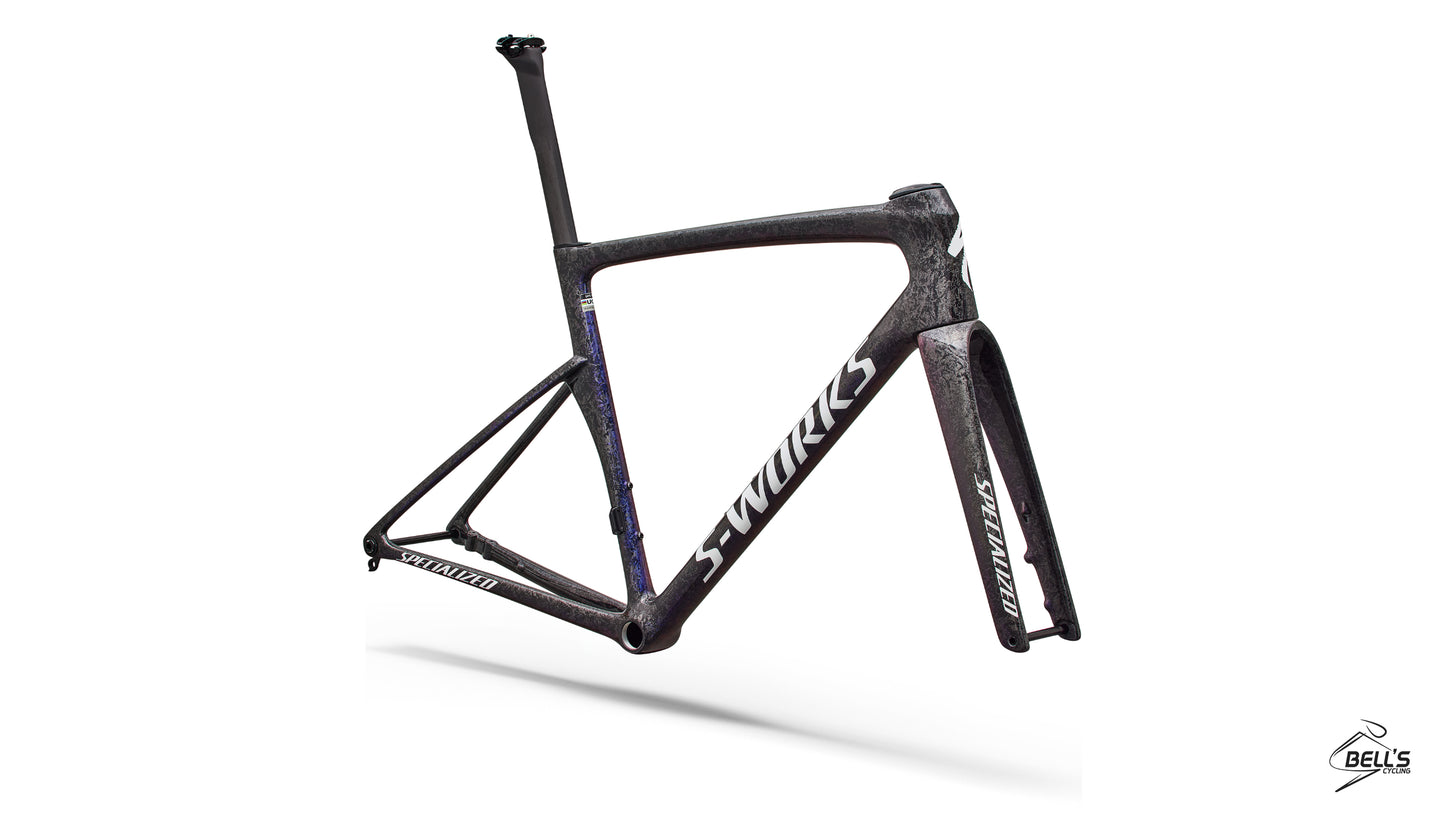

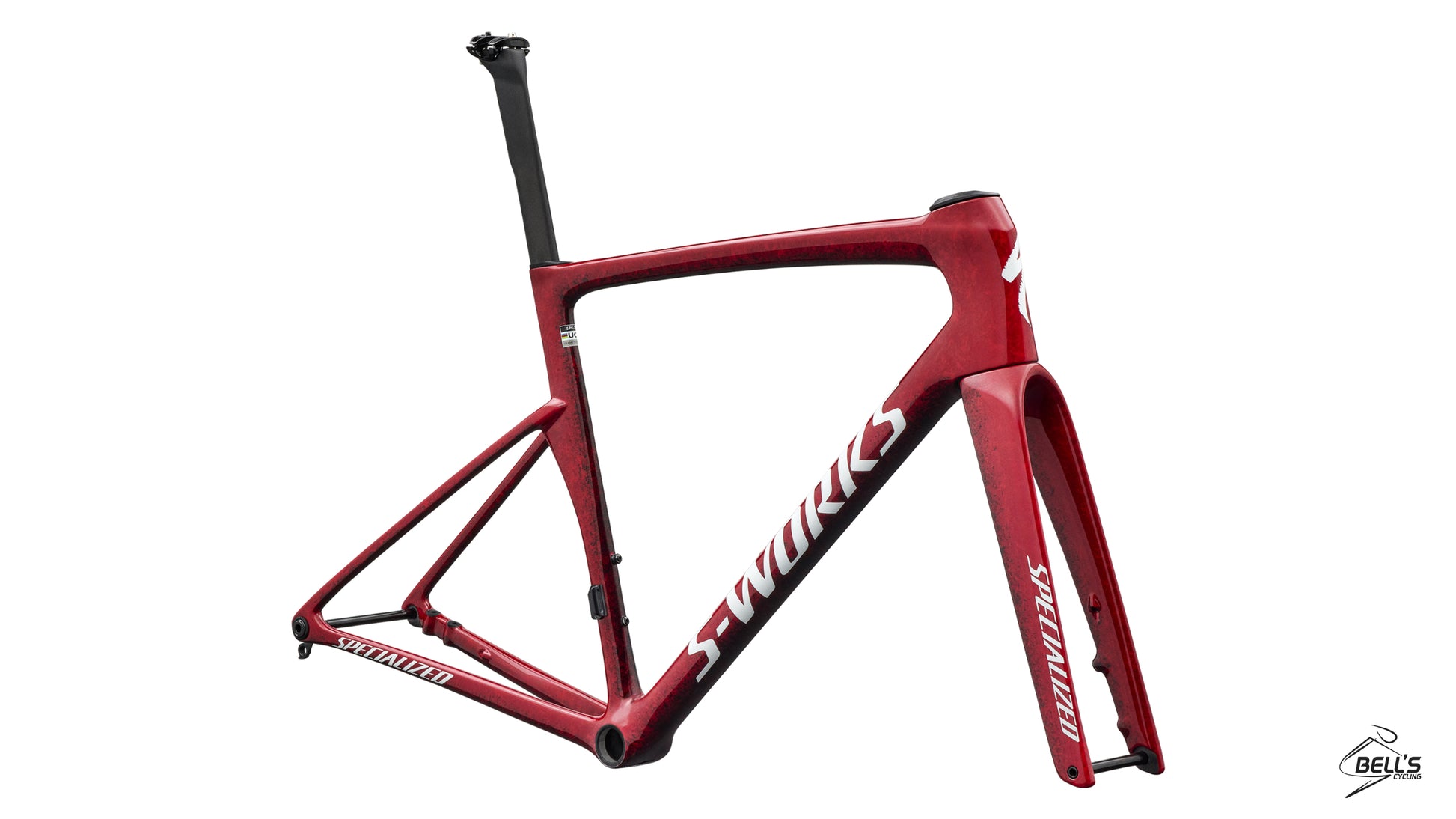

S-Works Tarmac SL9 Frameset
One Bike To Rule Them All
The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
At a Glance
Use
Road Racing
Frame
FACT 12r Carbon - 687 grams
Fork
FACT 12r Carbon
Headset
Ceramic Speed SLT
Seatpost
S-Works Rapide Post
Weight
1.39 kg
Share
Technical Specifications
Frameset
Frame
S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
Seatpost
S-Works Rapide Post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
Product Details
Product ID
295586
Weight
1.56 kg (3 lb, 7.0 oz)
Weight Size
56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| Seatpost Length | 300 | 300 | 300 | 380 | 380 | 380 | 380 | |
| Frame Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 | |
| Frame Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 | |
| Stack to Stem | 509 | 522 | 535 | 552 | 573 | 599 | 620 | |
| Reach to Stem | 363 | 372 | 377 | 381 | 393 | 400 | 406 | |
| Head Tube Length | 99 | 109 | 120 | 140 | 157 | 184 | 204 | |
| Head Tube Angle | 70.5 | 71.75 | 72.5 | 72.5 | 73.5 | 73.5 | 74 | |
| BB Height | 266 | 266 | 266 | 268 | 268 | 268 | 268 | |
| BB Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 | |
| Trail | 71 | 63 | 58 | 58 | 55 | 55 | 52 | |
| Fork Length, Full | 370 | 370 | 370 | 370 | 370 | 370 | 370 | |
| Fork Rake/Offset | 47 | 47 | 47 | 47 | 44 | 44 | 44 | |
| Front Center | 567 | 570 | 572 | 582 | 587 | 602 | 609 | |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 | |
| Wheelbase | 970 | 973 | 975 | 986 | 991 | 1006 | 1013 | |
| Top Tube Length, Horizontal | 496 | 509 | 531 | 540 | 563 | 577 | 595 | |
| Bike Standover Height | 722 | 734 | 745 | 767 | 785 | 807 | 833 | |
| Seat Tube Length | 433 | 445 | 456 | 473 | 494 | 515 | 545 | |
| Seat Tube Angle | 75.5 | 75.5 | 74 | 74 | 73.5 | 73.5 | 73 |
