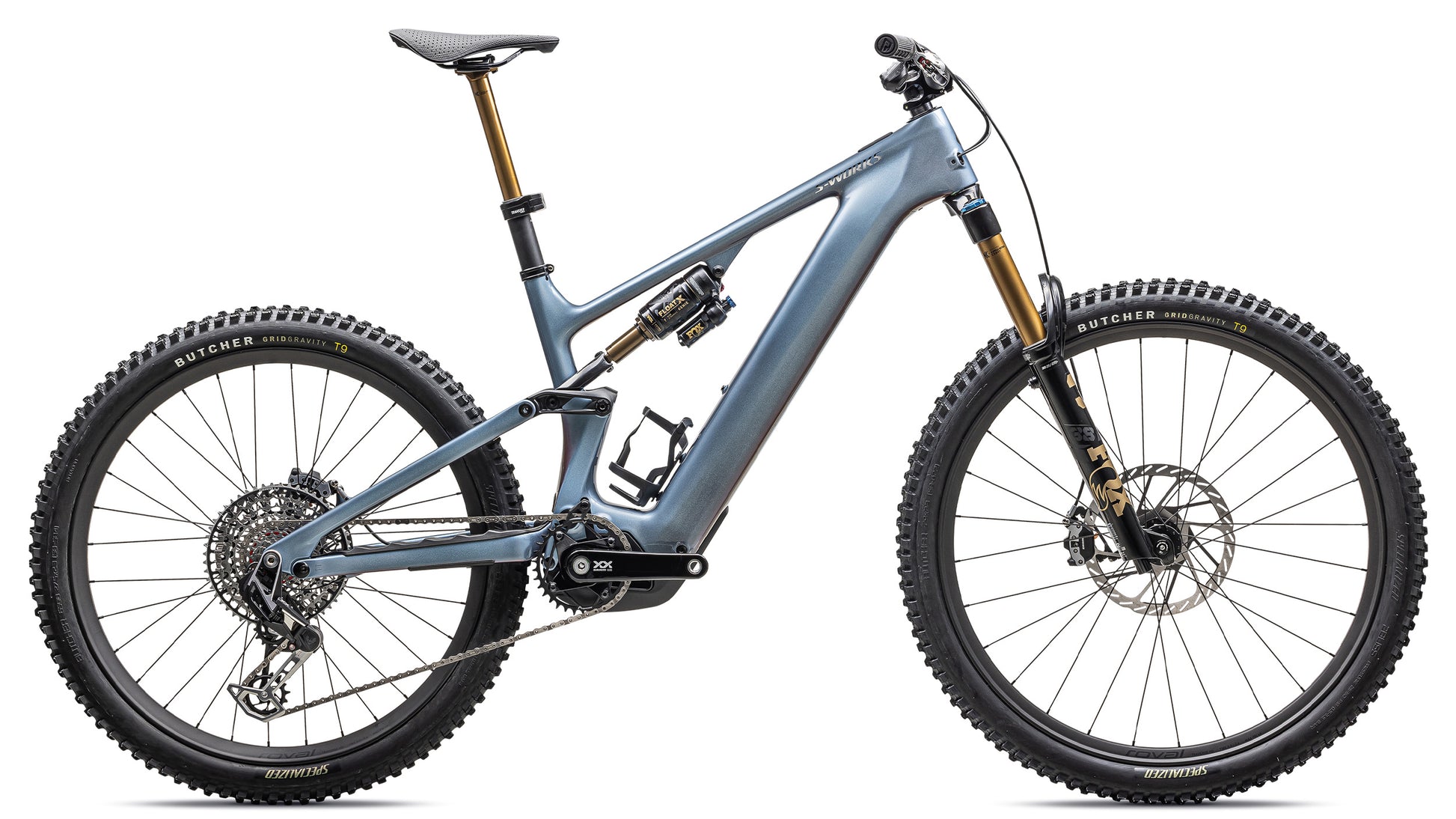

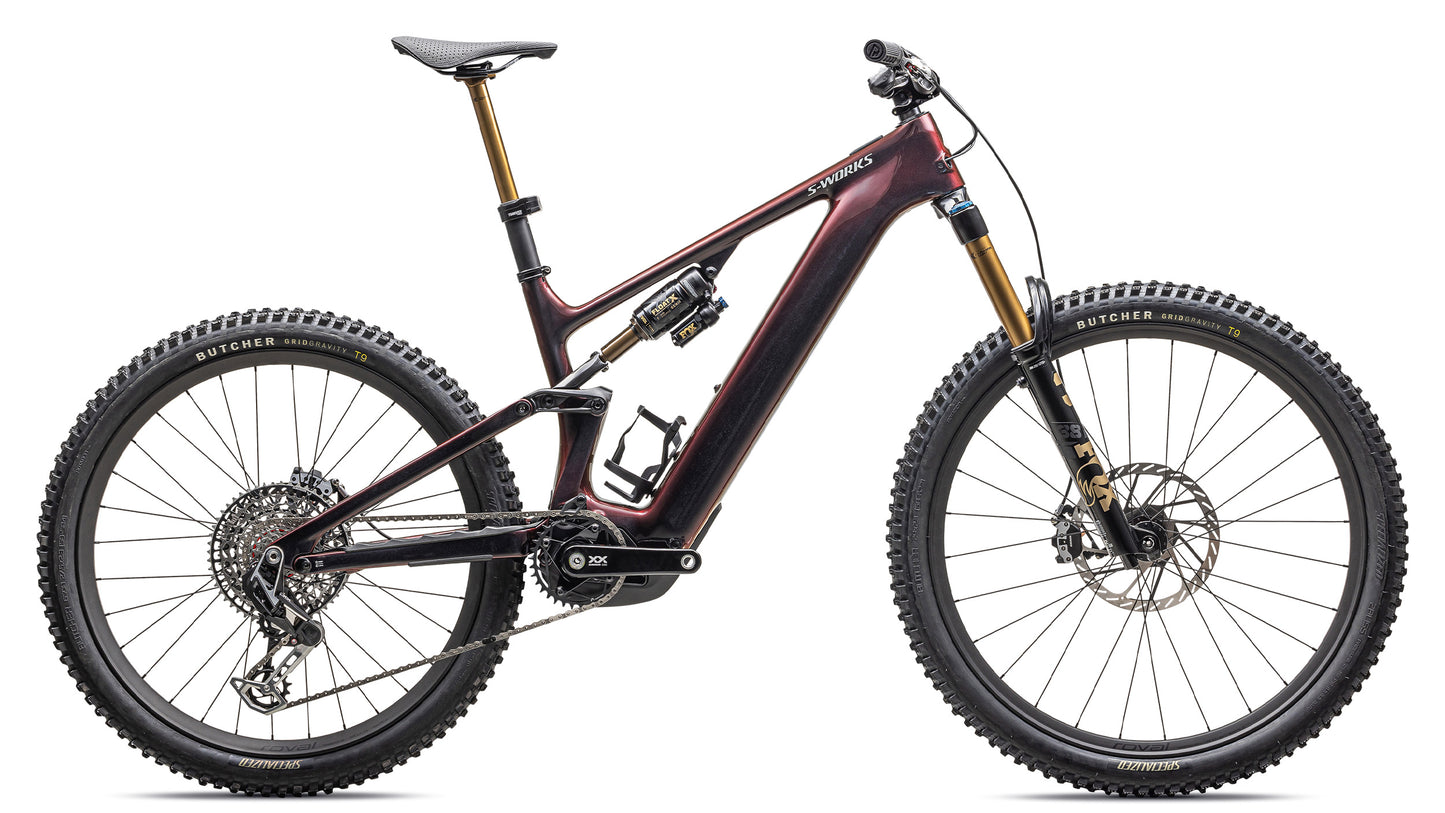

S-Works Turbo Levo 4

S-Works Turbo Levo 4

SKU:95224-0002

Regular price R 295,000.00
Regular price R 295,000.00 Sale price R 295,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

S-Works Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance
Use
Full Power E-MTB Trail
E-System
S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range
Frame
FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
Suspension
Front: 160mm FOX 38 FACTORY GRIPX2<br>Rear: 150mm GENIE - FOX FLOAT X Factory
Drivetrain
SRAM XX Eagle T-Type AXS
Wheels
Roval Traverse HD Carbon / DT 240 DEG
View full details

Technical Specifications

E-Bike

UI/Remote

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Motor

All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

Battery

840wh battery

Frameset

Seat Binder

Alloy, 38.6mm

Frame

All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Suspension

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

Rear Shock

FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Brakes

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Chainrings

SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers

SRAM AXS POD ULTIMATE with DISCRETE CLAMP

Cassette

SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Crankset

SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Chain

SRAM XX EagleTransmission Flattop Chain

Wheels & Tires

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

Inner Tubes

Standard, Presta Valve

Cockpit

Grips

Deity Lockjaw grips

SeatPost

FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

Handlebars

RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Stem

Industry 9 Mountain stem, 35mm clamp, 40mm length

Saddle

Specialized Power Pro Mirror w/hollow Ti rails

Accessories

SWAT

SWAT internal downtube storage

Product Details

Product ID

218698

Compliance Certification

As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight

Weight

23.68kg (52 lb, 3.3 oz)

Weight Size

S4

Geometry

 S2S3S4S5S6
Crank Length155mm155mm155mm155mm155mm
Handlebar Width800mm800mm800mm800mm800mm
Stem Length40mm40mm40mm40mm40mm
Saddle Width155mm143mm143mm143mm143mm
Seatpost Length125mm160mm185mm213mm213mm
Stack618mm626mm638mm652mm667mm
Reach435mm455mm480mm505mm535mm
Headtube Length95mm103mm117mm132mm149mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°
BB Height350mm350mm350mm350mm350mm
BB Drop29.5mm29.5mm29.5mm29.5mm29.5mm
Trail132mm132mm132mm132mm132mm
Fork Length (full)577mm577mm577mm577mm577mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center765mm789mm820mm851mm888mm
Chainstay Length435mm435mm435mm435mm435mm
Wheelbase1200mm1223mm1254mm1286mm1323mm
Top-tube Length (horizontal)578mm599mm627mm655mm689mm
Bike Standover Height753mm754mm753mm758mm761mm
Seat Tube Length390mm405mm425mm445mm465mm
Seat Tube Angle77°77°77°77°77°
Saddle Height for Effective ST Angle690mm735mm780mm825mm870mm
Max Seatpost Insertion274mm289mm313mm337mm357mm
Min Seatpost Insertion80mm80mm80mm80mm80mm

Size Guide

Size Chart

Height (Cm)Size
150-160S1
157-173S2
165-180S3
173-188S4
178-193S5
188-203S6
Height (In)Size
59-63S1
62-68S2
65-71S3
68-74S4
70-76S5
74-80S6
