SPECIALIZED

Status 160 Frameset

Status 160 Frameset

73722-7302

R 25,000.00
R 25,000.00 R 25,000.00
Sale Sold out
Taxes included.
Size
Color

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

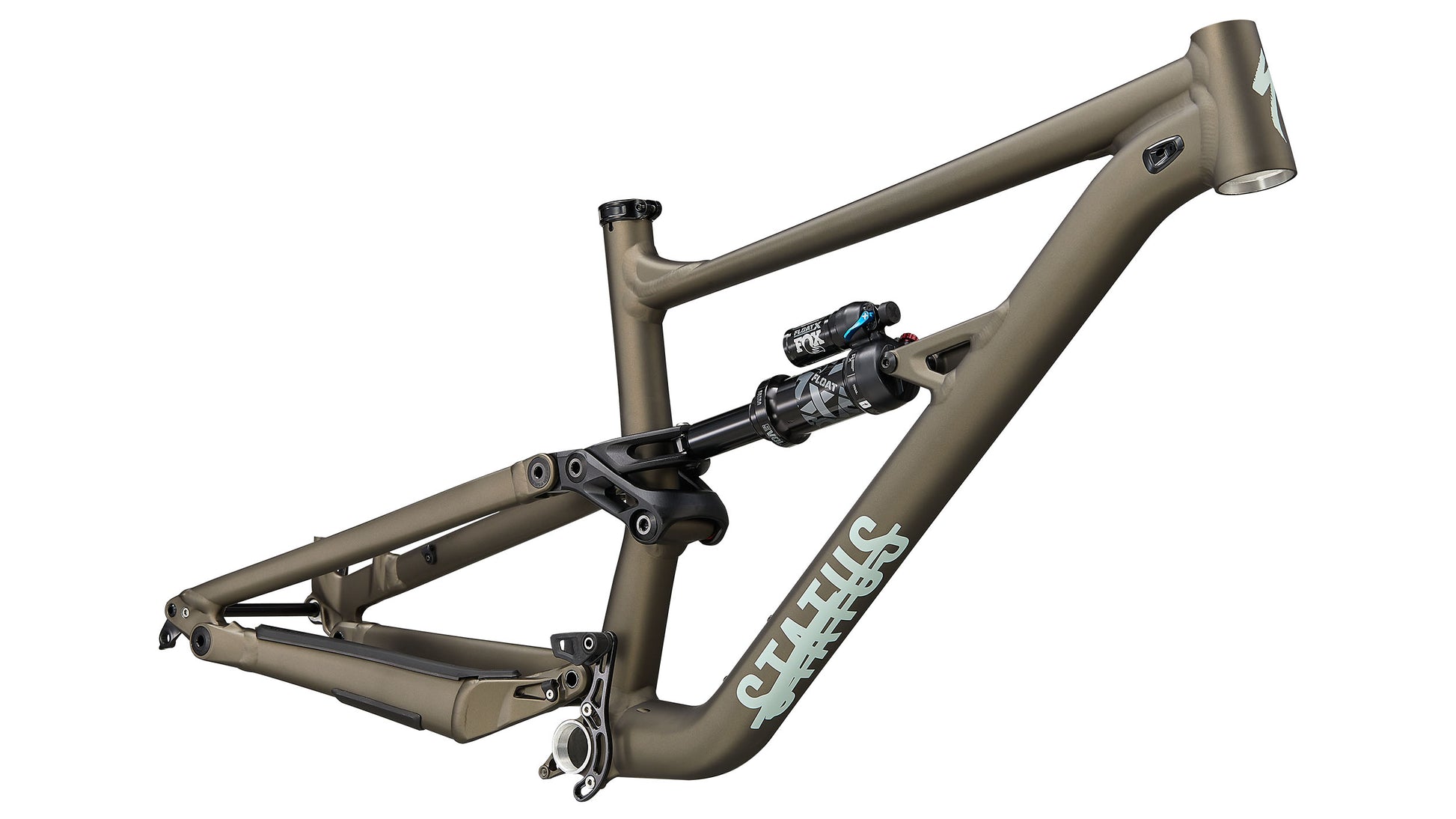

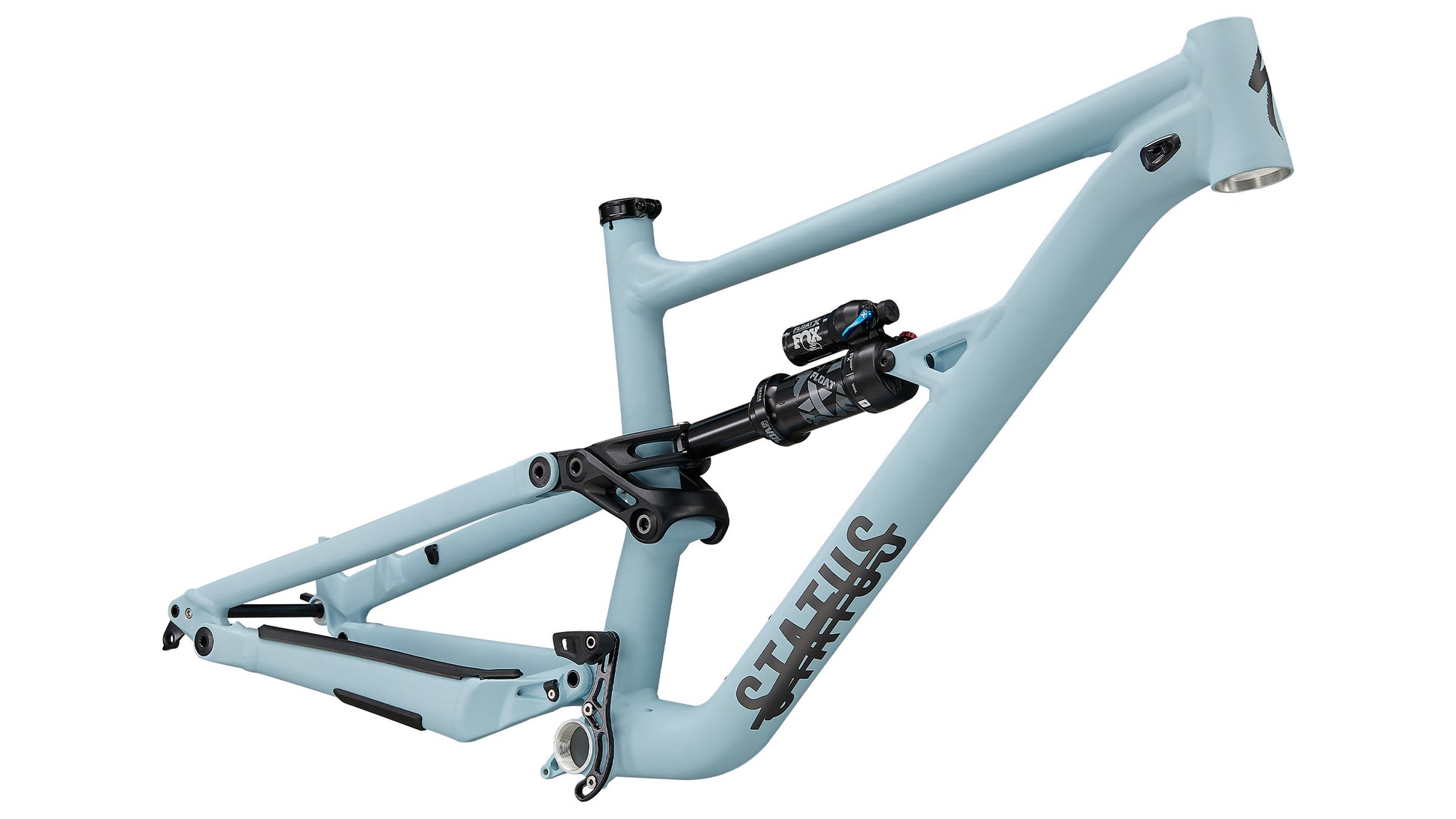

Status 160 Frameset

It’s dealer’s choice with the Status 160 frameset, but whatever the build, a good time is more than a safe bet. But that said, the odds of you being able to keep your poker face after getting a taste of the Status 160’s playful Mixed Wheel-Size Trail Geometry are awfully tall.

  • With an eye on keeping maintenance to a minimum, oversized pivot bearings increase durability while a common size across all pivots makes service and replacement a breeze when that day does come around. A threaded SRAM DUB bottom bracket continues on the theme with worry-free performance.
  • The active, planted feel of the Status’s FSR suspension design and Fox’s FLOAT X Performance rear shock equipped with our Rx Trail Tune make for perfect friends—and plenty of benefits. Calling on a twin-tube design that allows for two separate oil pathways during compression and rebound, the FLOAT X Performance rear shock provides plenty of support for big hits while still offering enough buttery small-bump sensitivity to keep you fresh for when the style points really count.
View full details

Technical Specifications

FRAMESET

Frame

M5 alloy chassis and rear-end, Mixed wheel Trail Geometry, threaded BB,12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 160mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, 230x60mm

* Specifications are subject to change without notice

Geometry

 S1S2S3S4S5
Stack (low BB)610mm614mm623mm632mm641mm
Reach (low BB)417mm437mm462mm487mm512mm
Head-Tube Length95mm100mm110mm120mm130mm
Head-Tube Angle (low BB)63.2°63.2°63.2°63.2°63.2°
Head-Tube Angle63.7°63.7°63.7°63.7°63.7°
B-B Height (low BB)338mm338mm338mm338mm338mm
B-B Height347mm347mm347mm347mm347mm
B-B Drop (low BB)17.5mm17.5mm17.5mm17.5mm17.5mm
B-B Drop8.5mm8.5mm8.5mm8.5mm8.5mm
Trail (low BB)141mm141mm141mm141mm141mm
Fork Length (full)567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front-Center (low BB)756mm778mm808mm837mm867mm
Chain-Stay Length426mm426mm426mm426mm426mm
Wheelbase1181mm1203mm1233mm1264mm1292mm
Seat-Tube Length400mm400mm420mm440mm465mm
Seat-Tube Angle76°76°76°76°76°

Size Guide
