SPECIALIZED

STATUS 2 170

SKU:93723-7701

R 75,000.00

~~R 75,000.00~~ R 75,000.00

Sale Sold out

Taxes included.

Color Satin Harvest Gold Tint / Obsidian / Dune White Satin Obsidian / Dune White

Size S1 S2 S3 S4 S5

Quantity

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

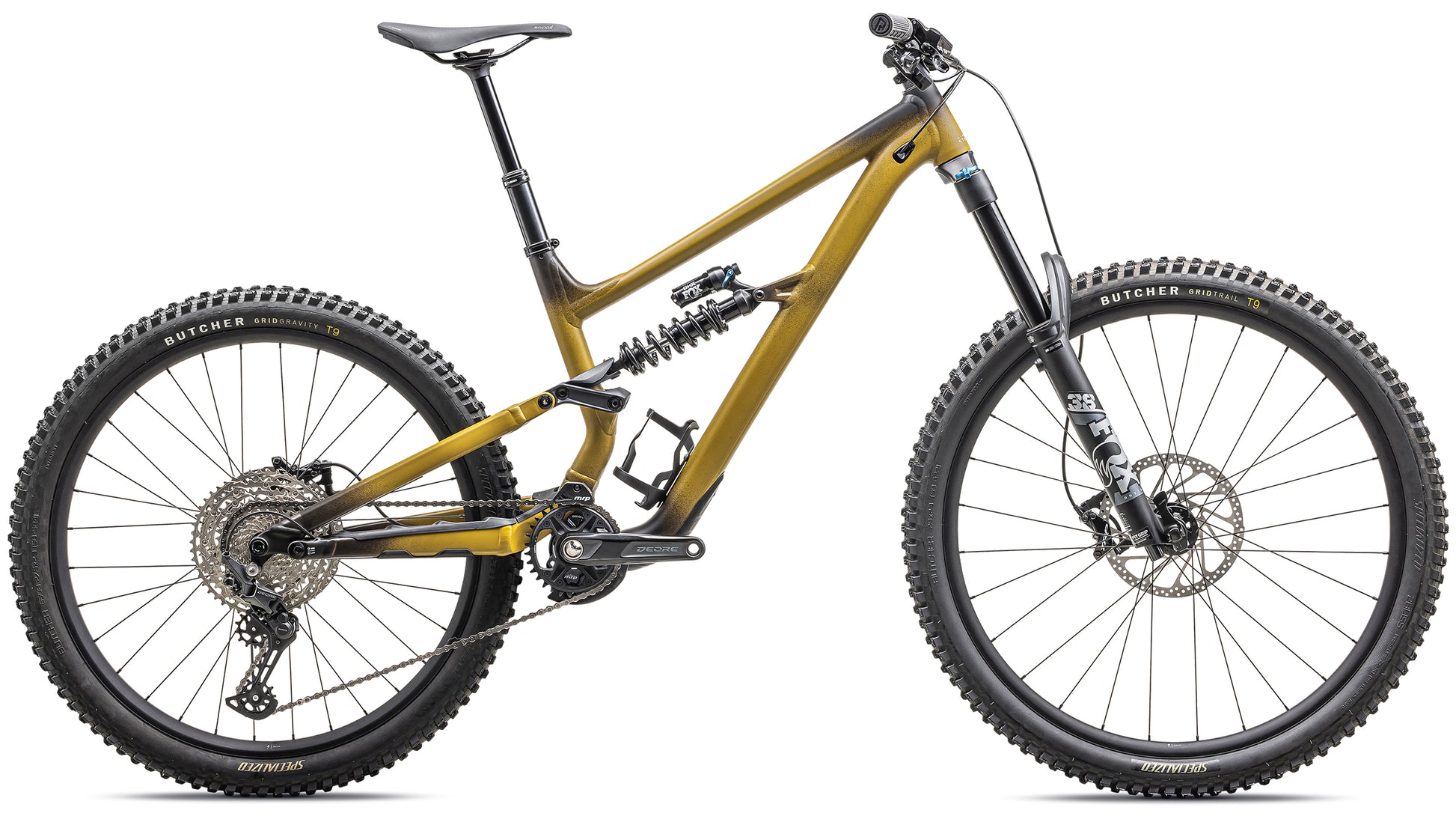

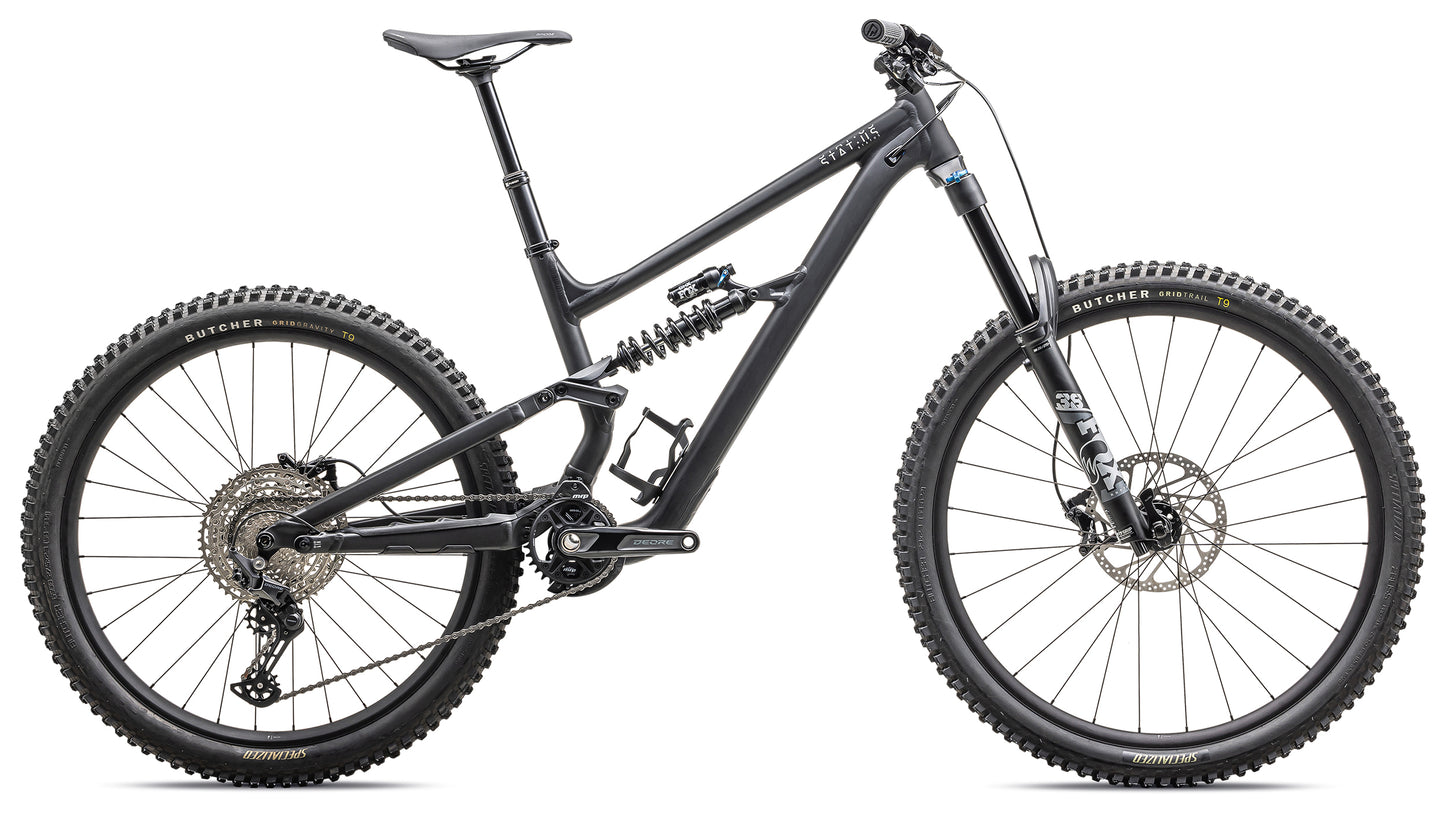

STATUS 2 170

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

100% Redesigned durable alloy chassis
New, more durable alloy rims
Horst Link geometry adjust flip chip
Updated geometry for more usability
Curated parts spec for your desired ride experience

View full details

Technical Specifications

FRAMESET

Frame

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel

Seat Binder

Alloy, 38.6mm

SUSPENSION

Fork

FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel

Rear Shock

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Bridge Comp, Hollow Cr-mo rails, 143mm

Grips

Deity Knuckleduster

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width

BRAKES

Front Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

Rear Brake

TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm

DRIVETRAIN

Crankset

Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Chain

Shimano Deore M6100, 12spd

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

WHEELS & TIRES

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Tire

Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Spokes

DT Swiss Industry

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta valve

PRODUCT DETAILS

Product ID

221254

WEIGHT

Weight

15.56 kg (34 lb, 4.9 oz)

Weight Size

Geometry

	S1	S2	S3	S4	S5
Crank Length	165	165	165	165	170
Handlebar Width	780	800	800	800	800
Stem Length	40	40	40	40	40
Saddle Width	143	143	143	143	143
Seatpost Length	125	150	170	170	190
Stack (low)	620	625	634	643	652
Stack (high)	616	620	629	638	647
Reach (low)	420	445	470	495	520
Reach (high)	426	451	476	501	526
Headtube Length	95	100	110	120	130
Headtube Angle (low)	63.5	63.5	63.5	63.5	63.5
Headtube Angle (high)	64	64	64	64	64
BB Height (low)	342	342	342	342	342
BB Height (high)	350	350	350	350	350
BB Drop (low)	34	34	34	34	34
BB Drop (high)	26	26	26	26	26
Trail (low)	138	138	138	138	138
Trail (high)	133	133	133	133	133
Fork Length (full)	581	581	581	581	581
Fork Rake/Offset	44	44	44	44	44
Front Center	762	789	819	848	878
Chainstay Length (low)	432	432	432	437	437
Chainstay Length (high)	436	436	436	441	441
Wheelbase	1193	1221	1250	1285	1314
Top-tube Length (horizontal)	554	595	635	676	716
Bike Standover Height	735	735	742	748	752
Seat Tube Length	390	400	420	440	465
Seat Tube Angle (low)	77	77	77	77	77
Seat Tube Angle (high)	77.6	77.6	77.6	77.6	77.6
