SPECIALIZED

STATUS 2 170 Frameset

STATUS 2 170 Frameset

SKU:73723-7605

Regular price R 45,000.00
Sale price R 45,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

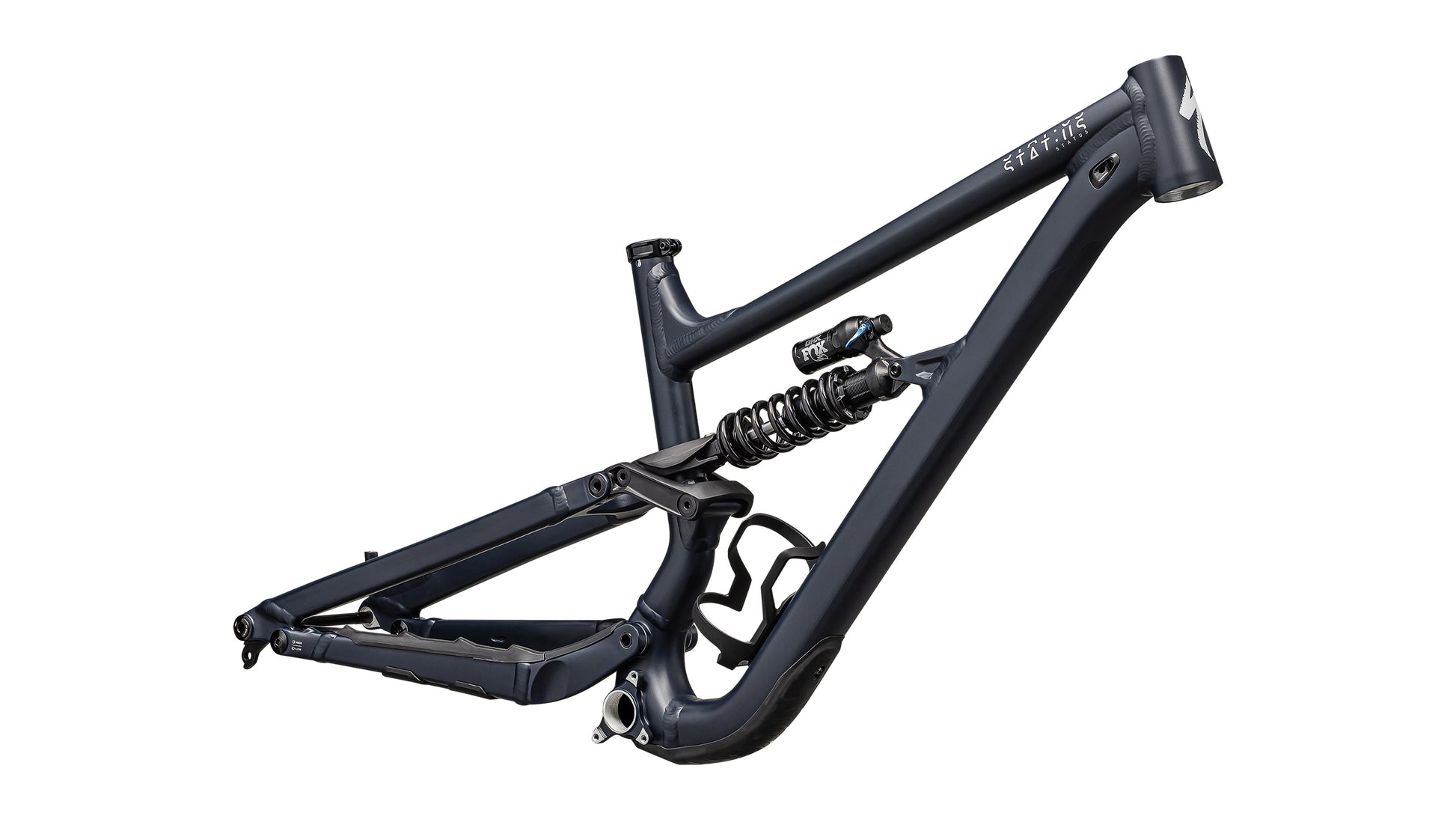

STATUS 2 170 Frameset

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however, or wherever you ride.

Whether you're on the trails, at the bike park, on the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before arriving at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The shock's characteristics are designed to complement the kinematics of the new STATUS 2 perfectly.

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow you to finely tune the frame’s geometry to your desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
View full details

Technical Specifications

Frameset

Frame

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230x62.5mm

Product Details

Product ID

221255

Weight

Weight

4.77kg (10 lb, 8.3 oz)

Weight Size

S3

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Geometry

 S1S2S3S4S5
Crank Length165165165165170
Handlebar Width780800800800800
Stem Length4040404040
Saddle Width143143143143143
Seatpost Length125150170170190
Stack (low)620625634643652
Stack (high)616620629638647
Reach (low)420445470495520
Reach (high)426451476501526
Headtube Length95100110120130
Headtube Angle (low)63.563.563.563.563.5
Headtube Angle (high)6464646464
BB Height (low)342342342342342
BB Height (high)350350350350350
BB Drop (low)3434343434
BB Drop (high)2626262626
Trail (low)138138138138138
Trail (high)133133133133133
Fork Length (full)581581581581581
Fork Rake/Offset4444444444
Front Center762789819848878
Chainstay Length (low)432432432437437
Chainstay Length (high)436436436441441
Wheelbase11931221125012851314
Top-tube Length (horizontal)554595635676716
Bike Standover Height735735742748752
Seat Tube Length390400420440465
Seat Tube Angle (low)7777777777
Seat Tube Angle (high)77.677.677.677.677.6



Size Guide
