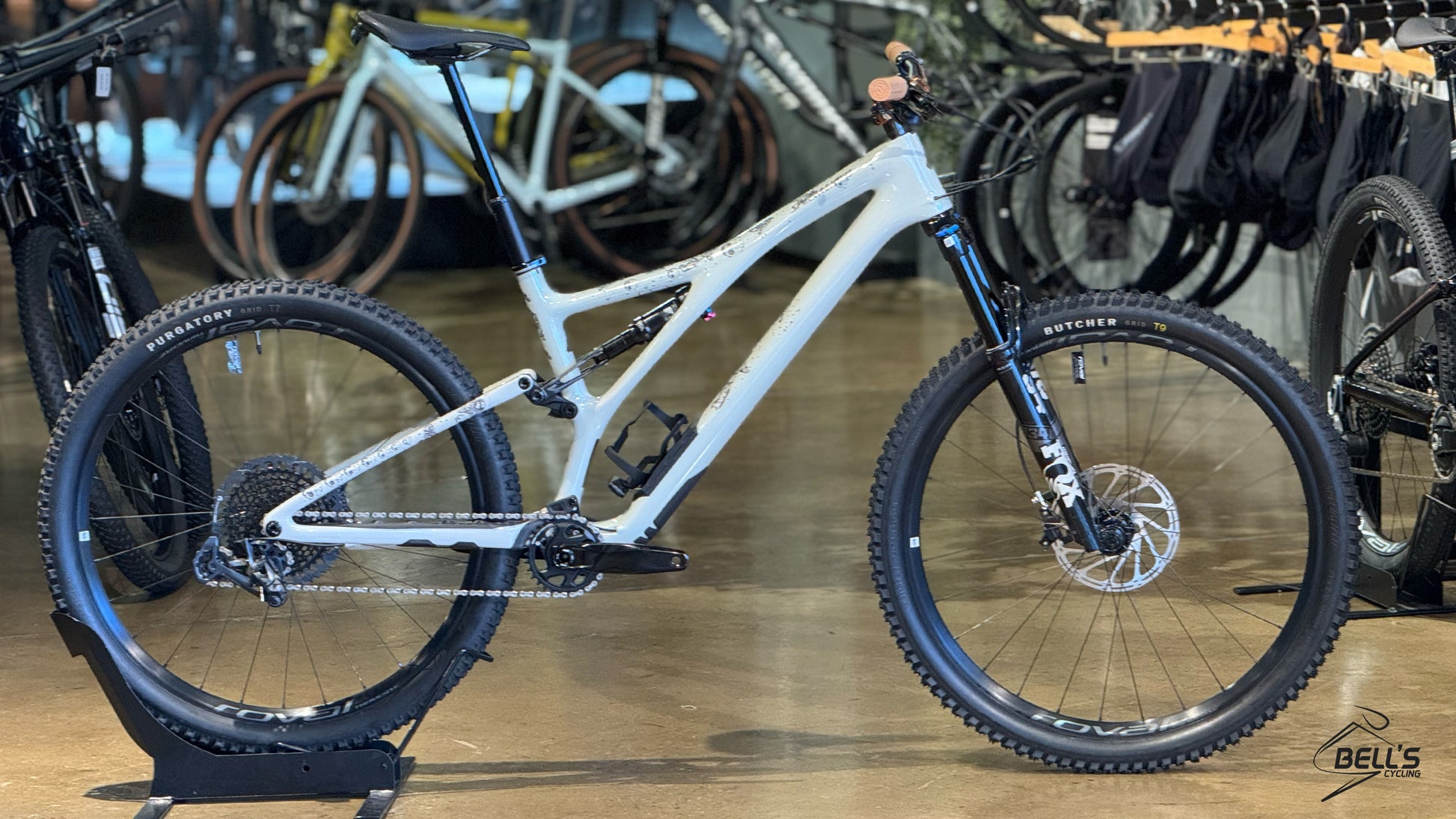

Stumpjumper Expert Demo S5

Stumpjumper Expert Demo S5

93322-3005W

R 99,000.00
R 135,000.00 R 99,000.00
Sale Sold out
Taxes included.
Color
Size

CLICK HERE TO VIEW PICK UP IN STORE AVAILABILITY

Bell's Cycling

Shop1 A Riverside Junction, R40,Riverside, Nelspruit, 1200

Trading Hours: Mon - Fri: 08:00am to 17:00pm | Sat: 09:00am to 14:00pm | Sun: Closed

Stumpjumper Expert

With the all-new Stumpjumper Expert, we've bottled up that "new bike day" feeling and put it into a radical new trail bike so agile, so lively, so in-tune with the trail, that it feels like an extension of your body. Levitate up the climbs. Decimate the descents. The Stumpjumper Expert is going to make you rethink how a trail bike should ride.

  • THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
  • PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
  • RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
  • SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
View full details

Technical Specifications

Condition

Brand New

Size

XL

Model Year

2022

Wheel Size

29"

Frame Material

Carbon

Riding Style

Trail/Enduro



Bike is mint condition. Like new. Was ridden once



Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, 130mm of travel

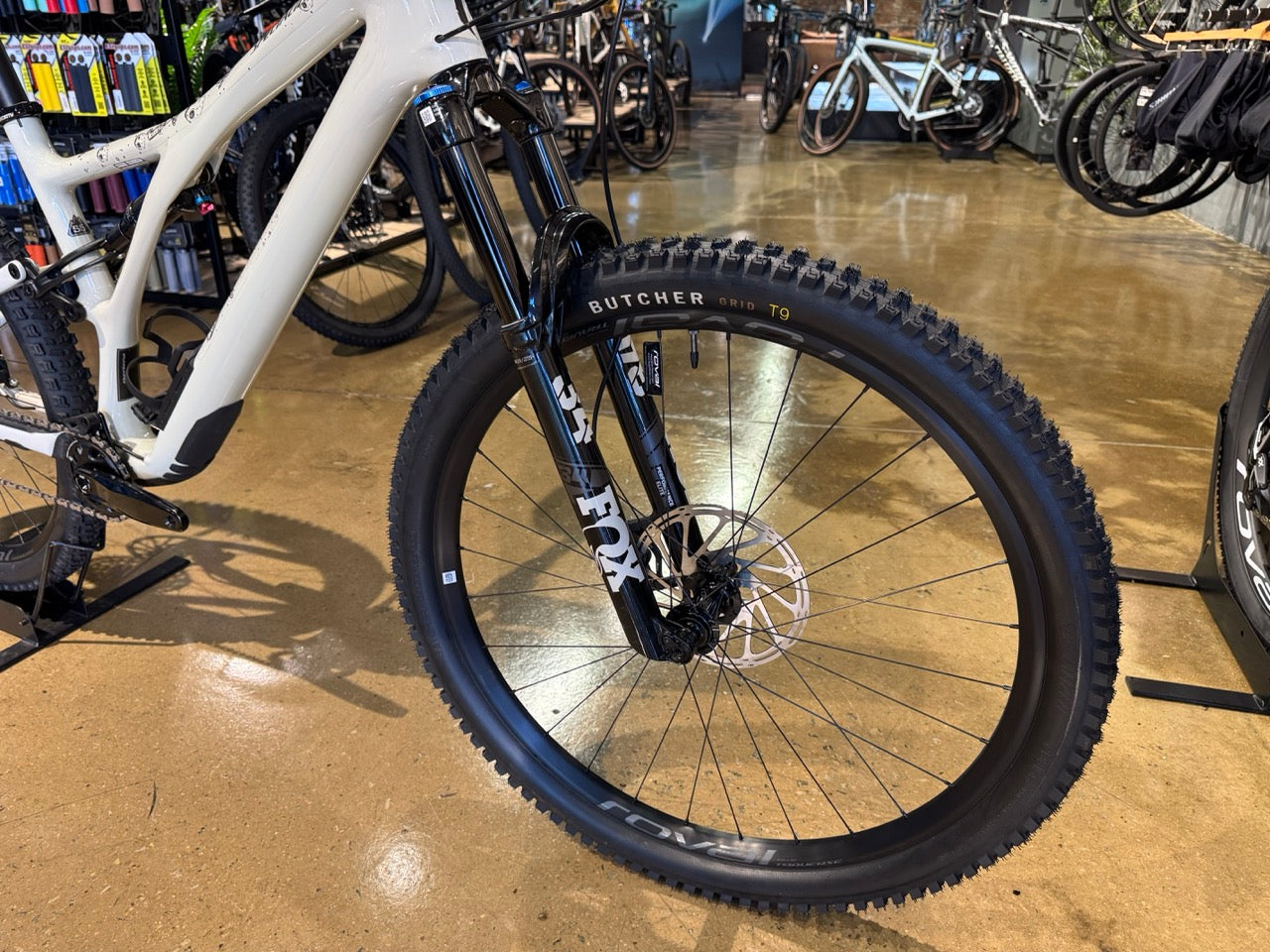

Fork

FOX FLOAT 34 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 140mm of travel

Rear Shock

FOX FLOAT DPS Performance Elite, Rx Trail Tune, EVOL Air sleeve, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

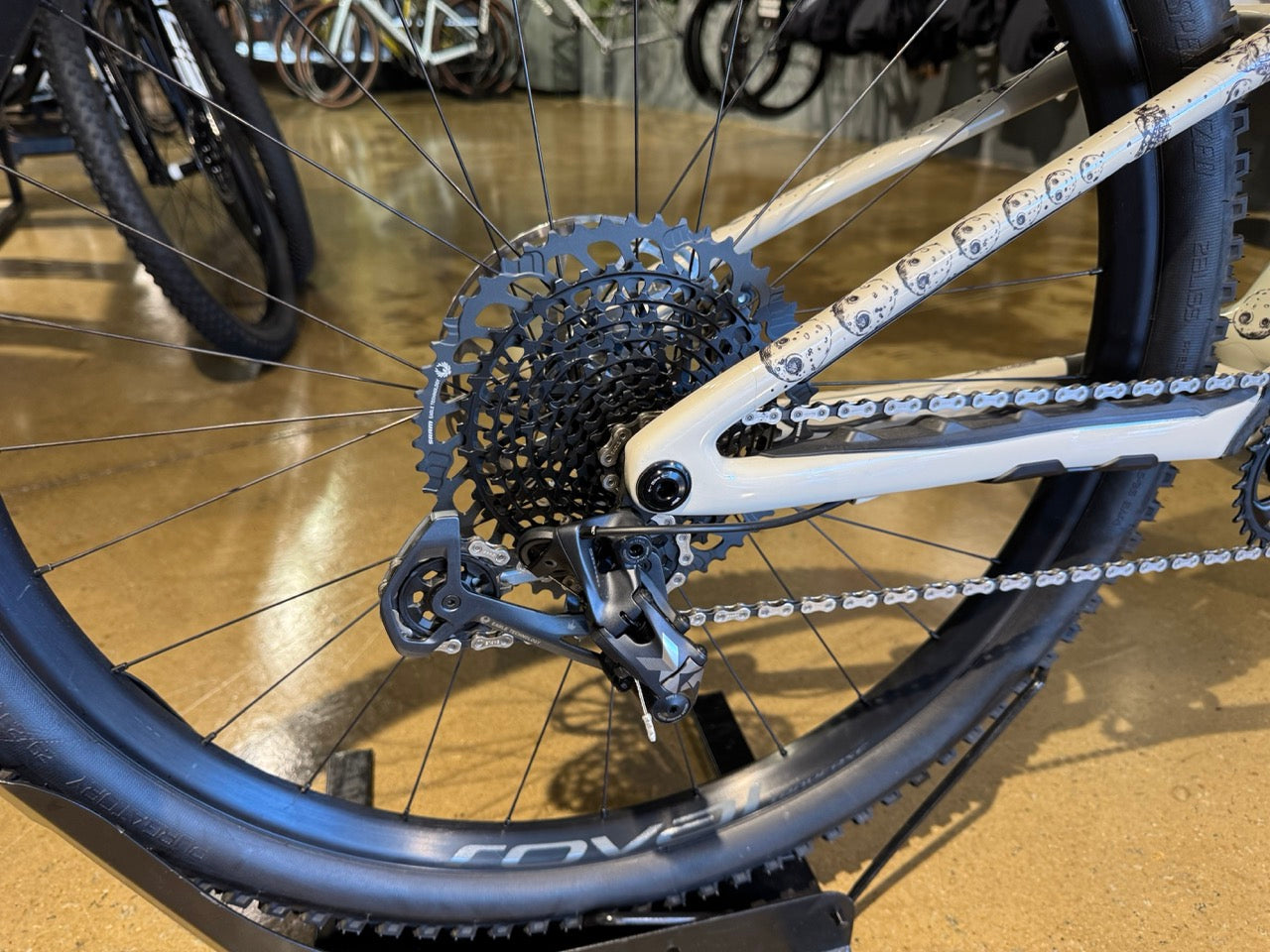

Rear Derailleur

Sram X01 Eagle, 12-speed

Shifters

SRAM X01 Eagle, trigger, 12-speed

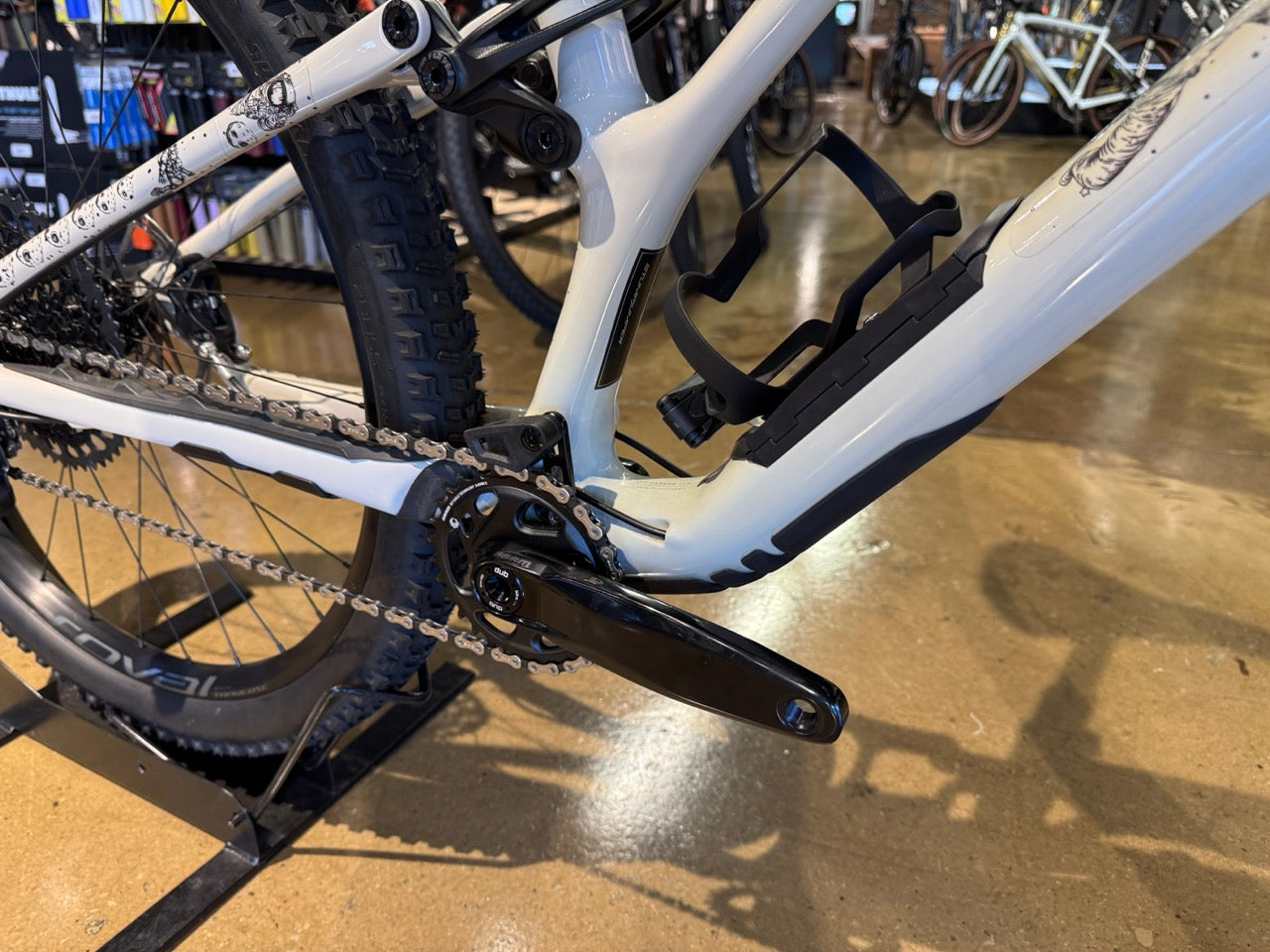

Crankset

SRAM Descendant 7K, DUB S2-S5: 170mm,

Cassette

SRAM XG-1295 Eagle, 10-52t

Chain

SRAM GX Eagle, 12-speed

Brakes

SRAM G2 RSC, 4-piston caliper, hydraulic disc, 200mm

Wheels

Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready

Tyres

Butcher and Purgatory Grid

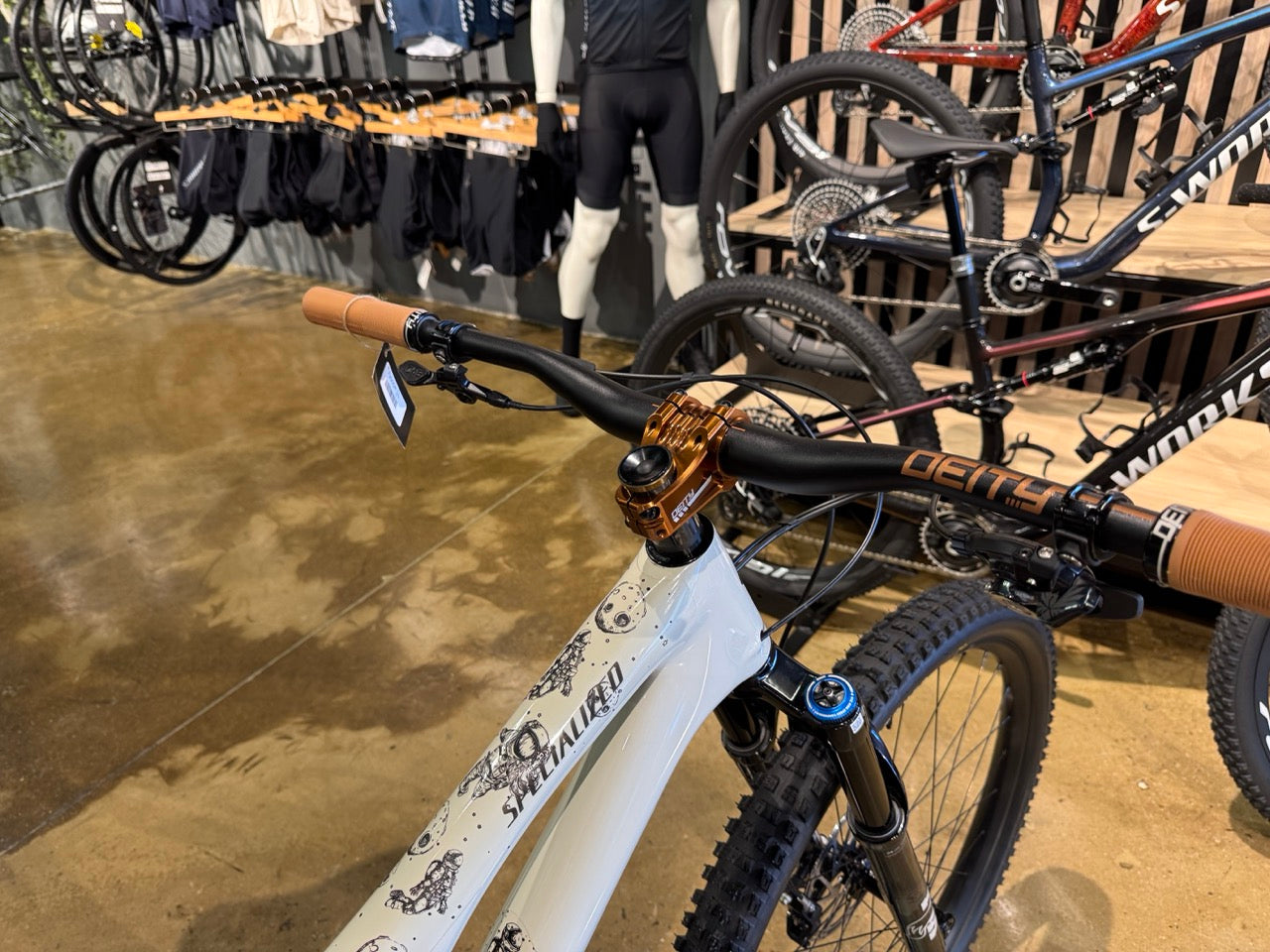

Stem

Deity Copperhead Stem

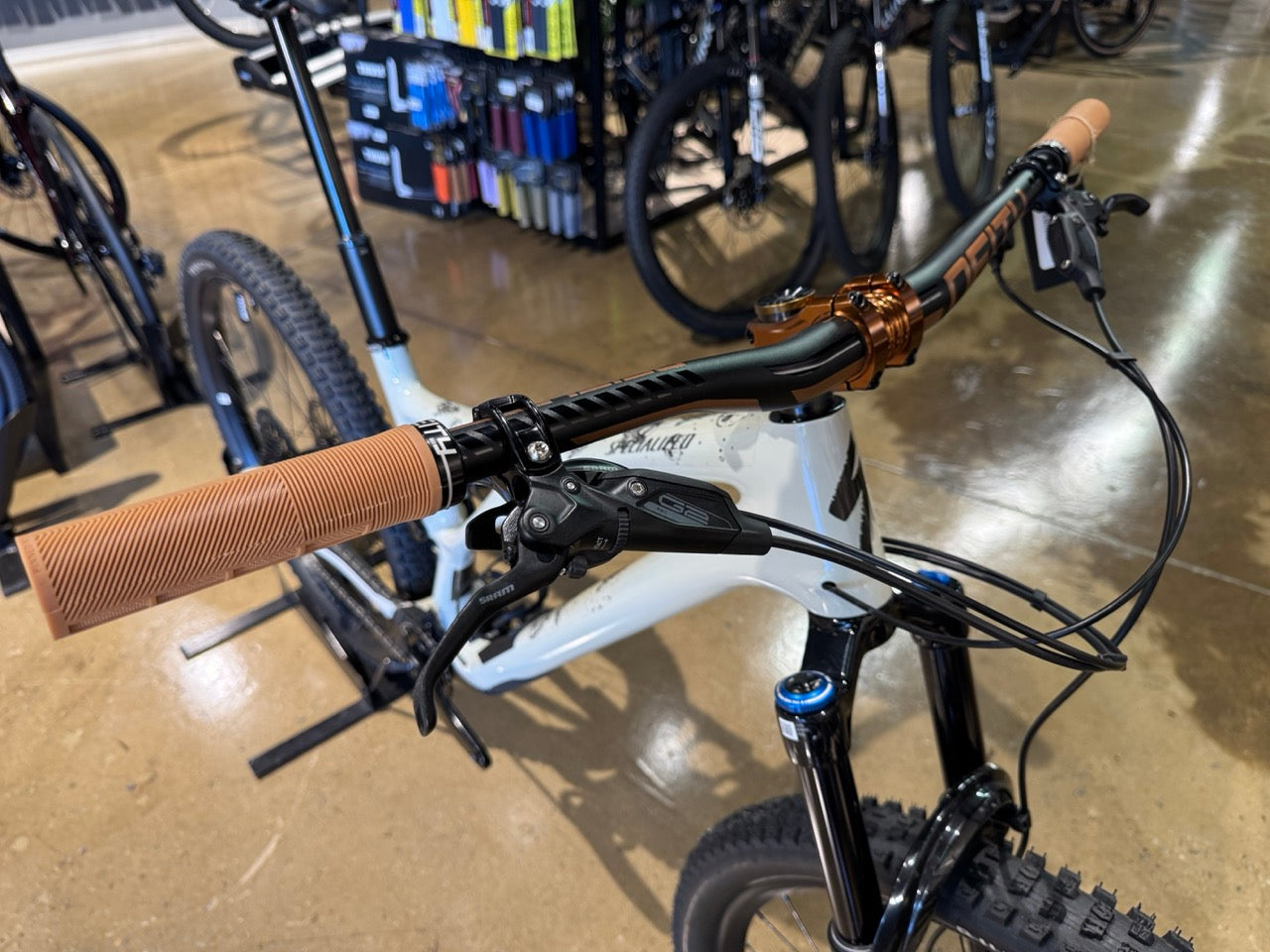

Handlebar

Deity Riser bar

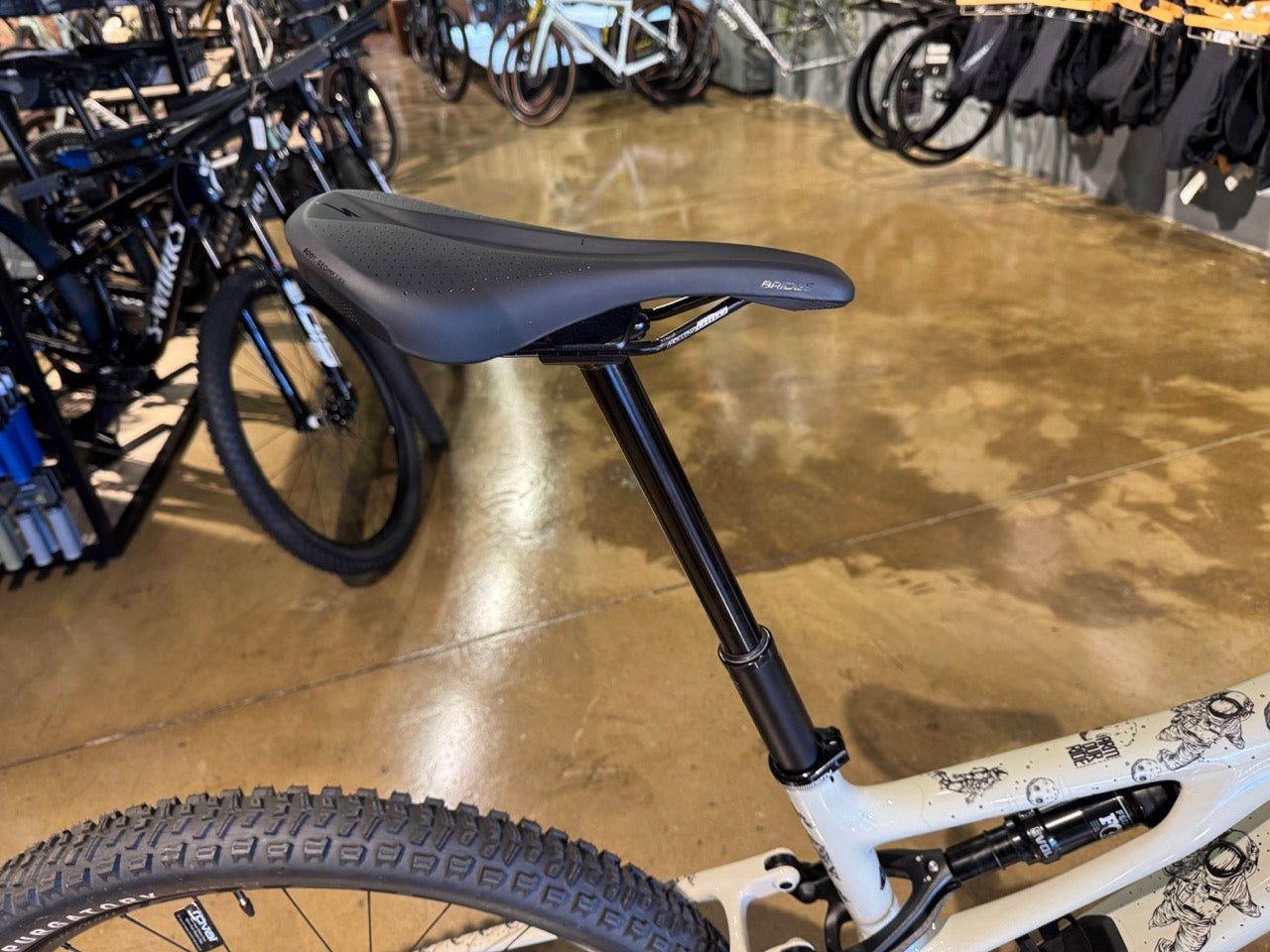

Seatpost

OneUp, Dropper Post-V2, MMX lever, 34.9, 210mm

Saddle

Bridge Comp

Geometry

 S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length120mm150mm150mm180mm210mm210mm
Stack (Low BB)614mm613mm622mm632mm641mm650mm
Stack (High BB)610mm609mm618mm627mm636mm646mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)415mm435mm455mm480mm505mm535mm
Headtube Length95mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)328mm333mm333mm333mm333mm333mm
BB Height (High BB)335mm340mm340mm340mm340mm340mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)123mm123mm123mm123mm123mm123mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center724mm746mm770mm800mm829mm863mm
Chainstay Length432mm432mm432mm432mm442mm442mm
Wheelbase1152mm1175mm1200mm1228mm1268mm1302mm
Top-tube Length (horizontal)563mm583mm605mm632mm660mm692mm
Bike Standover Height730mm734mm744mm749mm757mm757mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)76°76°76°76°76°76°
Seat Tube Angle (High BB)76.5°76.5°76.5°76.5°76.5°76.5°
Max Seatpost Insertion220mm220mm240mm260mm280mm300mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
